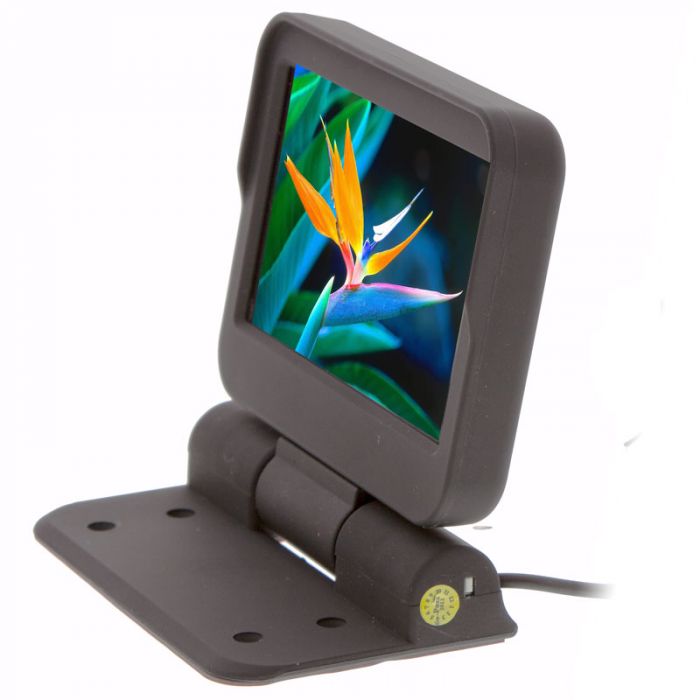

Vizualogic 07-6004-000 4.3 inch universal dash mount motorized pop-up monitor

Vizualogic 07-6004-000 4.3 inch universal dash mount motorized pop-up monitor

Vizualogic 07-6004-000  4.3 inch universal dash mount motorized pop-up monitor

More Views

Item sku:58531

Overall Rating 4 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Vizualogic 07-6004-000 and 90-6004 with camera Product Highlights

  • 4.3 inch motorized monitor
  • Designed to be mounted on the top of the dash
  • Surface mount camera
  • Programmable angle adjustment

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!


Unit includes:Motorized pop-up monitor, Wiring harness, and Instruction manual

Vizualogic 07-6004-000 4.3 inch universal dash mount motorized pop-up monitor
  • Monitor automatically flips up when the vehicle is placed in reverse
  • Includes surface mount back up camera
  • 4.3 inch LCD Monitor
  • Resolution: 1200 x 680
  • Single RCA video input
  • Compatible with all cameras
  • Rubberized finish for seamless look in your vehicle
  • Mounting base comes complete with 3M brand automotive grade mounting tape
  • Programmable opening angle
  • Selectable image flipping for dash-up or flip-down mounting
  • Trigger wire for motorization
  • Voltage: 9Vdc - 16Vdc
  • Dimensions: 4 3/8" (W) x 4 1/4" (D) x 3/4" (H)

Technical Specifications

Manufacturer Vizualogic
Part Number 07-6004-000 and 90-6004 with camera
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness No
Swivel Screen Yes
Touchscreen No
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No
Audio Video inputs 1 Video Input
Audio Video Outputs No
Composite video input No
Front mounted auxiliary input No
USB input No
SD Card input No
Housing material No
Slide track on back No
Mounting thread for stand mount No
Stand Mount included No
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage No
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control No
Monitor Color Black
Color Black
Warranty 1 Year
UPC Code No

Customer Reviews

So far so good
Review by
Install (5 star for easy)
I've yet to install the camera / monitor but so far so good.

When I first recieved the "kit", the camera was missing. It took two calls to a very nice customer service rep who told me he would contact their supplier to find out what happened. After the second call, I was informed that the camera was on the way and I'd have it the next day. Got it the next day as promised. I just have not had a chance to install it yet.

The instructions are a bit sketchy but, having previously installed a similar unit on my motorhome it is easy.

(Posted on 2/20/2013)

Write Your Own Review

You're reviewing: Vizualogic 07-6004-000 4.3 inch universal dash mount motorized pop-up monitor

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Jean Langlois, Monday, November 30, 2015


Description is a bit confusing. Does the unit include backup camera?


  • Posted by Salvador Diaz on Friday, October 11, 2013

    Yes, this monitor will include a small surface mount camera.

Posted by James, Wednesday, June 26, 2013


I would like to sell your product to our customers and I would like to know, does your display activate when a video signal is received. I wish to use a wireless camera so when the wireless camera is activated by the back up light on the vehicle, the video signal wil be received by the received connected to your display and provide a video signal. Will your display activate when the video signal from our wireless camera is received by your display or do you require an additional wire to turn the system on that must be run to the back of the vehicle? Please send a product User Manual and installation wiring so I may learn more about the product.


  • Posted by Store Owner on Wednesday, June 26, 2013

    This item does not have video sense. It has a seperate wire that when positive 12 volts is applied the monitor will set in motion. You will need to trigger this monitor some how. There are only four connections on this monitor:

    Red wire = Positive power

    Black wire= Ground

    Blue or Green trigger wire = Positive power to open monitor

    Yellow RCA cable = Video input
