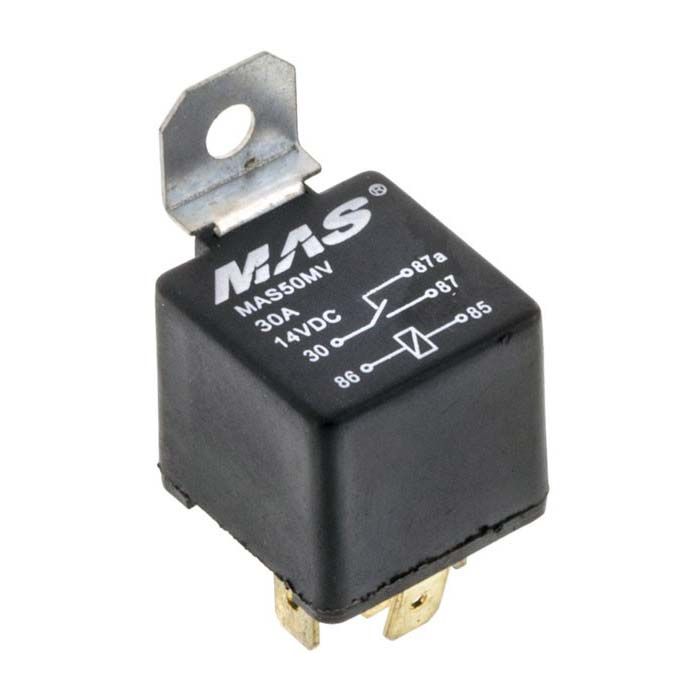

MAS MAS50MV Imported 12 VDC Automotive 5-Pin Relay SPDT 30/50A Removable Metal tab

$2.99
In stock
SKU
MAS50MV-1

Key Features

  • Imported bosch style relay
  • Removable metal tab is included
  • 30 amp / 50 amp rated contacts
  • SPDT - Single pole dual throw
Unit includes: 12 volt relay and removable metal tab

MAS 12 VDC Automotive 5-Pin Relay SPDT 30/50A Removable Metal tab

This imported bosch style 12V, 20A/30A relay is popular in automotive sound and security installations. It easily switches 20 amps of current and peaks of 30 amps with minimal draw on the coil of 151 milliamps @ 12Vdc. It features a removable metal tab with plastic housing. Single Pole, Dual throw for flexible installations and multiple uses.

    Features:
  • Imported bosch style relay
  • Removable metal tab is included
  • 30 amp / 50 amp rated contacts
  • SPDT - Singlel pole dual throw
  • 14 Vdc rated coil with minimum 8 volt to trigger
  • Power consumption @ 12Vdc 151 mA
  • Conventional 87, 87a, 30, 86, and 85 pin locations
  • Compatible with most insulated and non insulated terminals and relay sockets
  • Dimensions 1 1/8" (w) x 1 1/4" (D) x 1-3/8" (H) with terminals and without metal tab
    Pin configuration:
  • Pin 86 - Coil
  • Pin 85 - Coil
  • Pin 30 - Common Pin
  • Pin 87a - Normally closed pin
  • Pin 87 - Normally open pin
More Information
Manufacturer Micro Accessories
Part Number MAS50MV
Operation Voltage 8-15 Volt DC
Relay type 5 Pin relay
Current capacity 30 Amp / 50 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type Removable Metal Tab
Waterproof ingress protection None
Warranty 1 Year
California Proposition 65
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:MAS MAS50MV Imported 12 VDC Automotive 5-Pin Relay SPDT 30/50A Removable Metal tab
Your Rating
Customer Questions
What size are the quick connect terminals on this relay?
These use standard 0.25 inch female disconnects.
