Beuler 5083W 12 VDC Automotive 5-Pin Relay SPDT 40/60A without tab and Negative spike protection

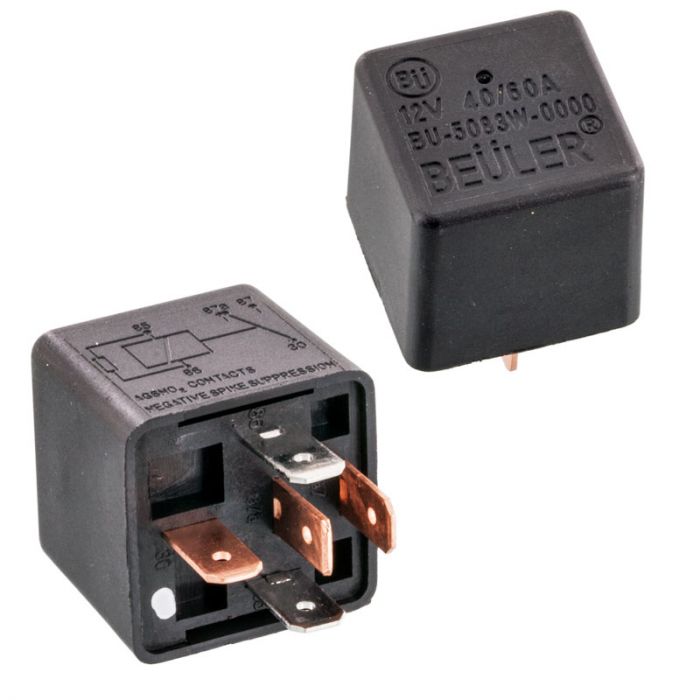

Beuler 5083W 12 VDC Automotive 5-Pin Relay SPDT 40/60A without tab and Negative spike protection

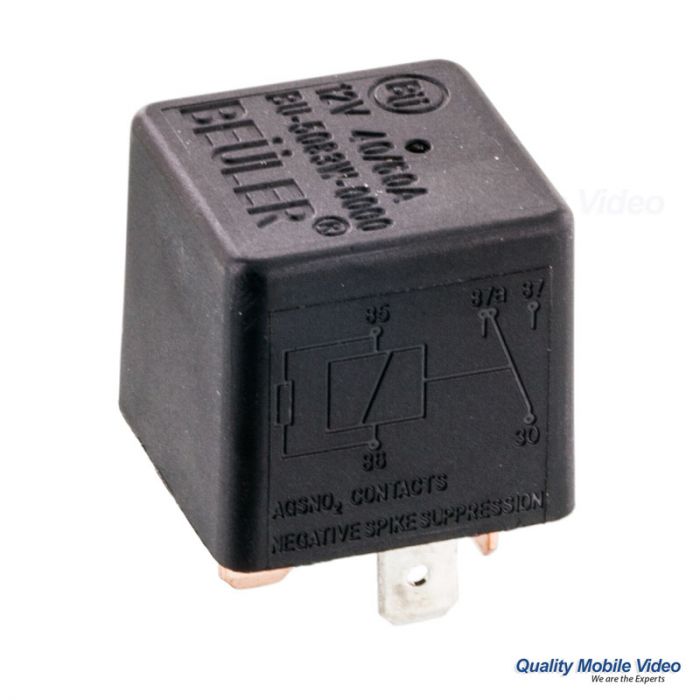

Beuler 5083W 12 VDC Automotive 5-Pin Relay - Pin diagram

More Views

Beuler
Free Shipping on orders $99+

Overall Rating 5 (Based on 1 reviews)

Beuler 5083W Product Highlights

  • Durable design built by Beuler automotive electronics
  • No mounting tab
  • Negative spike protection, protects sensitive electronics
  • 40 amp / 60 amp rated contacts
  • SPDT - Single pole dual throw
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: 12 volt relay with negative spike protection

Beuler 5083W 12 VDC Automotive 5-Pin Relay SPDT 40/60A without tab and Negative spike protection

The Beuler 5083W 12V, 40A/60A relay is the most popular relay in automotive sound and security installations. It easily switches 40 amps of current and peaks of 60 amps with minimal draw on the coil of 147 milliamps @ 12Vdc. It features no mounting tab with plastic housing making it very easy to fit behind dashboards or kick panels. The built in negative spike protection make the relay perfect for use with sensitive electronics such as FET's or transistors that could be potentially damaged for voltage spikes. Single Pole, Dual throw for flexible installations and multiple uses.

    Features:
  • Durable design built by Beuler automotive electronics
  • Negative spike protection, protects sensitive transistors when the coil is dis-engaged and prevents momentary reverse polarity damage
  • 40 amp / 60 amp rated contacts
  • SPDT - Single pole dual throw
  • No mounting tab
  • 12 Vdc rated coil with minimum 8 volt to trigger
  • Power consumption @ 12Vdc 147 mA
  • Conventional 87, 87a, 30, 86, and 85 pin locations
  • Compatible with most insulated and non insulated terminals and relay sockets
  • Dimensions 1 1/8" (w) x 1 1/4" (D) x 2" (H) with terminals and tab
    Pin configuration:
  • Pin 86 - Coil
  • Pin 85 - Coil
  • Pin 30 - Common Pin
  • Pin 87a - Normally closed pin
  • Pin 87 - Normally open pin

Technical Specifications

Manufacturer Beuler
Part Number 5083W
Operation Voltage 8 - 15 Volt DC
Relay type 5 Pin relay
Current capacity 30 Amp / 40 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type No Tab
Waterproof ingress protection None
Warranty 1 Year
UPC Code No

Customer Reviews

Needed the module - couldn't source it locally
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I needed to replace this unit quickly. Both the relay and the socket arrived quickly and the price was good. Thanks (Posted on 10/21/2017)
