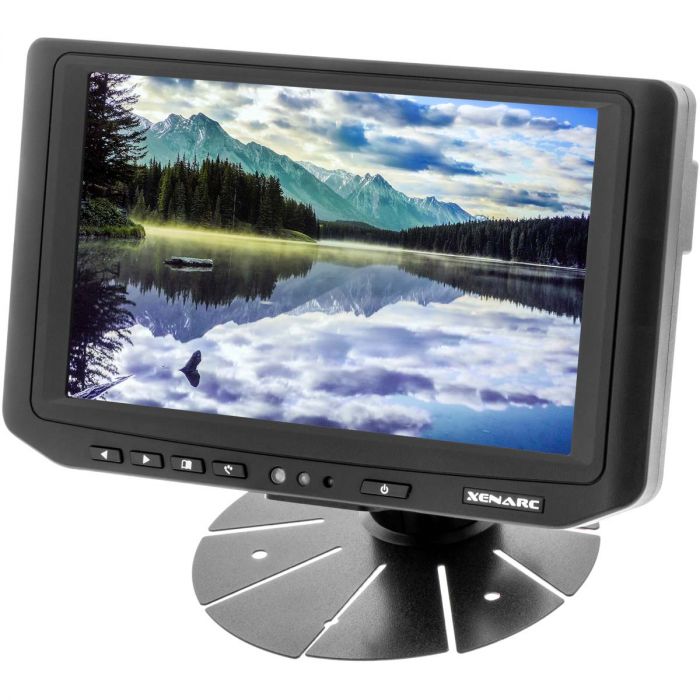

Xenarc 700TSH 7 inch Widescreen HDMI and DVI Touchscreen Monitor

Xenarc 700TSH 7 inch Widescreen HDMI and DVI Touchscreen Monitor

Xenarc 700TSH 7" HDMI and DVI Touchscreen Monitor

More Views

Item sku:700TSH
Xenarc

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Xenarc 700TSH Product Highlights

  • For In-Car Computing, PC, Server, GPS, and various VGA Use
  • High Bright LCD Panel with LED Backlight
  • 5-wire resistive Touch Screen (USB)
  • DVI input
  • HDMI input
  • 2 audio video RCA inputs

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Monitor, Wiring Harness, Connection Cable, Fan Mount, AC Adapter, Monitor Stand , 12V Cigarette Lighter Car Adaptor and Remote Control

Xenarc 700TSH 7 inch Widescreen HDMI and DVI Touchscreen Monitor
    Features:
  • For In-Car Computing, PC, Server, GPS, and various VGA, HDMI, and DVI Use
  • High Bright LCD Panel with LED Backlight
  • 5-wire resistive Touch Screen (USB)
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1, VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI adaptor
  • Supports HDCP
  • Audio Input x 3 / Built-in Speaker
  • NTSC / PAL Multi-System
  • 16x9 Aspect Ratio
  • High Resolution Display
  • Auto detects 800x480 resolution
  • Upgraded High-Brightness LED Backlight
  • Chip Monolithic Ceramic Capacitors for improved durability
  • Automatic backlight level adjustment through built-in ambient light sensor
  • Pixelworks High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • 16:9 / 4:3 Scaler settings
  • Last Input memory
  • Last Power setting memory
  • IR Remote Control
  • Auto power-on upon signal detection
  • Automatic display adjustment
  • On Screen Display Control
  • Mirror Image Flip
  • Vertical Image Flip
  • Function to disable front button(s)
  • Function to disable On Screen Text
  • AV2 Auto Switching for backup camera
  • Copper Stand: 360° / Height Adjustment
  • VESA 50mm mounting holes
  • 26-Pin heavy-duty connector
  • Anti Glare Coating
  • Supports 10V DC ~ 30V DC
  • "E" Mark Certified for Automotive use
    Specification:
  • Screen Size: Diagonal 7" (16:9)
  • Physical Resolution: 800 (H) x 480 (V) WVGA
  • Supported PC Resolution: 640 x 480 ~ 1920 x 1080
  • Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080p
  • Dot Resolution: 2400 x 480 = 1,152,000 (dots)
  • Brightness: 500 cd/m²
  • Contrast Ratio: 400:1
  • Viewing Angle: 140° Horizontal, 120° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 10V ~ 30V
  • Power Supply: DC 12V
  • Power Consumption: < 10W
  • Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
  • Dimension (mm): 196W x 121.5H x 35D
  • Weight (lb): 1.54
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • Supports HDCP
  • 24 Month Warranty
  • 30 days No dead Pixel Guarantee

Technical Specifications

Manufacturer Xenarc
Part Number 700TSH
LCD Screen Size No
Native Screen Resolution No
Widescreen Display No
LCD back light type No
LCD Screen Brightness No
Swivel Screen No
Touchscreen No
NTSC/PAL No
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No
Audio Video inputs No
Audio Video Outputs No
Composite video input No
Front mounted auxiliary input No
USB input No
SD Card input No
Housing material No
Slide track on back No
Mounting thread for stand mount No
Stand Mount included No
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage No
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control No
Monitor Color Black
Color No
Warranty No
UPC Code No
