DISCONTINUED - Metra 71-1781 TurboWires Wiring Harness for 1986 - 1989 Mazda vehicles
$11.99
Out of stock
SKU
71-1781
- Plugs into OEM Radio and designed as a replacement to the vehicle factory connectors when cut off
- Power and 4-Speaker
- Includes 24 Pin plug with factory tight connections
Unit includes: (3) harnesses with stripped leads, and Instruction manual

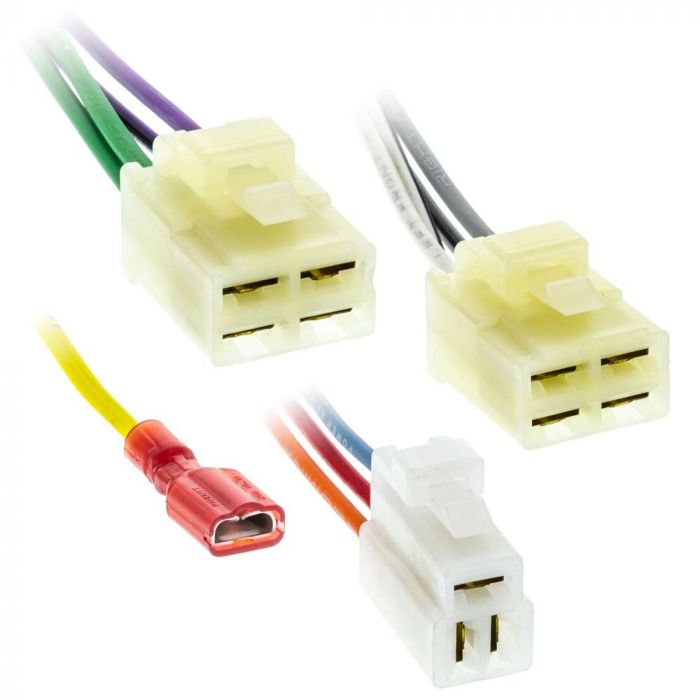

Metra 71-1781 TurboWires Wiring Harness for 1986 - 1989 Mazda vehicles
Metra 71-1781 TurboWires Wiring Harness for 1986 - 1989 Mazda vehicles
-
Harness Features:
- Plugs into OEM Radio and designed as a replacement to the vehicle factory connectors when cut off
- Power and 4-Speaker
- Includes 24 Pin plug with factory tight connections
- ABS plastic for maximum reliability
- Factory OEM quality
- Makes replacing the factory car stereo very easy without cutting wires
- No modification to existing vehicle wiring
- GSXL wire for power handling and heat resistance
- Pressure-inserted plug terminals
- Pre-stripped end connectors
-
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Blue with White Stripe - Amplifier turn on
- Blue - Antenna turn on
- Orange - Illumination
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
-
Kit Components:
- A) (3) harnesses with stripped leads
- B) Instruction manual
- Panel Removal tool
- Wire Crimper
- Crimp connectors
-
Tools Required:
Manufacturer | Metra |
---|---|
Part Number | 71-1781 |
Wiring harness function | Repair Factory Wiring |
Color | White |
Warranty | 1 Year |
Vehicle Year | 1990, 1991, 1992, 1993 |
Vehicle Brand | Mazda |
UPC Code | 086429011711 |
Item Returns | This item can be returned |
