Metra 71-5700 Sound Wiring Harness for Select Ford 1998-Up Vehicles
$38.99
In stock
SKU
71-5700
Expert Knowledge
Talk to a specialist
- Delivers premium sound quality
- Perfect to repair harness where the plugs have been damaged or cut off
- Compatible with factory-installed radios
- Ensures a secure and reliable fit

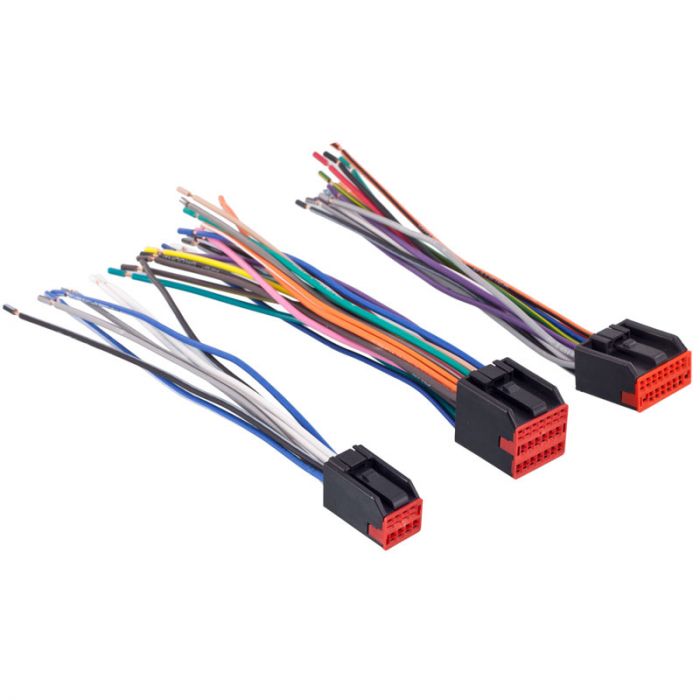

Unit includes: C1 Wire harness, C2 Wire harness, C3 harness and Instruction manual
Metra 71-5700 Sound Wiring Harness for Select Ford 1998 - Up Vehicles:
C1 16 Pin Harness Connections:
C2 8 Pin Harness Connections:
C3 20 Pin Harness Connections:
Fitments:
Ford:
Metra 71-5700 Sound Wiring Harness for Select Ford 1998 - Up Vehicles:
-
Features
- Used to repair the factory harness for 2008 - and Up Ford vehicles
- Can be used to repair a harness where the plugs have been cut off or damaged
- Makes replacing the factory car stereo wiring very easy
- Includes C1 16 Pin factory plug
- Includes C2 8 Pin factory plug
- Includes C1 20 Pin factory plug
- ABS plastic for maximum reliability
- Factory OEM quality
C1 16 Pin Harness Connections:
- Pin 1: Orange – Dash Light Dimmer/Illumination (+)
- Pin 2: Orange with a Black Strip – Dash Light Dimmer/Illumination (-)
- Pin 3: Blue with Black Strip - Start
- Pin 4: Green with Yellow Strip – Clock select
- Pin 5: Purple – Right Rear Speaker (+)
- Pin 6: Purple with Black Stripe – Right Rear Speaker (-)
- Pin 7: Gray – Right Front Speaker (+)
- Pin 8: Gray with Black Stripe – Right Front Speaker (-)
- Pin 9: Yellow – 12V Constant
- Pin 10: Red – 12V Accessory
- Pin 11: Black - Ground
- Pin 12: Green – Left Rear Speaker (+)
- Pin 13: Green with Black Stripe Left Rear Speaker (-)
- Pin 14: White – Left Front Speaker (+)
- Pin 15: White with Black Stripe – Left Front Speaker (-)
- Pin 16: Black with White Strip - PA Ground
C2 8 Pin Harness Connections:
- Pin 1: White – AA1 RET
- Pin 2: White - AA1 (+)
- Pin 3: Black with White Strip - AA1 Shield
- Pin 4: Blue with White Strip - AA1 E/CLD
- Pin 5: Blue with White Strip - AA2 RET
- Pin 6: Black with White Strip - AA2 (+)
- Pin 7: Gray - AA2 Shield
- Pin 8: Gray with Black Strip - AA2 E/CLD
C3 20 Pin Harness Connections:
- Pin 1: Blue with White Strip – Key Code
- Pin 2: Tan – ANT UP
- Pin 3: Green – SCP (+)
- Pin 4: Gray with Red Strip – SCP (-)
- Pin 5: Orange with White Strip – ASYSON
- Pin 6: Orange with Black Strip – ACP A
- Pin 7: Brown – ACP A
- Pin 8: Violet – Theft
- Pin 9: Yellow – Speed
- Pin 10: Red – PTA
- Pin 11: Black with White Strip – Mono (-)
- Pin 12: Black with White Strip – Mono (+)
- Pin 13: Black with White Strip – Mono Shield
- Pin 14: Green with White Strip – SWC1
- Pin 15: White with Black Strip – SWC2
- Pin 16: Brown with Yellow Strip – CDDJ - Shield
- Pin 17: Pink – CDDJR (+)
- Pin 18: Gray with Black Strip – CDDJR (-)
- Pin 19: Green with Red Strip – CDDJL (+)
- Pin 20: Blue with Black Strip – CDDJL (-)
Fitments:
Ford:
- 1998 - and Up Ford
| Manufacturer | Metra |
|---|---|
| Part Number | 71-5700 |
| Wiring harness function | Repair Factory Wiring |
| Warranty | 1 Year |
| Vehicle Year | 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
| Vehicle Brand | Ford |
| UPC Code | 086429086931 |
| Item Returns | This item can be returned |
