2007 - 2013 Chevy Silverado / Sierra Rear View Back Up Cameras - Complete Kit - 9002-9504

2007 - 2013 Chevy Silverado / Sierra Rear View Back Up Cameras - Complete Kit - 9002-9504

2007 - 2013 Chevy Silverado / Sierra Rear View Back Up Cameras - Complete Kit - 9002-9504

More Views

Item sku:14151

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Safesight 9002-9504 Product Highlights

  • Fits 2007 - 2013 Chevy Silverado / Sierra Rear View Back Up Camera
  • Complete kit and includes everything you need for the installation

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!


Rear View Camera Kits for the 2007-2013 GMC Sierra and Chevy Silverado

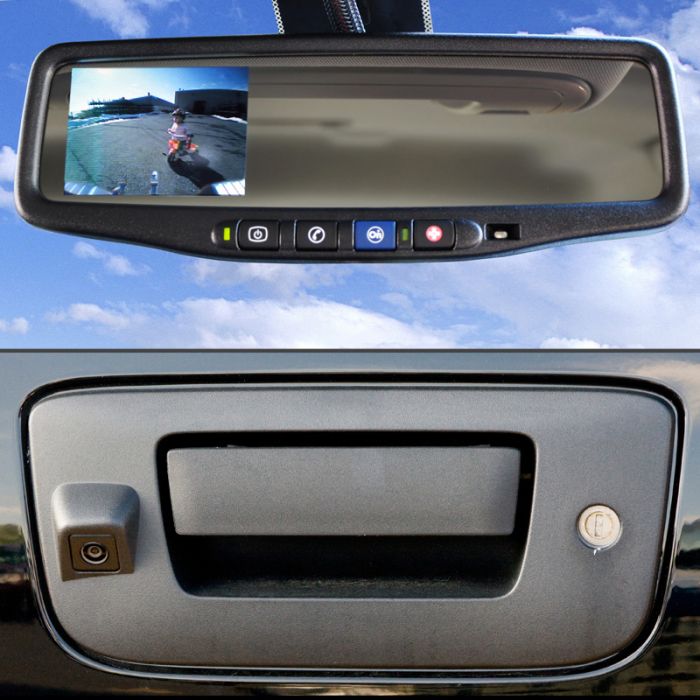

See what you've been missing with this complete integrated rear view backup camera and 3.5” LCD display rear view mirror for your 2007-2013 Chevy Silverado or GMC Sierra. This rear view backup camera system includes identical replacement rear view mirror for your GM pickup with no loss of vehicle features, replacement tailgate handle bezel with integrated Panasonic OEM-grade color rearview camera, and all vehicle harnessing.

Chevy Silverado and GMC Rear view Camera Systems: Identical to Factory Equipment

This is the factory-original GM Rear Vision System for your 2007-2013 GM pickup and it's available only from your GM dealer or through When you put your truck in reverse, the replacement rear view mirror displays a bright 3.5" LCD that provides a complete view of everything behind your vehicle, with high-resolution Panasonic wide-angle camera. Compatible with all 2007-2013 Chevy Silverado and GMC Sierra models. This kit comes complete with factory original upgrade mirror, factory tailgate bezel with integrated Panasonic wide-angle camera and tailgate lock option, shielded harnesses, and detailed instructions. Can be Installed in 60-90 minutes. Professional installation is recommended.

Have a factory or aftermarket navigation system in your truck? Click here

Key Benefits:
  • Identical to the system available from your GM dealer
  • High quality, OEM approved components and construction
  • No loss of features in your current mirror or vehicle
  • Includes compass/temperature display identical to your current mirror
  • Auto dimming mirror
  • Large 3.5” color backup monitor displays vividly when you put your truck in reverse
  • One year warranty
  • 3.5" TFT LCD Mirror Monitor
  • High Resolution Display
  • Integrated compass/temperature display
  • Auto Dimming
  • 1/4" Panasonic CCD Color Camera
  • 3 Lux For Illumination & Sharper Image
  • Color Image w/Automatic White Balance
  • Electronic Auto Iris
  • 150 Degree Horizontal and 100 degree Vertical Lens with Excellent Depth of Field
  • Waterproof Case w/Anti-fog Len

Technical Specifications

Manufacturer Safesight
Part Number 9002-9504
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 500 Nit
LCD back light type CCFL
Auto Dimming Yes - Auto Dimming
Trigger wire Yes
Slide track on back No
Image Flip Function Yes, reverse image flip
Built in Speakers No
Stand Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 1 Audio Video Input
Wireless Remote Control No
Monitor Type Rearview mirror monitor
Mirror Mount Type Glass Mount
Back up camera type Vehicle Specific Camera
Options 2009 - 2011
Product Options No
Homelink No Homelink transmitter
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CCD
Camera diameter 2.96 mm
Viewing Angle 150 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Case included No
Connector Type 5 Pin Connector
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 15 volt
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No

Customer Reviews

Great product and OEM fit
Review by
Install (5 star for easy)
The instructions with this item were excellent and we very easy to follow. I quality of this system is first rate, I really love the way this looks installed, I cannot tell that I purchased this aftermarket. (Posted on 1/24/2013)

Write Your Own Review

You're reviewing: 2007 - 2013 Chevy Silverado / Sierra Rear View Back Up Cameras - Complete Kit - 9002-9504

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Frank, Friday, August 9, 2013


Why does GM say that you cannot install this camera on an 11-13 model Silverado and you say you can?


  • Posted by Salvador Diaz on Friday, August 9, 2013

    We honestly do not know why they are claiming it wouldn't work. We have never had any issues with customers installing these kits. If you have any questions or concerns please give us a call at 800-363-0096 or if your in Canada 818-242-9461
