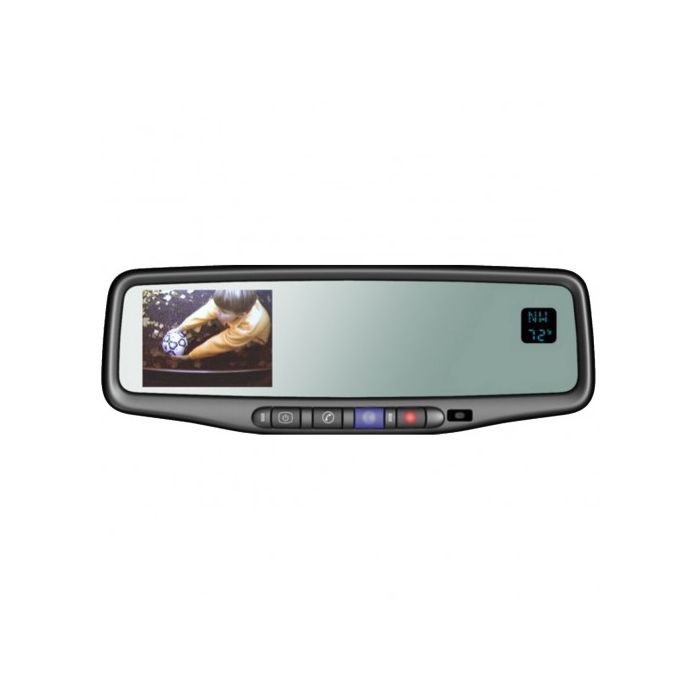

GM Factory Mirror with 3.5" Backup Monitor, Compass and Temperature Gauge 9002-9511A

GM Factory Mirror with 3.5" Backup Monitor, Compass and Temperature Gauge 9002-9511A

GM Factory Mirror with 3.5" Backup Monitor, Compass and Temperature Gauge 9002-9511A

More Views

Item sku:51094
Quality Mobile Video

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Quality Mobile Video 9002-9511A Product Highlights

  • GM Vehicle Ready
  • Bright 3.5" LCD Screen
  • Optional Temperature Gauge and Compass
  • Auto Dimming Ability
  • Auto Shut Off

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

Factory Rear Vision Direct to You

Perhaps you've seen this helpful new technology in a friend's new car or truck. You loved how it works — the rear view mirror looks like a normal mirror until you put the car in reverse and then — a crisp panoramic picture of what's behind your vehicle pops up on your mirror. You no doubt appreciated the new peace of mind and added degree of safety when backing up. Now, through an exclusive factory-direct arrangement you can enjoy the same high quality factory mirror-based rear vision system found in newer cars and trucks with no loss of features or aesthetics in your vehicle.
This high quality OEM mirror comes with a universal harness that lets you connect it to any standard aftermarket camera, including our own high-grade universal camera, which is available separately (click here).

Your source for factory-original equipment

We specializes in bringing the same equipment found on today's new cars and trucks direct to you at substantial savings. This mirror is identical to the mirror in your 2007 and newer GM car or truck, and connects easily using the same connector found at the back of your current mirror. The outline of the hidden 3.5” monitor is completely invisible until you put your car in reverse, unlike many less advanced systems available in the aftermarket. Professional installation is recommended.


Key Benefits:
  • An exact replacement for your vehicle's factory original mirror
  • Includes compass/temperature display in upper right corner of mirror
  • No loss of features in your current auto-dimming mirror
  • Large 3.5” color backup monitor displays vividly when you put your car in reverse
  • Compatible with all standard backup cameras through the included installation harness
  • Includes harness with RCA jack
  • Includes temperature sensor probe and harness
  • Increased vehicle resale value
  • One year factory warranty
  • 3.5" TFT LCD Mirror Monitor
  • Dual compass/temperature display
  • 2-minute auto shutoff
  • High Resolution Display
  • Auto Dimming
  • All GM factory buttons and controls

Compatibility:

This GM factory replacement rear view mirror with backup monitor and compass and temperature gage is compatible with all GM vehicles with GM emergency system buttons built into the mirror. If your current factory mirror has the GM emergency system buttons and a 16-pin removable black connector on the back of the mirror, you will be able to use your vehicles existing mirror wiring for a simplified connection (see installation guide for details).
If your current factory rear view mirror does not have the built-in compass and temperature gage that this mirror includes, you will still be able to use this product as it ships with a temperature sensor probe and harness combination.


Commonly asked questions:

    Q: After installation the picture comes on for a split second and then disappears.
    A: Check you camera connection, your camera must turn on instantly or already be on when the vehicle is shifted into reverse. If the mirror does not see an image fast enough it assumes that the camera is not present and so it turns off. (We recommend connecting the camera to ignition).

    Q: Where do I connect my 2 wire temperature sensor?
    A: Use pins 6 & 7, the sensors are resistance based and so there is no + or -.

    Q: Where is the compass located?
    A: All compass parts are built into mirror, there are no external parts.

    Q: The Picture comes on for 2 minutes then turns off.
    A: The mirror has a built-in timer and it only allows for 2 minute viewing (shifting vehicle out of reverse and back into reverse will reset timer).

    Q: After install, the picture comes on for a split second and then disappears.
    A: Check you camera connection, your camera must turn on instantly or already be on when the vehicle is shifted into reverse. If the mirror does not see an image fast enough it assumes that the camera is not present and so it turns off. (We recommend connecting the camera to ignition).

    Installation Instructions

Technical Specifications

Manufacturer Quality Mobile Video
Part Number 9002-9511A
NTSC/PAL No
Homelink No
Auto Dimming Yes - Auto Dimming
Options No
Warranty 1 Year
Color No
Viewing Angle No
Camera diameter No
Case included No
Connector Type No
Built in Microphone No
Parking grid lines No
Reverse Image No
Trigger wire No
Waterproof ingress protection No
Auto on/off Yes
Audio Video inputs 1 Video Input
Back up camera type No
Built in Bluetooth No
Built in Speakers No
Camera Sensor type No
Cigarette Lighter Cord Included No
Image Flip Function No
Infrared Illumination No
LCD back light type No
LCD Screen Brightness 400 Nit
Mirror Mount Type Glass Mount
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Slide track on back No
Stand Mount included No
Wireless Remote Control No
Widescreen Display No
Wireless Transmission No
Operation Voltage No
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No
