Metra 99-3018S Single or Double DIN Radio Installation kit for 2008 - 2015 Cadillac CTS

Metra 99-3018S Single or Double DIN Radio Installation kit for 2008 - 2015 Cadillac CTS

Metra 99-3018S Car Stereo Dash Kit for 2016 Cadillac CTS - Main

More Views

Item sku:99-3018S
Metra

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Metra 99-3018S Product Highlights

  • For 2008 - 2015 Cadillac CTS vehicles
  • Finished in Silver, to match the factory installed interior
  • High-Quality ABS plastic construction
  • Mount a Single or Double DIN car stereo
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2008 - 2015 Cadillac CTS vehicles
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed
  • Interface is designed to be used with factory amplified and non-amplified audio systems

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

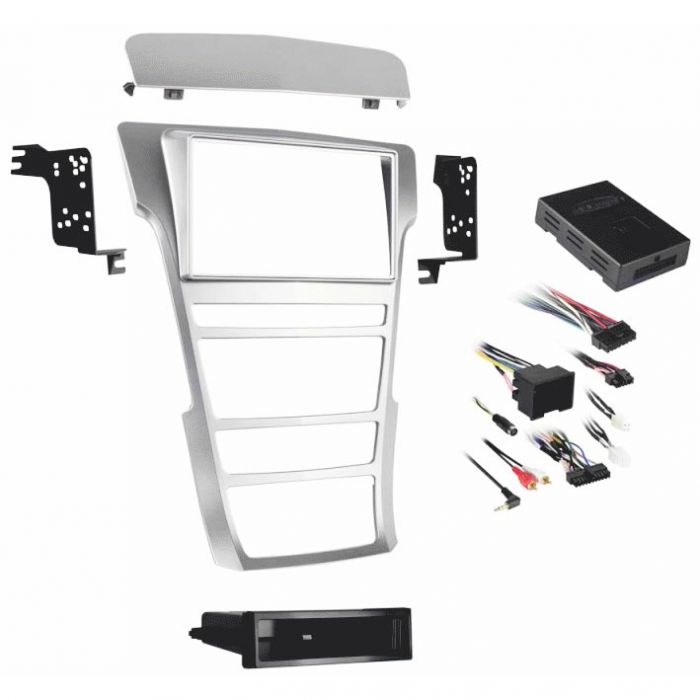

Unit includes: A) Silver Radio trim panel, B) Radio brackets, C) Pocket, D) Upper dash trim panel (for navigation models), E) (2) Plastic washers, F) (4) #8 x 3/8” Phillips screws, G) (2) Metal clips, H) (2) Copper threaded inserts, I) Axxess interface and wiring harness, and Instruction manual

Metra 99-3018S Single or Double DIN Radio Installation kit for 2008 - 2015 Cadillac CTS

Dash Kit Features:
  • Single DIN Radio Provision for easy installation of car radios
  • Double DIN Radio Provision for easy installation of car radios
  • Accommodates ISO Single DIN mount with pocket
  • Accommodates ISO Double DIN mount
  • Accommodates stacked single DIN radio's
  • Integrated pocket below radio
  • High-grade ABS plastic construction
  • Factory style fine texture
  • Painted Silver to match vehicle's factory center console trim
  • Metra Install kits are manufactured from OEM quality ABS plastic designed to leave no gaps between the dash and the kit.



Dash Kit Components:
  • A) Silver Radio trim panel
  • B) Radio brackets
  • C) Pocket
  • D) Upper dash trim panel (for navigation models)
  • E) (2) Plastic washers
  • F) (4) #8 x 3/8” Phillips screws
  • G) (2) Metal clips
  • H) (2) Copper threaded inserts
  • I) Axxess interface and wiring harness (See below for full details)


Interface Features:
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2011 - and Up select Ford vehicles
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with amplified or non-amplified audio systems
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
  • Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
  • 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • USB firmware updatable
  • Retains balance and fader


Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange with White Stripe - Radio illumination (+)
  • Brown - Mute (+)
  • Blue with White stripe - Amplifier turn on
  • Light Green - Parking brake
  • Blue with Pink Stripe - VSS (Vehicle speed sensor)
  • Green with Violet Stripe - Reverse trigger (+)
  • Black with Yellow Stripe - OnStar level adjustment
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
  • Red RCA - Right Aux in from center console (If equipped)
  • Left RCA - Left Aux in from center console (If equipped)


Interface Components:
  • Axxess Interface
  • 16-pin harness with stripped leads
  • 3018 harness with stripped leads
  • Resistor pad harness


Tools Required:

Optional parts:

Vehicle Applications:

Cadillac
  • 2008 - 2015 CTS

Technical Specifications

Manufacturer Metra
Part Number 99-3018S
Warranty 1 Year
Chassis Size Single or Double DIN
Color Silver
Vehicle Year 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Vehicle Brand Cadillac
Vehicle Model CTS, CTS-V
