Discontinued - Gryphon MV-RF121W Overhead Roof Mount Flip Down 12.1 inch TFT LCD Monitor with RCA Video Input
Product Details
Details
Unit includes: Remote Control

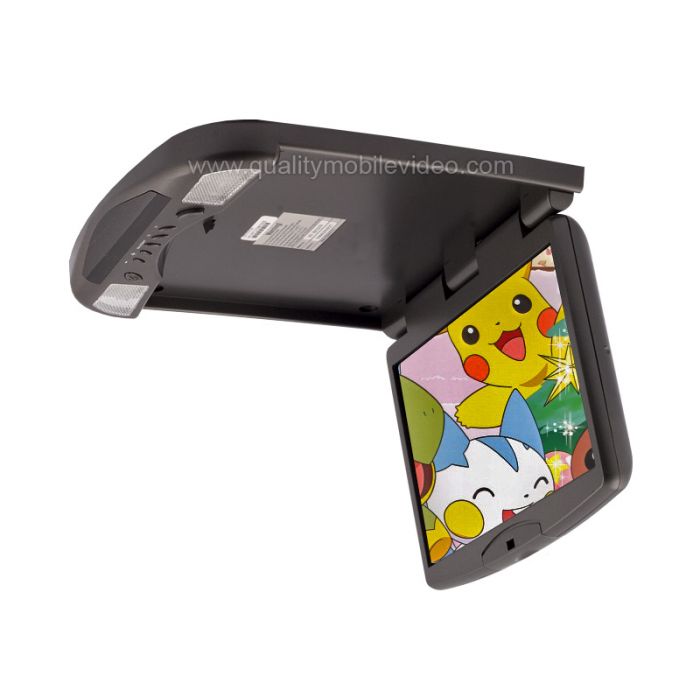

Gryphon MV-RF121W Overhead Roof Mount Flip Down 12.1 inch TFT LCD Monitor with RCA Video Input
Gryphon MV-RF121W Overhead Roof Mount Flip Down 12.1 inch TFT LCD Monitor with RCA Video Input
- Resolution: 1280 x 800
- Display Area: 261.12 x 163.2
- Size: 12.1 inch TFT Screen
- Brightness: 200 cd/m
- Response Time: Rising - 10 msec, Falling - 15 msec
- View Angle (degrees): Top - 20, Bottom - 40, Left - 40, Right - 40
- Video Input: Composite Video (RCA) (F) x 2 ; NTSC/PAL/SECAM
- Power Input: DC 12 ~ 35V, 3A (max)
- Control Function: Display Key - 6 Key control, Remote Key control
- Adjustment: Brightness, Contrast, Sharpness, Hue and Saturation
- Power Consumption: 15W max
- Working Temperature: 0 ~ 50 degrees C
- Storage Temperature: -5 ~ +60 degrees C
- Weight: 2.5 kg - 200 g
Additional Information
| Manufacturer | Gryphon |
|---|---|
| Part Number | MV-RF121W |
| LCD Screen Size | 11 inch - 12 inch |
| Swivel Screen | No |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | CCFL |
| Screen Resolution | 1280 x 800 |
| LCD Screen Brightness | 200 Nit |
| Touchscreen | No |
| Image Flip Function | No |
| Audio Video inputs | 1 Audio Video Input |
| Audio Video Outputs | No |
| Anti-Shock | No |
| Built-in DVD Player | No |
| Last Position Memory | No |
| Video Formats | N/A |
| Audio Formats | N/A |
| NTSC/PAL | NTSC and PAL |
| HDMI input | No |
| VGA input | No |
| USB input | No |
| SD Card input | No |
| TV Tuner | No |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in FM Modulator | No |
| Built in Speakers | No |
| Built in Game System | No |
| Monitor Color | Black |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| UPC Code | No |
Products Questions:
There is no product questions yet.
Installation Video's & Manuals
 |
Flip down monitor installation guide Page 1 - Mounting area (Size: 53.5 KB) |
| Overhead flip down monitor installation instructions Page 1 - Learn more about the mounting location. | |
|
Flip down monitor installation guide Page 2 - Cutting the headliner (Size: 60.4 KB) |
| Overhead flip down monitor installation instructions Page 2 - Learn more about cutting the headliner and preparing the mounting location. | |
|
Flip down monitor installation guide Page 3 - Mounting plate installation and wiring (Size: 56.9 KB) |
| Overhead flip down monitor installation instructions Page 3 - Learn more about the mounting the plate and where to run the wires. Call us with help for wire connections. | |
 |
Overhead DVD Player install video in a vehicle with sunroof |
| Learn how to install an overhead DVD player in a vehicle with a sunroof. Here we install an overhead DVD player in Honda Pilot with a sunroof. See how we mount the monitor and run all of the wiring. | |
|
Overhead Flip Down Monitor Easy Fit Guide - See what fits your vehicle (Size: 237.9 KB) |
| Easy three step process to see what overhead flip down monitor will fit your vehicle. Our guide will allow you to determine if the monitor you are interested in will fit your vehicle. |
