PAC AOEM-CHR2 2002 and Up Chrysler add an amplifier interface

PAC AOEM-CHR2 2002 and Up Chrysler add an amplifier interface

PAC AOEM-CHR2 2002 and Up Chrysler add an amplifier interface

More Views

PAC
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

PAC AOEM-CHR2 Product Highlights

  • Fits 2002 and up select Chrysler vehicles
  • Interface is designed to be used with factory radios and converts radio outputs to aftermarket amplifier audio connections
  • Provides front and rear low level outputs
  • Provides full range audio output 20-20,000Hz
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

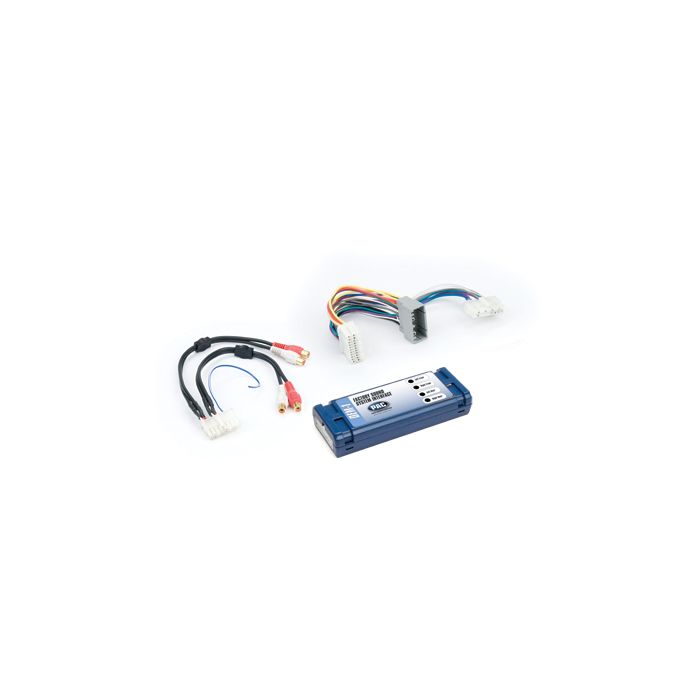

Unit includes: A) AOEM-CHR2 interface, B) PAC Factory harness, C) Chrysler harness, and Instruction manual

PAC AOEM-CHR2 2002 and Up Chrysler amplified audio system interface:

Interface Features:
  • Provides line level output for non-canbus vehicles and makes adding or replacing an amplifier easy
  • Works with non-amplified, audio systems
  • Not compatible with premium Infinity amplified systems
  • Not compatible with Navigation equipped vehicles
  • Interface is designed to be used with factory systems and converts factory radio outputs to and aftermarket amplifier
  • 4 - High level speaker inputs makes connections for aftermarket amplifier easy
  • Provides front and rear low level outputs
  • Retains balance and fader
  • Provides full range audio output 20-20,000Hz
  • Interface is transformer isolated to prevent damage to factory radio in the event of an issue with aftermarket amplifier


Connections:
  • Black - Ground
  • Red - 12 volts (+)
  • Yellow - 12 volts Accessory (+)
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)


Kit Components:
  • A) AOEM-CHR2 interface
  • B) 16-pin harness
  • C) 14-pin harness to 10-pin and 28-pin Chrysler harness
  • D) Instruction manual


Tools Required:

Vehicle Applications:

Chrysler:
  • 2005 - 2006 300
  • 2002 - 2004 300M
  • 2002 - 2004 Concorde
  • 2002 - 2003 PT-Cruiser
  • 2002 - 2003 Sebring
  • 2002 - 2007 Town and Country
  • 2002 - 2003 Voyager


Dodge:
  • 2006 - 2006 Charger
  • 2002 - 2006 Dakota
  • 2002 - 2006 Durango
  • 2002 - 2004 Intrepid
  • 2005 - 2006 Magnum
  • 2002 - 2006 Ram
  • 2002 - 2003 Stratus
  • 2006 - 2006 Commander


Technical Specifications

Manufacturer PAC
Part Number AOEM-CHR2
Integration Module N/A
Steering Wheel Control Input N/A
RCA Pre-amp Audio inputs N/A
Speaker level inputs N/A
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 606523105873
