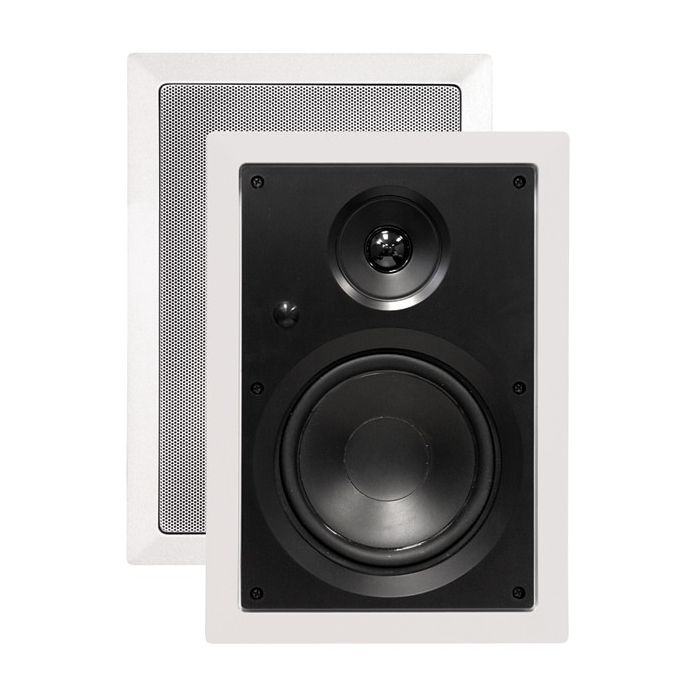

ArchiTech AP-602 6-1/2" 2-Way In-Wall Speaker

ArchiTech AP-602 6-1/2" 2-Way In-Wall Speaker

ArchiTech AP-602 6-1/2" 2-Way In-Wall Speaker - Speaker pair

More Views

Item sku:AP-602
Quality Mobile Video

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Quality Mobile Video AP-602 Product Highlights

  • Excellent speaker for back ground music and other non-direct audio sources
  • Can be used in 2 Channel Home audio systems
  • Mounting provision for IR device

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: In wall loudspeaker, Speaker grille, Mounting Clamp ring, Clamp screws, and Instruction manual

ArchiTech AP-602 6-1/2" 2-Way In-Wall Speaker features:
  • Excellent speaker for back ground music and other non-direct audio sources
  • Can be used in 2 Channel Home audio systems
  • Single 6.5" Poly woofers with butyl rubber surrounds
  • Far-forward woofer mount with pole-mounted tweeter minimizes diffraction while maximizing dispersion
  • Mounting provision for IR device
  • High temperature Aluminum voice coils
  • Proven Mounting System
  • Frame and Grilles may be painted to match mounting surface
  • Sold in pairs
  • Required depth: 3.25"
  • 2-way rectangular design
  • Imp: 8Ω nominal
  • 50W–100W per channel
  • Overall Dimensions: 9-1/16" (W) x 12-3/4" (H)
  • Cut-out Dimensions: 8" (W) x 11-3/4" (H) x 3-1/4" (D)

Technical Specifications

Manufacturer Quality Mobile Video
Part Number AP-602
Warranty Lifetime
Sensitivity 91 dB
Frequency Response 45 - 20,000 Hz
Mounting Depth No
Cutout Dimensions No
Built in Crossover High-pass, Low-pass
Speaker level inputs No
Impedance (per voice coil) 8 ohm
Power Handling RMS 100 Watts
Driver Size 6-1/2 inch
Sub enclosure type N/A
Number of speakers / subs 2
Power Handling Peak 200 watts
Color White
Speaker system type In-Wall
Voice coils Single voice coil
UPC Code 769381090078
