DISCONTINUED - Pioneer AVIC-6100NEX Double DIN 6.1" In Dash Car Stereo Receiver

DISCONTINUED - Pioneer AVIC-6100NEX Double DIN 6.1" In Dash Car Stereo Receiver

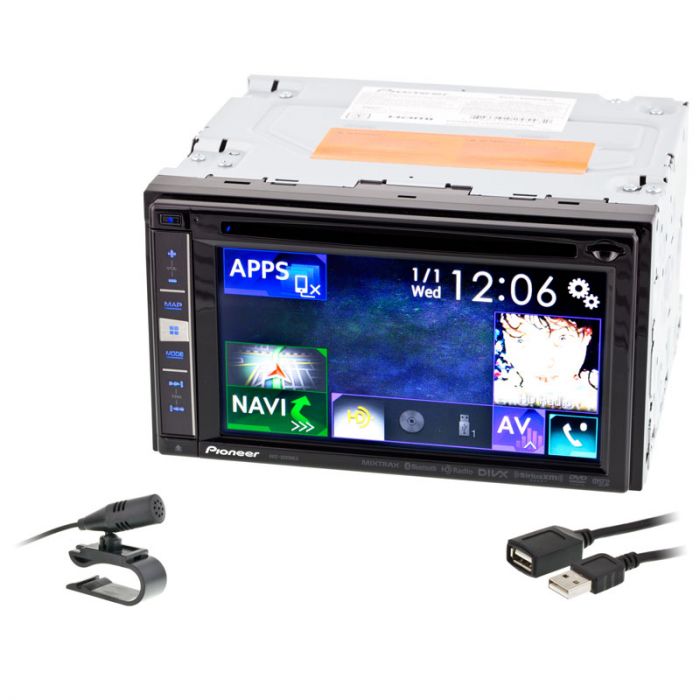

Pioneer AVIC-6100NEX Double DIN Car Stereo with GPS Nav - Main

More Views

Item sku:AVIC-6100NEX
Pioneer

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Pioneer AVIC-6100NEX Product Highlights

  • In Dash 6.1 inch Multimedia receiver with Iphone and Android direct control
  • Built in GPS navigation with 7.9 Million POIs and Text-to-Speech Voice Guidance
  • Real time Traffic Tuner with RDS-TMC
  • Built-in Bluetooth for hands-free calling with phone book access, dial pad, and included microphone
  • Built in AM/FM HD - radio tuner
  • AppRadio mode for direct control of your iPhone and Android smart phone apps
  • MirrorLink Ready
  • HDMI A/V Input
  • Dual Rear USB Ports and Micro SD Card Slot
  • iDatalink Maestro Compatible


Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Double DIN radio, Wiring harness, Mounting hardware, Back strap, GPS sensor, 3.5mm extension cable, CD instruction manual, Magnetic pad, and Instruction manual

Pioneer AVIC-6100NEX Double DIN 6.1" In Dash Car Stereo

Features:
  • 6.1 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor with GPS navigation
  • Built in GPS navigation with 7.9 Million POIs and Text-to-Speech Voice Guidance
  • Built in Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
  • LCD screen Resolution: 800 x 480 Pixels
  • LED Back-lighting
  • 5 Color LCD Display illumination colors, 112 color button illumination
  • Selectable backgrounds
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 17 watts RMS
  • 12 hours or 24 hours clock display
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Easily accessible with wireless remote and graphic touch screen
  • App Radio mode for iPhone and Android
  • 30 Pin iPod interface control with optional CD-IU201V cable
  • Mirrorlink ready with optional CD-MU200 cable for Android phones
  • AppRadio Mode for iPhone 4 and 4S with CD-IU201S cable
  • AppRadio Mode for iPhone 5 and 5S with CD-IH202 cable
  • Non-App radio iPhone 5 and 5S lightening interface with CD-IU52 cable
  • AppRadio Mode for Android phones with CD-AH200 cable
  • Wireless Pandora Control for iPhone and Android
  • Siri Eyes Free Compatible
  • Dual-zone control, play a movie in the backseat for the children while the driver listens to the radio!
  • Advanced trouch slide control, just like mobile phones pinch fingers to zoom etc
  • iDatalink Maestro Compatible


Media playback features:
  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4 WMA, DivX
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WMA/iTunes AAC Audio Playback on CD/DVD/USB/SD Card
  • MP3 ID3 tag information, display artist and song information
  • DivX Video Playback on CD/DVD/USB/SD Card
  • H.264/WMV Video Playback on CD/DVD/USB/SD Card
  • Dolby Digital Decoder for surround sound
  • MPEG-4 Decoder for playback of nearly any digital file
  • FLAC Audio Playback for high definition audio downloads
  • MKV/FLV Video Playback
  • Link Search for iPod
  • iTunes Tagging
  • Voice Recognition Support
  • Pandora Radio App Compatible with proper cable for Android and iPhone
  • Aha Radio App Compatible for Android and iPhone


Audio features:
  • MIXTRAX for DJ inspired effects and transitions
  • 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
  • Auto EQ for optimum sound quality that is tuned to your vehicle, requires CD-MC20 microphone
  • 13-band parametric equalizer with preset and custom options
  • High-Pass filter with variable slopes and crossover frequencies
  • Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160
  • Selectable sound fields: Hall, Classic, Pop, Rock, User
  • Advanced Sound Retriever
  • Sound Retriever Air


Tuner features:
  • Includes HD-Radio AM & FM tuner with 24 preset stations memory
  • RDS (Radio data service) Tuner
  • SiriusXM radio ready with SXV200 Sirius XM tuner


Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 2.0+ certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above


Inputs and outputs:
  • 3 Sets of 4V preamp outputs (Front, Rear and Subwoofer)
  • Rear Input for Rear Camera
  • 1 Rear video output to connect to an external monitors
  • Rear Audio video input for connection to external source
  • Rear RGB video input
  • Rear HDMI input
  • 2 Rear USB connection accepts up to a 32Gb
  • SD memory card reader behind faceplate accepts up to a 32Gb memory card
  • Steering wheel control input requires ASWC steering wheel interface
  • Direct connect for iPod with cable - Full on screen control see above for cables


Navigation features:
  • Built in Navigation with 8Gb storage
  • Navigation has mapping information with US, Alaska, Hawaii, Canada, and Puerto Rico
  • Hands-free voice guidance with text to speech prompts, so one can keep his eye on road while driving
  • 8 million points of interest and offers real time traffic
  • AVICSYNC App compatible
  • Real-time traffic tuner with Radio Data Service
  • 3D Hybrid Sensor (Gyro & G-Force)


Dimensions:
  • Double DIN chassis
  • Dimensions: 7"W x 7-1/8"D x 3-15/16"H

Technical Specifications

Manufacturer Pioneer
Part Number AVIC-6100NEX
Chassis Size Double DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 4 volts
LCD Screen Size 5 inch - 6 inch
Illumination color Full Color
LCD Screen Brightness 400 Nit
Swivel Screen Yes
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input N/A
Back up camera input Yes
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input None
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control Yes
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
SD Card input Yes, microSD Card
USB input Yes
HDMI input Yes
HDMI output No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
NTSC/PAL NTSC and PAL
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
Video Formats Divx, H.264, MPEG-1, MPEG-2, MPEG-4, WMV
MP3 Playback Yes
Built in Bluetooth Yes, Built in Bluetooth
NFC (Near Field Communication) No
HD Radio Yes
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
Navigation Built in
GPS Maps USA and Canada
Text to Speech Yes
Traffic Tuner Built in Traffic Tuner
Points of Interest 7 - 8 Million
Integration Module N/A
Steering Wheel Control Input Yes, requires external module
Wireless Remote Control No
TV Tuner No Tuner
VGA input No - VGA input
Operation Voltage 12 - 15 volt
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 884938288866
