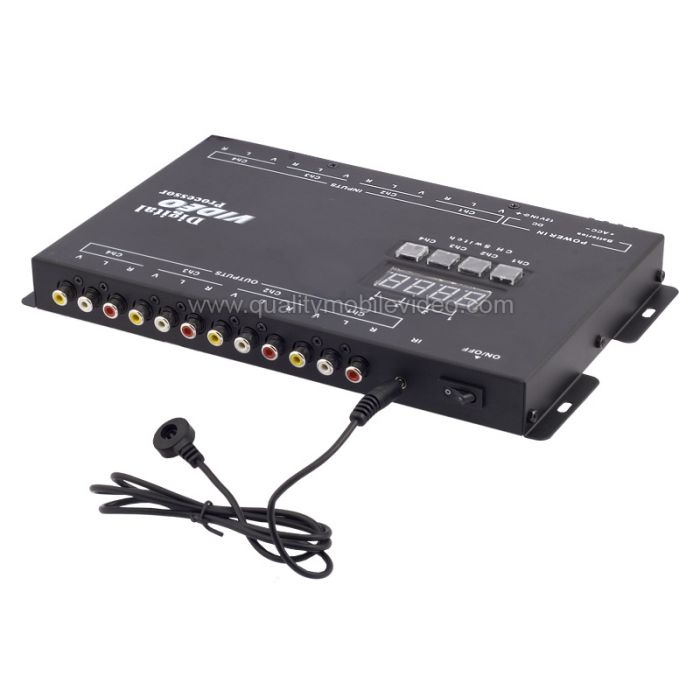

Gryphon Mobile MV-AVSWT Digital Video Processor with 4 Inputs, 4 Outputs Video Switcher and Amplifier

Gryphon Mobile MV-AVSWT Digital Video Processor with 4 Inputs, 4 Outputs Video Switcher and Amplifier

4 input and 4 output car video switcher

More Views

Accelevision
Ships Free!

Overall Rating 5 (Based on 3 reviews)

Accelevision MV-AVSWT Product Highlights

  • 4 Inputs, 4 Outputs Video Switcher and Amplifier
  • Gold plated RCA jacks
  • Includes Wireless Remote Control
  • High quality with high impact strength metal housing
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit Includes: 4 input and 4 output switcher, (4) 3 foot Audio Video RCA cables, 6 foot IR sensor, and Wireless Remote Control

Gryphon Mobile MV-AVSWT 4 Inputs - 4 Outputs Video Switcher
    Features:
  • Create the ultimate in-car video entertainment system with a video switcher that allows you to select any source from one of four outputs
  • 4 Inputs, 4 Outputs Video switcher with integrated signal amplifier to prevent signal loss
  • High quality housing with high impact strength metal housing
  • Single wireless remote control with remote sensor for easy signal selection
  • Built in Video Amplifier for all four inputs
  • Top mounted soft push button control for quick selection and LED display for confirmation
  • Nickel plated RCA jacks
  • Input Voltage: 12Vdc - 24 Vdc
  • Power Consumption: Operation 8W
  • Video Bandwidth: 10 Mhz
  • Audio Bandwidth: 20 kHz
  • Impedance of Video Input: 75 Ohm
  • Impedance of Audio Input: 8.5k Ohm
  • Harmonic Distortion: 0.008 %
  • Operatiing Conditions: 32 - 122° Fahrenheit (0 - 50° Celsius)
    Inputs and Outputs
  • (4) RCA Audio Video inputs
  • (4) RCA Audio Video outputs
  • 1 - DC power input
  • 1 - IR input
    Dimensions:
  • Dimensions: 9-7/8" x 7" x 1-1/16" (LxWxH)

Technical Specifications

Manufacturer Accelevision
Part Number MV-AVSWT
Audio Video inputs 4 Video Input
Warranty 1 Year
Audio Video Outputs 4 video outputs
TV Tuner No Tuner
Wireless Remote Control Yes
UPC Code No

Customer Reviews

Good deal at last
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
This review will be for both the product and "Quality Mobile Video;" to sum it up in one word - PERFECT!

My setup:
Soundstream 9" headrest monitors w/ DVD
Sony touchscreen headunit w/ DVD
Sony PS3
Nintendo Wii
700W RMS Tripp-Lite inverter
Accelevision AVS441 Digital Video Processor

Commonly headrests have 1 input and 1 output to be able to watch each other but if you throw anything else in the mix it would require unpluging one to connect another - not with this device, each monitor can watch any of the 4 devices connected by simply pushing a button on the control panel or the really handy remote.

Love it! Just did a 40 hour round trip with two kids and a passenger - each wanting to do their own thing until they see what the other is doing, then, of course, they want to do what they are doing..... with the remote in hand - no problem.

Cons: Could've used a 5th input

Not too much of a con but the RCA cables that came in the package are really, really cheap and flimsy - they worked fine but I plan on replacing in the future.
(Posted on 1/7/2012)
Excellent for the price
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
fantastic product. did everything i wanted (Posted on 8/4/2011)
Great Unit!
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
AVS 441 used in '06 Toyota Sienna with 4 headrest monitors. Head unit/Navi has DVD player. Main DVD under passenger seat. 400W Game plate for XBox in back row. Aux 4th input via game plate in back row. AVS 441 fits easily under driver seat with remote sensor tucked in back of seat. Paid pro installer $350 for headrests, game plates, main DVD, & AVS 441 install only. Pro installer didn't know that a mobile 4I/4O video switcher existed - he was going to start offering to customers.
My family of 5 had 22 hours of road trip harmony as everyone had choice of playing same game, different game, watching same movie or different movie. This unit performed flawlessly and made everyone in the family very happy. It is simple to adjust hook ups if desired and change channels with the remote.
TIP: I deliberately purchased WIRED headphone headrest monitors W/O DVD players. It is much easier configuration using AVS 441, it is cheaper AND you won't have audio conflicts with 4 wireless headsets and only 2 channels to play with.
(Posted on 11/29/2010)

Write Your Own Review

You're reviewing: Gryphon Mobile MV-AVSWT Digital Video Processor with 4 Inputs, 4 Outputs Video Switcher and Amplifier

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by denis godbout jr, Wednesday, May 6, 2015

Question:

Do u offer just the remote? I missplaced the one I had

Answers:

  • Posted by Store Owner on Wednesday, May 6, 2015
    A: We unfortunately do not have parts for this item.
Posted by milton, Thursday, May 30, 2013

Question:

Does this model. Have a wireless. Remote

Answers:

  • Posted by Salvador Diaz on Thursday, May 30, 2013
    A:

    Yes, it comes with a wireless remote control.
