Axxess AX-GMLAN112 2006 - 2012 GM radio replacement LAN-BUS interface with navigation outputs

$60.99
In stock
SKU
AX-GMLAN112

Key Features

  • General Motors complete radio replacement interface for plug-and-play installation of an aftermarket car radio
  • Retains factory audio system and vehicle chimes
  • Retains steering wheel controls
  • Provides NAV outputs (parking brake, reverse, and speed sense)
  • Interface is designed for amplified and non-amplified audio systems

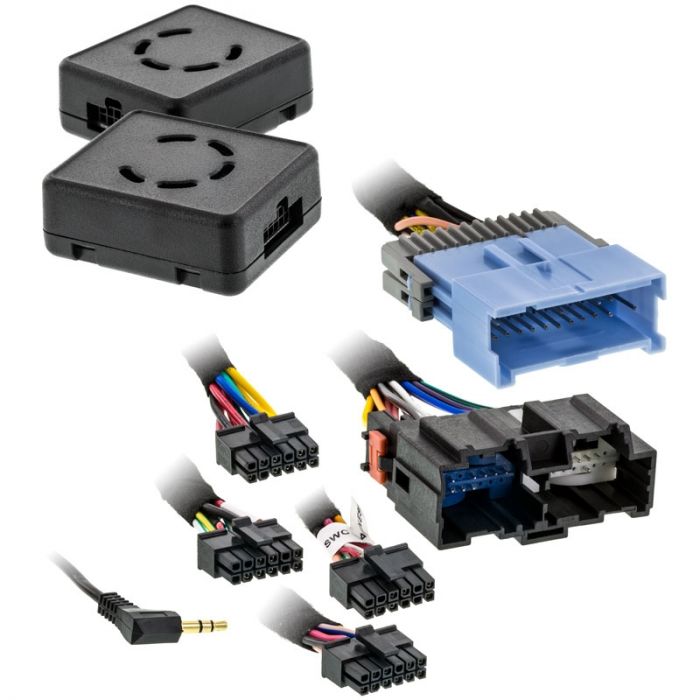

Unit includes: AX-GMLAN112 Interface control box, 16 pin wire harness, 18 pin to 12 pin and 24 pin harness, and Instruction manual

Axxess AX-GMLAN112 2006 - 2012 GM radio replacement LAN-BUS interface with navigation outputs
    Features:
  • Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
  • Provides accessory (12-volt 10-amp)
  • Retains R.A.P. (retained accessory power)
  • Retains chimes through on-board speaker
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • ASWC-1 harness included (ASWC-1 not included)
  • Adjustable volume for chimes and OnStar
  • Interface is designed for amplifier and non-amplified audio systems
  • High level speaker input
  • USB updatable
  • Retains balance and fade
  • Axxess AX-GMLAN112 2006 - 2012 GM radio replacement LAN-BUS interface Instruction manual
Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange/White - Dash Light Dimmer/Illumination
  • Blue/White - Amplifier turn on
  • Brown - Mute connection
  • Light green - (-) Parking brake lead
  • Blue/Pink - VSS (Vehicle speed sensor)
  • Black/Yellow - OnStar volume adjustment
  • White RCA - Left Auxiliary input
  • Red RCA - Right Auxiliary input
  • Green/Purple - (+) Reverse trigger
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
    Fitments:

    Chevrolet
  • 2005 - 2010 Cobalt
  • 2006 - 2011 HHR
  • 2004 - 2012 Malibu
  • 2008 Malibu Classic
  • 2004 - 2007 Malibu Maxx
    Pontiac
  • 2007 - 2009 G5
  • 2005 - 2009 and 2010 G6
  • 2006 - 2009 Solstice
    Saturn
  • 2007 - 2009 Aura
  • 2007 - 2009 Sky
More Information
Manufacturer Axxess
Part Number AX-GMLAN112
Integration Module Radio Replacement
Wiring harness function Replace Factory Radio
Steering Wheel Control Yes, requires external module
Speaker level inputs Yes
Warranty 1 Year
Vehicle Year 2006, 2007, 2008, 2009, 2010, 2011, 2012
Vehicle Brand Chevrolet, Pontiac, Saturn
Return period 30 days
Exchange period 30 days
