Axxess AX-MB1-SWC 2001 - and Up Mercedes Benz radio replacement interface with steering wheel and navigation outputs
$110.99
Out of stock
SKU
AX-MB1-SWC
Expert Knowledge
Talk to a specialist
- Mercedes complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Interface is designed for non-amplified models or when bypassing a factory amplifier
- Built in steering wheel control interface
- Provides NAV outputs (parking brake, reverse, and speed sense)

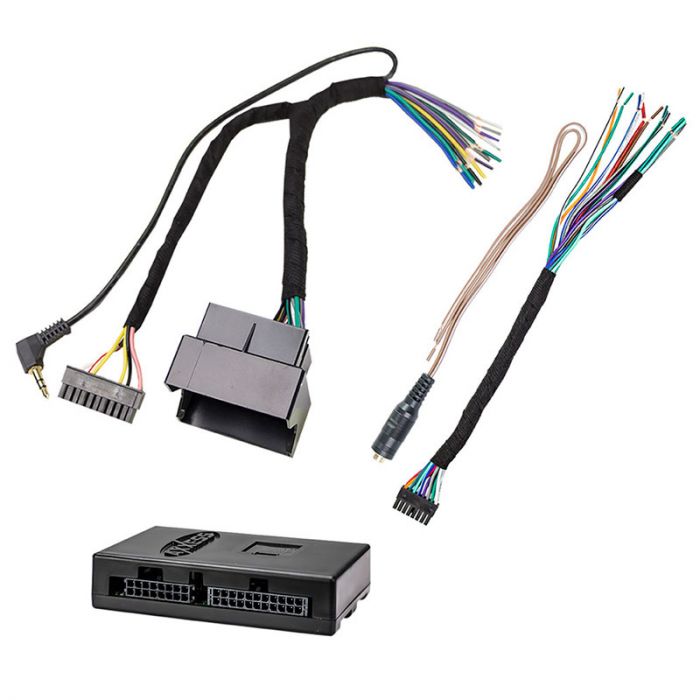

Unit includes: AX-MB1-SWC interface, LD-BX-MB1-SWC harness, LD-BX-MB2-SWC harness, 16-pin harness with stripped leads, Female 3.5mm connector with stripped leads, and Instruction manual
Axxess AX-MB1-SWC 2001 - and Up Mercedes Benz radio replacement interface with steering wheel and navigation outputs
Axxess AX-MB1-SWC 2001 - and Up Mercedes Benz radio replacement interface with steering wheel and navigation outputs
- Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Designed for non-amplified models, or when bypassing a factory amp
- Retains chimes
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- Integrated steering wheel control with direct plug in to aftermarket stereo
- High level speaker input
- USB updatable
- Retains balance and fade
- Axxess AX-MB1-SWC 2001 - and Up Mercedes Benz radio replacement interface Instruction manual
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Brown - Mute connection
- Light green - (-) Parking brake lead
- Blue/Pink - VSS (Vehicle speed sensor)
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
-
Compatible Models LD-BX-MB1-SWC Harness)
- 2001 - 2004 C-Class
- 2004 CLK Class
- 2003 CLK500
- 2003 CLK55 AMG
- Compatible Models LD-BX-MB2-SWC Harness)
- 2005 - 2011 C-Class
- 2005 - 2009 CLK Class
- 2010 - and Up E-Class
- 2007 - 2012 G-Class
- 2010 - 2012 GLK-Class
- 2006 - 2011 R-Class
- 2005 - 2011 SLK-Class
- 2010 - and Up Sprinter
| Manufacturer | Axxess |
|---|---|
| Part Number | AX-MB1-SWC |
| Integration Module | Radio Replacement and Steering Wheel |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | Yes, Built in control |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| Vehicle Year | 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 |
| Vehicle Brand | Mercedes Benz |
| UPC Code | 086429329953 |
| Return period | 30 days |
| Exchange period | 30 days |
