Accele AXFD17 17 Inch Over Head Flip Down LCD Monitor with Dual HDMI inputs

Accele AXFD17 17 Inch Over Head Flip Down LCD Monitor with Dual HDMI inputs

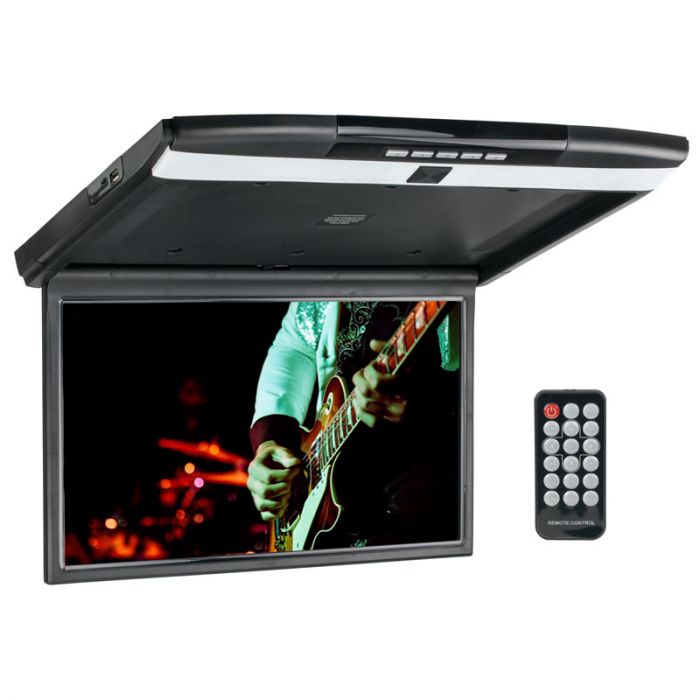

Accele AXFD17 17 Inch Overhead Monitor - Main

More Views

Item sku:AXFD17
Accelevision

Overall Rating 4.4 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Accelevision AXFD17 Product Highlights

  • 17" Ceiling-Mount LCD Monitor
  • Dual HDMI inputs for HD video connections
  • Single channel wireless IR transmitter
  • 2 RCA video inputs
  • USB input for media stored on jump drives
  • TF card reader
  • Built in LED dome lights

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Overhead flipdown monitor, Mounting bracket, Wiring harness, Remote control, and Instruction manual

Accele AXFD17 17 Inch Over Head Flip Down LCD Monitor with Dual HDMI inputs for Vehicles features:

    Features:
  • 17" Ceiling-Mount flip down LCD monitor
  • 16:10 widescreen display
  • Accepts up 1920 x 1080 P Display makes it perfect for Bluray disc players and will display 1080p video
  • Dual HDMI input for direct video connections
  • 2 RCA video inputs
  • USB input for media stored on jump drives
  • TF card reader
  • Built in LED dome lights
  • Built in IR headphone transmitter
  • Built in Stereo speakers
  • Native Resolution: 1024 x 600 x 3
  • Dimensions: 1-1/4" (H) x 18" (W) x 13" (D)
  • Power consumption: 12Vdc @ 1600ma
    Inputs and Outputs:
  • 2 - HDMI video input
  • 2 - RCA video inputs
  • 1 - Stereo audio input
  • 1 - USB input
  • 1 - TF card input

Technical Specifications

Manufacturer Accelevision
Part Number AXFD17
LCD Screen Size 17 inch - 18 inch
Swivel Screen No
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
Native Screen Resolution 1024 x 600
LCD Screen Brightness 350 Nit
Touchscreen No
Image Flip Function No
Audio Video inputs 2 Video Inputs, 1 Audio input
Audio Video Outputs No
Anti-Shock No
Built-in DVD Player No
Last Position Memory No
Video Formats H.264, JPEG, MPEG-2, MPEG-4
Audio Formats Mpeg-3
NTSC/PAL NTSC and PAL
HDMI input Yes
VGA input No - VGA input
USB input Yes
SD Card input Yes, microSD Card
TV Tuner No Tuner
Headphone Transmitter Yes, Single channel
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
Built in Game System No
Monitor Color Black
Wireless Remote Control Yes
Warranty 1 Year
UPC Code 736836544950

Customer Reviews

update
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Overall, I am still very happy with this purchase. The dome light issue is an incompatibility issue with my 2013 Chevy Avalanche. My vehicles dome light come one dim and gradually get brighter (1v to 12v gradual increase) and the dome light in this monitor is looking for 0v-12v, hence why the dome light does not work with the door open/close. It was causing other issue with my 12v system that forced me to unhook the dome light all together, even the manual on/off. Other than that, the picture is amazing and the usb port reads about every movie format I put on my flash drive, even mkv videos. (Posted on 4/14/2016)
overall quality is good
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I love the resolution and slim design. I had to cut out my rear dome light housing to install this monitor. It has a built in light so it wasn't an issue. The instructions that came with it are worthless but with so few wires that it didn't matter. The dome light works in manual mode only though. When I wire it to come on with doors, it stays very dimly lit all the time when the doors are closed which could drain my battery so I disconnected the on with door portion. The dome light has turned itself on a few times by itself, leaving me to believe that I possibly could have wired something wrong or there is a defect with it. Going on a 10 day road trip and will test thoroughly and double check the wiring when I get back and update my review. (Posted on 3/17/2016)

Write Your Own Review

You're reviewing: Accele AXFD17 17 Inch Over Head Flip Down LCD Monitor with Dual HDMI inputs

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Patrick Maynard, Thursday, July 16, 2015

Question:

Hello, Can you tell me the dimensions of Accele AXFD17HDWF 17 Inch monitor? I would like to mount two of them side by side in a Tahoe but need to ensure I have adequate spacing on the headliner.

Answers:

  • Posted by Mike Yang on Thursday, July 16, 2015
    A: The dimensions of this unit are: 1-1/4" (H) x 18" (W) x 13" (D)
