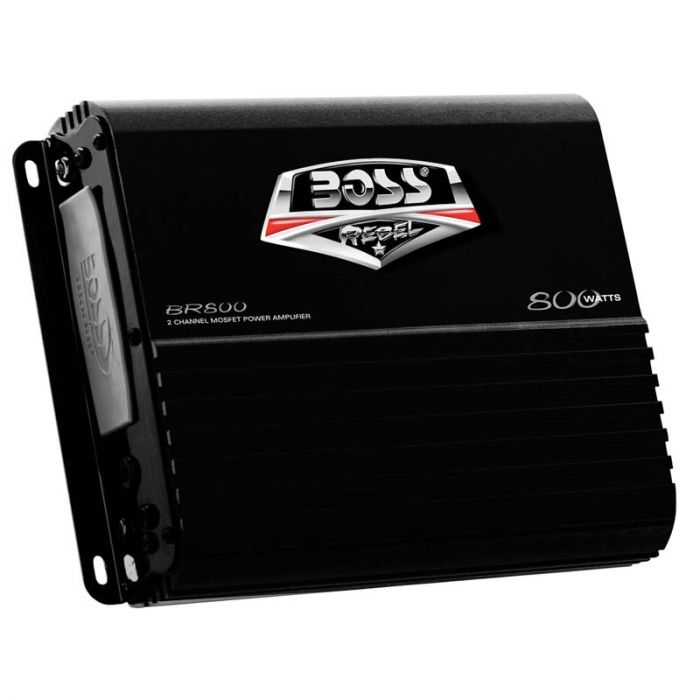

Boss Audio BR800 ATV / Marine Class AB 2-Channel Amplifier - 800 Watts

Boss Audio BR800 ATV / Marine Class AB 2-Channel Amplifier - 800 Watts

Boss Audio BR800 ATV 2-Channel Amplifier - Main

More Views

Boss Audio
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boss Audio BR800 Product Highlights

  • Full Range Class AB Weather-proof amplifier
  • 2/1 channel output to drive stereo speakers or a subwoofer
  • Includes subwoofer level controller
  • Waterproof with conformal coated circuit board and UV coatings
  • MOSFET regulated power supply
  • 150 watts RMS x 2 channel at 4-Ohms
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Boss Audio BR800 REBEL All-Terrain/Marine Class AB Amp (2 Channels, 800 Watts)
    Features:
  • Full Range Class AB Weather-proof amplifier
  • Includes subwoofer level controller so you can quickly adjust bass to your desire
  • 2/1 channel output to drive stereo speakers or a subwoofer
  • Waterproof with conformal coated circuit board and UV coatings
  • Utilizes inline weatherproof connectors for all input and output connections to prevent water intrusion
  • Rubber door which tightly seals all control panel openings when not in use
  • MOSFET regulated power supply for excellent power capabilities
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Power and protection LEDs
  • Low and high-level inputs
  • Fixed low-pass crossover
  • Variable high-pass crossover
  • Variable bass boost
  • Frequency resp: 6 Hz to 50 kHz ± 1 dB
  • Signal to noise ratio: 103 dB
  • Channel separation: 90 dB
  • 2 Ohm stable stereo operation
  • 4 Ohm stable bridged operation
    Inputs and Outputs:
  • 2 - Nickel-plated RCA low level inputs (150 mV - 4 V)
  • 2 - 4 Wire speaker level inputs (5V - 10 V)
  • Input sensitivity is 150 mV to 4V
  • 18 AWG speaker connections
  • 8 AWG power connections
    Max Power Output:
  • 2-Ohms: 400 watts x 2 channel
  • 4-Ohms: 200 watts x 2 channel
    RMS Power Output:
  • 4-Ohms: 150 watts x 2 channel
  • 2-Ohms: 300 watts x 2 channel
  • 4-Ohms: 800 watts x 1 channel
    Built in Crossover:
  • Fixed high-pass filter: 80 Hz @ 12 dB/octave
  • Variable low-pass filter: 50 Hz - 250 Hz Hz @ 12 dB/octave
  • All Pass
    Dimensions:
  • Overall Dimensions: 8.75” (L) x 2.25” (H) x 7.375” (W)
    Current consumption:
  • Recommended Fuse: 25 amp

Technical Specifications

Manufacturer Boss Audio
Part Number BR800
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total Peak Power Output 800 watts
Total RMS Power Output 300 watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 4 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge N/A
UPC Code 791489123112
