Discontinued - CE Labs CAT5TX Cat-5 to Component Video Active Balun with Audio - Transmitter

Discontinued - CE Labs CAT5TX Cat-5 to Component Video Active Balun with Audio - Transmitter

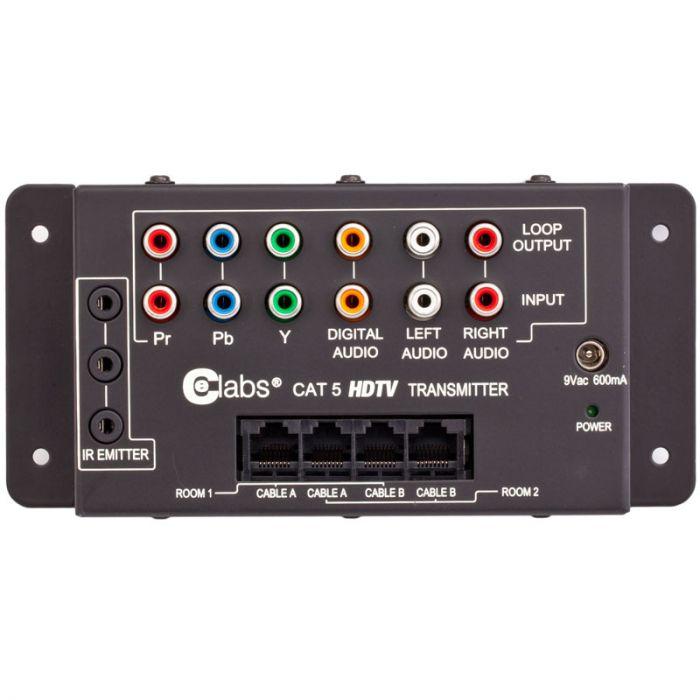

CE Labs CAT5TX Cat-5 to Component Video Active Transmitter Balun with Audio - Top

More Views

Item sku:CAT5TX
CE Labs

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

CE Labs CAT5TX Product Highlights

Discontinued - CE Labs CAT5TX Cat-5 to Component Video Active Balun with Audio - Transmitter

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Receiver balun, AC adapter, and Instruction manual

CE Labs CAT5TX Cat-5 to Component Video Active Balun with Audio - Transmitter

Features
  • Distributes HD component video with digital or left/right audio over CAT-5 or CAT-6 wire
  • Requires two CAT-5 or CAT-6 cables for transmission of video and 2-channel analog audio
  • System can be configured to run on a single CAT-5 cable with video transmission and digital audio
  • Passive IR jacks for connection to external IR system such as Xantech
  • Sends signals up to 500 ft to 2 different locations - Requires two receivers
  • Loop-thru allows use of additional transmitters for more locations
  • Use CAT5TX transmitter unit & CAT5TX receiver unit together to complete system
  • Requires 568A Ethernet wiring
  • Transmitter unit


Connector Pin-out Cable A
  • Pin 1 - Video Pr (+)
  • Pin 2 - Video Pr (-)
  • Pin 3 - Video Pb (+)
  • Pin 4 - Video Y (+)
  • Pin 5 - Video Y (-)
  • Pin 6 - Video Pb (-)
  • Pin 7 - IR Sleeve
  • Pin 8 - IR Tip


Connector Pin-out Cable B
  • Pin 1 - Audio Left (+)
  • Pin 2 - Audio Left (-)
  • Pin 3 - Audio Right (+)
  • Pin 4 - IR Ring
  • Pin 5 - Ground
  • Pin 6 - Audio Right (-)
  • Pin 7 - Digital Audio (+)
  • Pin 8 - Digital Audio (-)


One Cable Connection
  • Supports component video and digital audio only
  • A-Cable must be split out, by removing Brown and Brown white wire and crimping to second RJ-45 jack


IR Jacks
  • Supports direct pass through, requires third party IR system that utilizes 3 wire systems with 3.5mm connections
  • Passive jacks and no power is supplied, third party system must be compatible with full length cable run


Quick Specifications
  • Maximum range on CAT-5 cable: 300 feet @ 1080i
  • Maximum range on CAT-6 cable: 500 feet @ 1080i
  • Video isolation port to port: >65dB
  • Video isolation out to input: >80dB
  • Return loss: >30dB
  • Video bandwidth >50 MHz (HDTV requires 37MHz minimum)
  • Audio input impedance: 22K ohm
  • Audio output impedance: 1K ohm
  • Audio Frequency response: 20Hz - 20kHz
  • Audio signal to noise ratio: 80dB @ 1 volt output

Technical Specifications

Manufacturer CE Labs
Part Number CAT5TX
Wire Size N/A
Cable length 300 Feet
Cable Type Component Video
Color Black
UL/Compliance Rating No
Warranty 1 Year
UPC Code 617190002112
