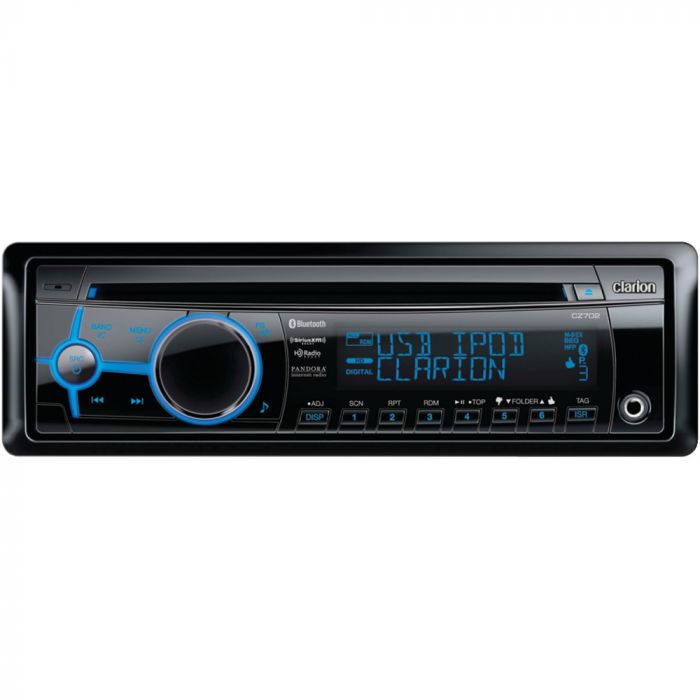

DISCONTINUED - Clarion CZ702 Single-Din In-Dash CD/MP3/WMA Receiver with Rear USB Port and Bluetooth
Expert Knowledge
Talk to a specialist
Clarion CZ702 Single-Din In-Dash CD/MP3/WMA Receiver with Rear USB Port & Bluetooth®
- Single-DIN in-dash CD receiver with Bluetooth®
- 50W × 4
- CD, USB, MP3 & WMA playback
- Built-in Parrot® Bluetooth® Interface—HFP, HSP, A2DP, AVRCP & PBAP
- Built-in microphone & external microphone ready with optional RCB199
- AM/FM radio
- SiriusXM™-ready with optional SiriusXM™-connect vehicle tuner
- HD Radio® ready with iTunes® tagging with optional THD301
- Subwoofer volume control
- Built-in high & low pass filters
- Beat EQ Plus for sound adjustment
- OEM steering wheel remote ready
- 6-channel/5V RCA output
- Digital time alignment control & 3-way crossover
- Front 3.5mm A/V inputs
- Pandora® Internet radio station link with USB using Pandora® app
- 24-bit D/A converter
- Rear USB port with iPod® direct connect capabilities
- Includes wireless remote
| Manufacturer | Clarion |
|---|---|
| Part Number | CZ702 |
| Chassis Size | Single DIN |
| Illumination color | Full Color |
| Faceplate features | Detachable face plate |
| Disc Playback | No |
| Anti-Shock | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | Optional |
| Radio Data Service - RDS | Yes |
| Satellite Radio | Sirius XM Ready |
| Front mounted auxiliary input | 3.5 mm audio/video input |
| USB input | Yes |
| SD Card input | No |
| Audio Formats | Mpeg-3, WMA |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 5 volts |
| Steering Wheel Control | Yes, requires external module |
| Built in Crossover | High-pass, Low-pass |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| UPC Code | 729218019740 |
| Return period | 30 days |
| Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
