DISCONTINUED - Kenwood DDX23BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

DISCONTINUED - Kenwood DDX23BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

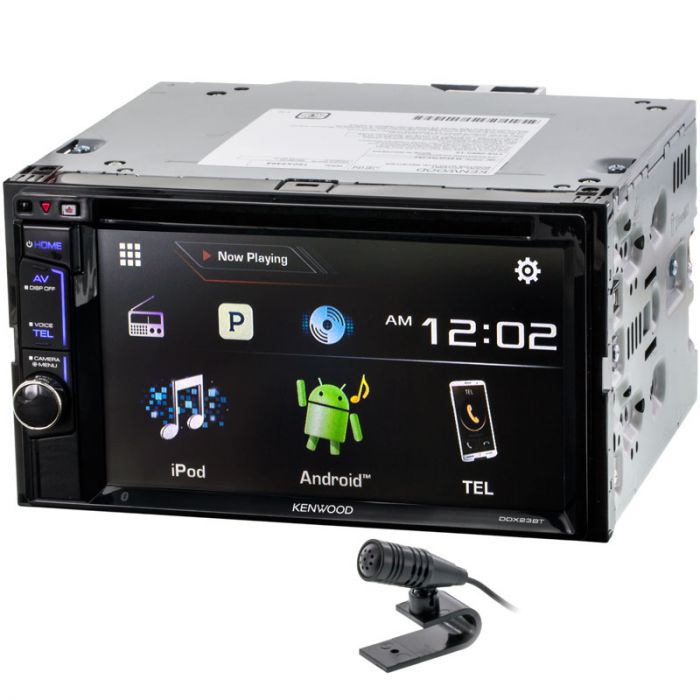

Kenwood DDX23BT Double DIN Car Stereo - Main



More Views

Kenwood
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Kenwood DDX23BT Product Highlights

  • 6.2 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor
  • Built in DVD Player
  • Back up camera input with adjustable parking grid lines
  • Full DSP with time alignment, 13 band EQ, Drive EQ, and Crossovers
  • Built in Bluetooth
  • Variable button illumination for perfect matching of your factory button color
  • Pandora Radio App Compatible from iPod touch, iPhone, Android or Blackberry
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Double DIN radio, Wiring harness, Parking brake extension, Mounting hardware, Back strap, USB cable, External microphone, and Instruction manual

    Kenwood DDX23BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

    Features:
    • 6.2 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor
    • LCD screen Resolution: 800 x 480 Pixels
    • Variable button illumination for perfect matching of your factory button color
    • Customizable background and menus (JPEG / PNG / BMP file support)
    • Multi-language menu (18 Languages (English, Spanish, French and others)
    • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
    • Optional remote control KNA-RCDV331
    • Displays CD text and MP3 ID3 Tag including title, artist & album
    • iPod and Iphone interface control with Apple USB cable
    • Built in adjustable parking grid lines with color coded guide
    • Android Rapid Charge
    • Compatible Kenwood Music Play Android App
    • iPod interface control (30 Pin connector) with optional KCA-iP102 cable
    • iPod interface control (Lightning connector) with optional KCA-iP103 cable


    Media playback features:
    • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4, WMA
    • Region 1 DVD player
    • Electronic shock protection with built in buffer
    • MP3/WMA/iTunes AAC Audio Playback on CD/DVD/USB Card
    • MP3 ID3 tag information, display artist and song information
    • JPEG / PNG / BMP image playback on USB or DVD
    • H.264/WMV Video Playback on CD/DVD/USB/SD Card
    • Linear PCM decoder for excellent digital audio quality
    • MPEG-1, MPEG-2, MPEG-4 Decoder for playback of nearly any digital file
    • Pandora Radio App Compatible from iPod touch, iPhone, Android or Blackberry


    Audio features:
    • 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
    • 13-band parametric equalizer with 8 preset and custom options (User / Natural / Rock / Pops / Easy / Powerful / Top 40 / Jazz)
    • Adjustable frequency centers and Q factor (1.35 / 1.5 / 2.0)
    • High-Pass filter with variable slopes and crossover frequencies (Adjustable from 30 to 250 Hz) and (Adjustable from -6dB / -12dB / -18dB / -24dB)
    • Variable subwoofer level control (-50dB to +10dB) with selectable Low-Pass digital crossover filter (Adjustable from 50 to 120 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB / -24dB)
    • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
    • Loudness function (Boost bass and upper frequencies)
    • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
    • Digital time alignment with independent front, rear, and subwoofer delay


    Tuner features:
    • Includes AM & FM tuner with 24 preset stations memory
    • RDS (Radio data service) Tuner


    Bluetooth features:
    • Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
    • SSP: Secure Simple Pairing
    • SDP: Service Discovery Profile
    • GAP: Generic Access Profile
    • External microphone with 10 foot cord for optimal placement
    • Bluetooth 3.0+ EDR certified
    • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
    • Full text message support during calls


    Inputs and outputs:
    • 3 - 2.5V preamp outputs (Front, Rear and Subwoofer)
    • 1 - Rear Camera input
    • 1 - Rear Video output to connect to an external monitors
    • 1 - 3.5mm rear audio video input for connection to external source
    • 1 - Rear USB connection
    • 1 - Rear microphone input
    • 1 - Steering wheel control input requires ASWC steering wheel interface


    Dimensions:
    • Double DIN chassis
    • Dimensions: 7"W x 7-1/8"D x 3-15/16"H

Technical Specifications

Manufacturer Kenwood
Part Number DDX23BT
Chassis Size Double DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
LCD Screen Size 5 inch - 6 inch
Illumination color Full Color
LCD Screen Brightness 400 Nit
Swivel Screen No
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input No
Back up camera input Yes
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input None
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control No
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
SD Card input No
USB input Yes
HDMI input No
HDMI output No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
NTSC/PAL NTSC only
Audio Formats AAC, Mpeg-3, WAV, WMA
Video Formats Divx, H.264, JPEG, MPEG-1, MPEG-2, MPEG-4, WMV
MP3 Playback Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Navigation No
GPS Maps No
Text to Speech No
Traffic Tuner No
Points of Interest No
Integration Module No
Steering Wheel Control Input Yes, requires external module
Wireless Remote Control Optional
TV Tuner No Tuner
VGA input No - VGA input
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 019048213709

Write Your Own Review

You're reviewing: DISCONTINUED - Kenwood DDX23BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Rickie Charles, Sunday, December 10, 2017

Question:

How do I get music videos that I download and converted from YouTube to play on my pioneer receiver? What is the best file that I should use to play this file from my USB (Thumb drive)?

Answers:

  • Posted by Store Owner on Tuesday, December 12, 2017
    A:

    You will need to check to see what files are compatible with your receiver. With that you can use a video conversion program to convert the video files to the supported resolution and encoding.

    Most newer receivers support MP4, older receivers support MP2. Keep in mind, that you will need to verify the max resolution the receiver supports, some accept full HD some accept only 480p.

    Below is a sample instruction manual that demonstrates compatible video files

    Sample accepted video files and resolutions for USB thumbdrives
