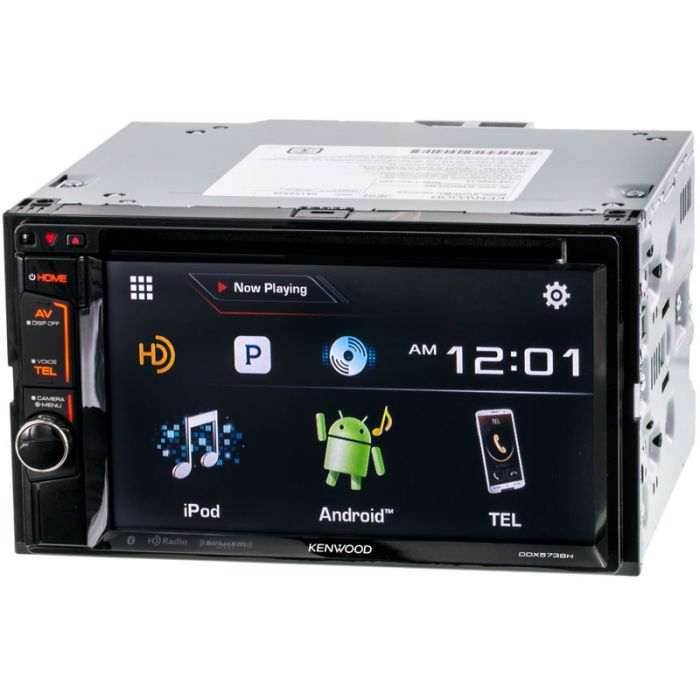

DISCONTINUED - Kenwood DDX573BH Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth, HD Radio

$267.99
Out of stock
SKU
DDX573BH

Key Features

  • 6.2 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor
  • Built in DVD Player
  • Dual camera inputs with adjustable parking grid lines
  • Full DSP with time alignment, 13 band EQ, Drive EQ, and Crossovers
  • Built in Bluetooth
  • Compatible with iDataLink Maestro RR for full integration with your vehicle systems
  • Variable button illumination for perfect matching of your factory button color
  • HD Radio
  • SiriusXM radio ready
  • Pandora Radio App Compatible from iPod touch, iPhone, Android or Blackberry
Unit includes: Double DIN radio, Wiring harness, GPS Receiver, Parking brake extension, Mounting hardware, Back strap, USB cable, External microphone, and Instruction manual

Kenwood DDX573BH Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth, Radio

Features:
  • 6.2 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor with Apple CarPlay
  • Touch screen control
  • LCD screen Resolution: 800 x 480 Pixels
  • Variable button illumination for perfect matching of your factory button color
  • Customizable background and menus (JPEG / PNG / BMP file support)
  • Multi-language menu (18 Languages (English, Spanish, French and others)
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • App Mode for iPhone allows you to directly control compatible apps from the radio
  • Optional remote control KNA-RCDV331
  • Compatible with iDataLink Maestro RR for full integration with your vehicle systems
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Security key feature to prevent use after theft
  • iPod and Iphone interface control with Apple USB cable
  • Built in adjustable parking grid lines with color coded guide
  • Android Rapid Charge
  • Compatible Kenwood Music Play Android App
  • iPod interface control (30 Pin connector) with optional KCA-iP102 cable
  • iPod interface control (Lightning connector) with optional KCA-iP103 cable


Media playback features:
  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4 WMA, DivX, and AVI
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WMA/iTunes AAC Audio Playback on CD/DVD/USB Card
  • MP3 ID3 tag information, display artist and song information
  • JPEG / PNG / BMP image playback on USB or DVD
  • H.264/WMV Video Playback on CD/DVD/USB/SD Card
  • Linear PCM decoder for excellent digital audio quality
  • MPEG-1, MPEG-2, MPEG-4 Decoder for playback of nearly any digital file
  • Pandora Radio App Compatible from iPod touch, iPhone
  • Pandora Radio App Compatible from Android or Blackberry through Bluetooth


Audio features:
  • 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
  • 5-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / Top 40 / Jazz)
  • High-Pass filter with variable slopes and crossover frequencies (Adjustable from 50 to 220 Hz) and (Adjustable from -6dB / -12dB / -18dB / -24dB)
  • Variable subwoofer level control (-50dB to +10dB) with selectable Low-Pass digital crossover filter (Adjustable from 50 to 120 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB / -24dB)
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
  • Digital time alignment with independent front, rear, and subwoofer delay


Tuner features:
  • Includes HD Radio AM & FM tuner with 24 preset stations memory
  • RDS (Radio data service) Tuner
  • SiriusXM radio ready with SXV300 Sirius XM tuner


Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • SSP: Secure Simple Pairing
  • SDP: Service Discovery Profile
  • GAP: Generic Access Profile
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 3.0+ EDR certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
  • Full text message support during calls
  • Siri Eyes Free voice support


Inputs and outputs:
  • 3 - 4V preamp outputs (Front, Rear and Subwoofer)
  • 1 - Rear Camera input
  • 1 - Front Camera input
  • 1 - Rear Video output to connect to an external monitors
  • 1 - 3.5mm rear audio video input for connection to external source
  • 1 - 3.5mm iPod audio video input
  • 1 - iDatalink Maestro input and output
  • 1 - SiriusXM radio tuner input
  • 1 - Rear USB connection
  • 1 - Rear microphone input
  • 1 - Steering wheel control input requires ASWC steering wheel interface


Dimensions:
  • Double DIN chassis
  • Dimensions: 7"W x 7-1/8"D x 3-15/16"H
More Information
Manufacturer Kenwood
Part Number DDX573BH
Chassis Size Double DIN
Faceplate features Security Code
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 4 volts
LCD Screen Size 5 inch - 6 inch
Illumination color Full Color
LCD Screen Brightness 400 Nit
Swivel Screen No
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Back up camera input Yes
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input None
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control No
SD Card input No
USB input Yes
HDMI input No
HDMI output No
Smartphone Compatible Yes
Modulation NTSC only
Audio Formats AAC, Mpeg-3, WAV, WMA
Video Formats Divx, H.264, JPEG, MPEG-1, MPEG-2, MPEG-4, WMV
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio Yes
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
Navigation No
Integration Module iDataLink Maestro RR
Steering Wheel Control Yes, requires external module
Wireless Remote Control Optional
Operation Voltage 12-15 Volt DC
CEA2006 Compliant No
Warranty 1 Year
UPC Code 019048213723
Return period 30 days
Exchange period 30 days
