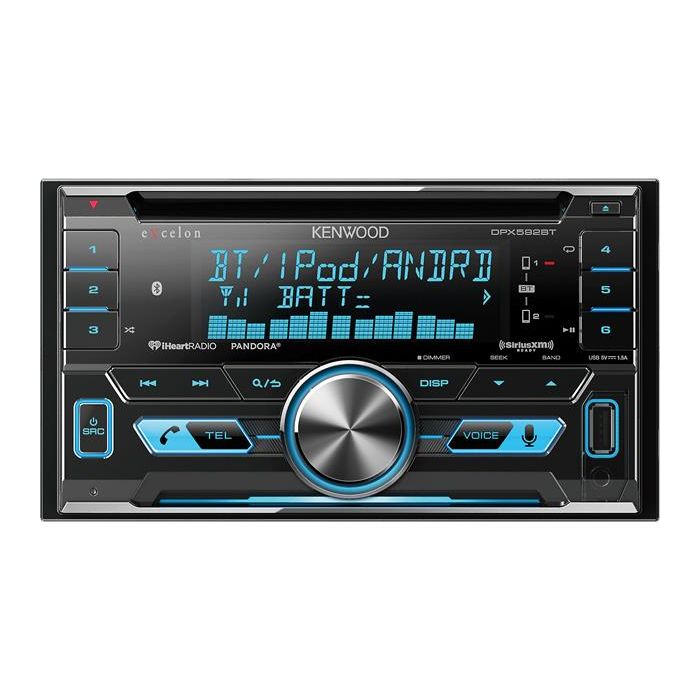

DISCONTINUED - Kenwood eXcelon DPX592BT Double DIN Car Stereo Receiver with Bluetooth

$139.99
Out of stock
SKU
DPX592BT

Key Features

This item has been discontinued.
Click here for new model.

Unit includes: Double DIN radio, Remote control, External microphone, Wiring harness, Mounting hardware, Mounting cage, and Instruction manual

Kenwood eXcelon DPX592BT Double DIN Car Stereo receiver
    Features:
  • Double DIN in-dash receiver
  • Built in Bluetooth wireless audio streaming and hands free
  • Music Mix: Up to 5 Bluetooth devices can be connected to the head unit at the same
  • 2 Phones Full-Time Connection
  • Kenwood App Remote lets you control receiver settings with your smartphone
  • Variable Color illumination: 2 Zone Control
  • Spanish Menu
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • 12 hours or 24 hours clock display
  • Displays text, tags and titles for artist and album
  • 13 Digit 1.5Line LCD Display
  • SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
  • Wireless or wired Pandora Control for iPhone and Android
  • Wireless or wired Spotify Control for iPhone and Android
    Media playback features:
  • Plays CD-RW, CD-R, MP3, AAC, WAV, FLAC, and WMA
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WMA/WAV/WMV/AAC/FLAC Playback on CD/USB
  • Displays text, tags and titles for artist and album
  • Linear PCM 96kHz/24-Bit/32-bit decoder for excellent digital audio quality
    Audio features:
  • 13-band parametric equalizer with 8 preset and custom options (Drive EQ / Flat / Rock / Pops / Easy / Powerful / Top 40 / Jazz) and (Adjustable from ±9dB)
  • High-Pass filter with variable slopes and crossover frequencies (Adjustable from 50 to 220 Hz) and (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
  • Low-Pass filter with variable slopes and crossover frequencies (Adjustable from 50 to 120 Hz) and (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
  • Variable subwoofer level control (-50dB to +10dB) with selectable low-Pass digital crossover filter (Adjustable from 50 to 120 Hz) with variable slopes (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
  • Digital time alignment with independent front, rear, and subwoofer delay
  • High-resolution audio playback 96kHz/24-Bit audio with K2 audio technology
  • Subwoofer Level
    Tuner features:
  • HD AM & FM radio tuner with 20 preset stations memory
  • RDS (Radio data service) Tuner
  • AME (Automatic Memory Entry), Up/Down Seek Tuning
  • SiriusXm radio ready with SXV300 Sirius XM tuner
    Bluetooth features:
  • Integrated Bluetooth 3.0 technology facilitates convenient hands-free phone calls and high quality audio streaming
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 3.0+ EDR certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
  • Includes wired microphone for optimal placement
    Inputs and outputs:
  • 3 - 4V preamp outputs (Front, Rear and Subwoofer)
  • 1 - Satellite Radio
  • 1 - Front USB connection accepts up to a 64Gb
  • 1 - Rear USB connection accepts up to a 64Gb
  • 1 - Front 3.5mm AUX
  • 1 - iPod AV In
  • 1 - Radio Antenna
  • 1 - Steering wheel control input requires ASWC steering wheel interface
    Dimensions:
  • Double DIN chassis
  • Dimensions: 7"W x 6-1/4"D x 3-15/16"H
More Information
Manufacturer Kenwood
Part Number DPX592BT
Chassis Size Double DIN
Illumination color Blue
Faceplate features None
Disc Playback CD
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
Front mounted auxiliary input 3.5 mm audio input
Audio Video inputs 1 Audio Input
USB input Yes
SD Card input No
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 4 volts
Steering Wheel Control Yes, requires external module
Built in Crossover High-pass, Low-pass
Wireless Remote Control Yes
Warranty 1 Year
UPC Code 019048214966
Return period 30 days
Exchange period 30 days
