DISCONTINUED - Pioneer FH-X820BS Double-DIN In-Dash CD Receiver with USB control for iPod / iPhone, Bluetooth SiriusXM-Ready, and Pandora
Expert Knowledge
Talk to a specialist
- Double-DIN in-dash CD receiver
- Custom color illumination
- Built-In MOSFET 50W x 4 Amplifier
- iPhone and Android Pandora support
- 3 sets of 2 volt RCA outputs
- Built in Bluetooth
- SiriusXM radio ready
- Siri Eyes Free
- Front USB connection
- Front 3.5mm Audio connection
- Steering wheel control input

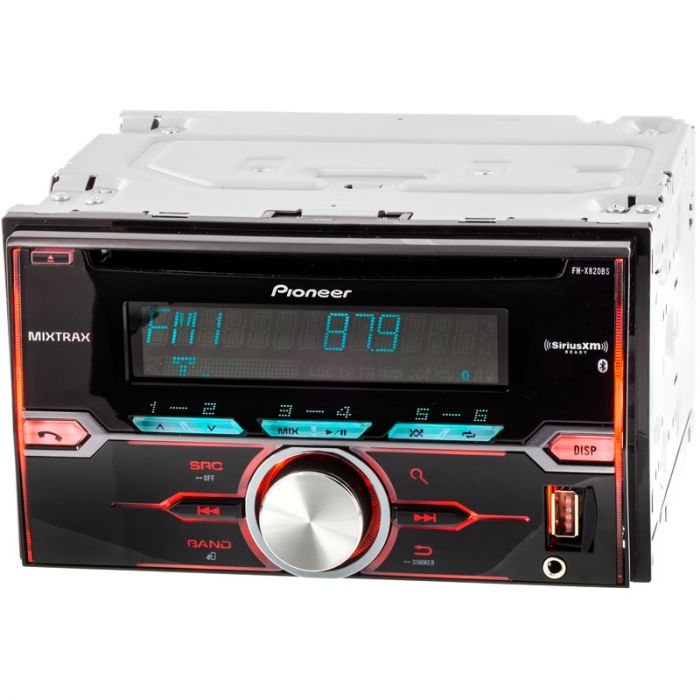

Pioneer FH-X820BS Double-DIN In-Dash CD Receiver
- Features:
- Double DIN In-Dash CD receiver
- Multi-Segmented 2-Line LCD Display with LED Backlight
- Full color custom illumination with dual zone color control and up to 210,000 possible colors
- Built in Bluetooth with A2DP for wireless audio streaming
- AM/FM radio tuner
- Voice control for iphone, tell your car stereo who to call or what station to listen to
- iPod and iPhone control with standard USB to lightning interface cable, simply connect your iPhone or iPod touch and access your entire music library
- Pandora support for both iPhone and Android with CD-IU52 or CD-MU200 interface cable, simply connect your iPhone or iPod touch and stream Pandora
- Power Output: 4 channels x 50 watts peak and 4 channels x 22 watts RMS
- MP3, WAV & WMA playback from CD's and USB
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch screen
- Enjoy Your Favorite Music in a Non-Stop Mix with MIXTRAX
- Advanced Sound Retriever
- Siri Eyes Free
- Dual simultaneous phone pairing with guest mode
- Steering wheel control input
- Audio features:
- Plays CD, CD-R, CD-RW, MP3, ACC, WAC and WMA
- Electronic shock protection with built in buffer
- Includes Supertuner IIID AM & FM tuner with 18 FM station 12 AM presets memory
- Controls: Volume, Fader, Bass, Treble, Balance
- 5-band Graphic equalizer with 6 preset and 1 custom options
- Variable subwoofer level control with selectable Low-Pass digital crossover filter 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz with 6db or 12db slopes
- Bass Boost
- Normal and Reverse subwoofer phase control
- CD text information, display artist and song information
- MP3 ID3 tag information, display artist and song information
- 24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
- 3 Loudness modes
- Tuner features:
- Includes AM & FM tuner with 24 preset stations memory
- Best Station Memory (BSM)
- iTunes tagging
- RDS (Radio data service) Tuner
- SiriusXm radio ready with SXV300 Sirius XM tuner
- SiriusXM Tune Start & Tune Scan
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- External microphone for optimal placement
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Inputs and outputs:
- 3 Sets of 2V preamp outputs (front, rear and mono subwoofer)
- 1 - Front USB connection accepts up to a 32Gb
- 1 - Front 3.5mm Audio connection for connection to multiple devices
- 1 - Rear Steering wheel interface control input
- Dimensions:
- Double DIN chassis
- Dimensions: 7"W x 7-1/4"D x 4"H
| Manufacturer | Pioneer |
|---|---|
| Part Number | FH-X820BS |
| Chassis Size | Double DIN |
| Illumination color | Full Color |
| Faceplate features | None |
| Disc Playback | CD |
| Anti-Shock | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | Sirius XM Ready |
| Front mounted auxiliary input | 3.5 mm audio input |
| USB input | Yes |
| SD Card input | No |
| Audio Formats | Mpeg-3, WAV, WMA |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 2 volts |
| Steering Wheel Control | Yes, requires external module |
| Built in Crossover | High-pass, Low-pass |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| UPC Code | 884938259965 |
| Return period | 30 days |
| Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
