Discontinued - Pioneer GM-3500T 400 Watt Class AB 2-Channel Car Amplifier

Discontinued - Pioneer GM-3500T 400 Watt Class AB 2-Channel Car Amplifier

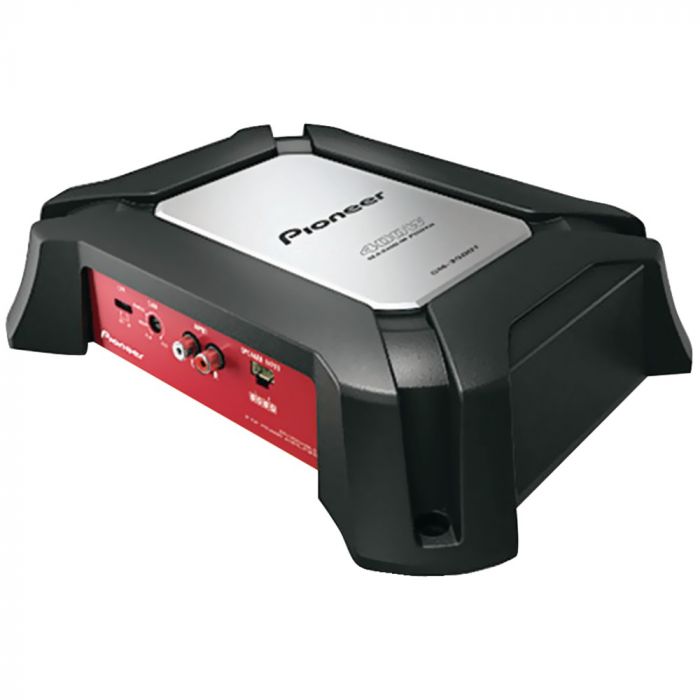

Pioneer GM-3500T GM Series 2-Channel 400 Watt Bridgeable Amplifier - Top View

More Views

Pioneer
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Pioneer GM-3500T Product Highlights

Discontinued - Pioneer GM-3500T 400 Watt Class AB 2-Channel Car Amplifier
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Car Amplifier, Hardware, and Instruction manual

Pioneer GM-3500T 400 Watt Class AB 2-Channel Car Amplifier features:
  • 400 Watts Max Power
  • Pulse Width Modulated MOSFET Power supply
  • Small Design for Versatile Installation Options without compromising sound quality
  • Low Pass filter allows you to adjust the playback frequencies from either full range or 80 Hz with 12dB per octave slopes.
  • Speaker level inputs allow you to connect this Car Amplifier to an stereo system that do not have RCA outputs. The is very typical for OEM head-units and you can now avoid adding separate line level converters.
  • Bridge mode allows to run this as a single channel amplifier
  • 2 channel RCA inputs accepts up to 4 volt input signals
  • RCA Pass through outputs to connect multiple amplifiers in series
  • Nickel plated screw terminal connections for Power Inputs and Speaker level outputs
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 85 W x 2
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 60 W x 2
  • Continuous Power Output Bridged (4 Ω): 185 W x 1
  • Frequency Response: 10Hz to 70kHz
  • Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)
  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >98dB
  • Dimensions: 11 3/8" (W) x 2 1/2" (H) x 8 5/8" (D)

Technical Specifications

Manufacturer Pioneer
Part Number GM-3500T
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total Peak Power Output 400 watts
Total RMS Power Output 200 watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs No
Preamp voltage No
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge N/A
UPC Code 884938136365
