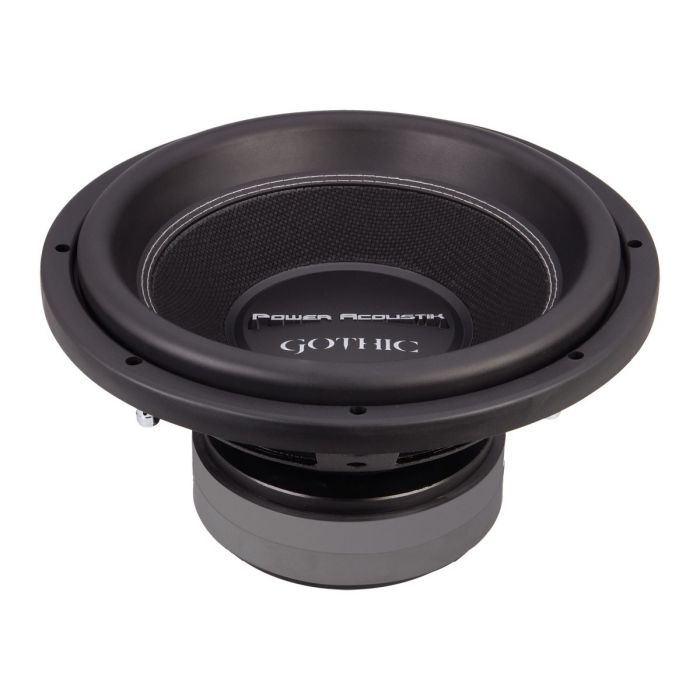

Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer - 2 ohm Dual voice coil

Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer - 2 ohm Dual voice coil

Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer - 2 ohm Dual voice coil



More Views

Power Acoustik
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Power Acoustik GW3-12 Product Highlights

  • 12 inch Subwoofer with 2 ohm Dual voice coil
  • Oversized 254 ounce magnet and motor structure for extreme power handling
  • Twisted & Woven Flax Fiber Cone
  • Extended Excursion NBR Surround
  • 1001 - 1500 Watts RMS power handling
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit Includes: 12 inch Dual 2 ohm voice coil subwoofer, Mounting Hardware, and Instruction manual

Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer - 2 ohm Dual voice coil
    Features:
  • 12 inch Subwoofer with dual 2 ohm voicecoils
  • Oversized 254 ounce magnet and motor structure for extreme power handling and output
  • Overcompensating Motor Structure for Increased Magnetic Strength
  • 12mm T-Yoke & Top Plate Improve Low-Frequency Dynamics
  • Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up
  • Die Cast Aluminum Heat Sink Dust Cap Absorbs Voice Coil Heat
  • Aluminum Dust Cap Fins Dissipate Heat & Strengthen Cone
  • Non-Magnetic Non-Resonate Die-Cast Aluminum Frame
  • 5” 4-Layer Voice Coil w/ Large Gauge Wire Increases Power
  • High-Temperature Tolerance Adhesives Resist Thermal Failure
  • Nickel Plated 8ga Spring-Loaded Compression Wire Terminals
  • Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection
  • High-Density Polyether Foam Surround w/ UV & Chemical Protection
  • Dual Poly-Cotton Suspension Dampen Violent Accelerations
  • Stitched Voice Coil Leads Prevent Potential Damage
  • 1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included
  • Instruction Manual - Power Acoustik GW3-12 Gothic Series 12 inch Subwoofer
  • Sold Individually
    Power Handling Max:
  • 2500 Watts maximum power handling
    Power Handling RMS:
  • 1001 - 1500 Watts nominal continuous power handling RMS
    Quick Specs:
  • Impedance: 2 ohm Ohm per coil
  • Frequency response: 25Hz - 250Hz
  • Sensitivity: 83.6 dB @ 1Watt / 1meter
    Dimensions:

  • Mounting Depth:6.5 inches
  • Mounting Diameter: 11.5inches

Technical Specifications

Manufacturer Power Acoustik
Part Number GW3-12
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 2 ohm
FS 34.29
QES 1.57
QMS 5.29
QTS 1.21
RE 2.14
VAS 2.14 ft3
Xmax (millimeters) 0
Sensitivity 83.6 dB
Frequency Response 25Hz - 250Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 1001 - 1500 Watts
Power Handling Peak 2500 Watts
Shallow Mount Subwoofer No
Mounting Depth $6.50
Cutout Dimensions $11.50
Sealed Enclosure Recommended Size 1.5
Ported Enclosure Recommended Size 2.25
Color Black
Warranty 1 Year
UPC Code 709483046450
