Unit includes: HYBL-01 Interface control box, 16 pin wire harness, Steering wheel interface, Hyundai harness, and Instruction manual

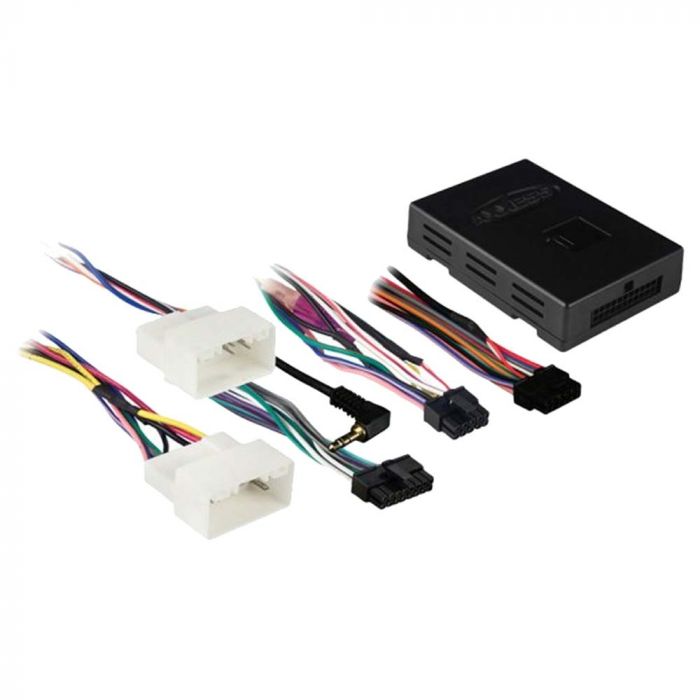

Axxess HYBL-01 Interface for 2010 - and Up Hyundai Sonata with Blue Link
The HYBL-01 interface is designed to allow you to install an aftermarket radio into 2010 and up Hyundai Sonata with Blue Link. The HYBL-01 is designed to integrate the new radio to the factory speakers and databus system. The interface retains full functionality of the Blue Link system as well as all safety and warning chimes.
The HYBL-01 also provides navigation outputs so that you can easily install an aftermarket navigation system and not have to search for VSS or backup lead. This interface has the capability of retaining the factory aux jack and is pre-wired for steering wheel controls.
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Retains Blue Link information system
- Provides navigation outputs for easy connection to aftermarket navigation systems (parking brake, reverse, mute, V.S.S.)
- Used in Non-amplified audio system vehicles or if replacing the factory amplifier
- Interface can be updated with USB
- Retains factory auxiliary input
- ASWC-1 harness included (ASWC-1 not included)
- Retains balance and fade
- High level speaker input
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange/White – Dash Light Dimmer/Illumination
- Blue/White – Amplifier turn on
- Brown - Mute connection
- Light green – (-) Parking brake lead
- Blue/Pink – VSS (Vehicle speed sensor)
- Black/Yellow - Hyundai volume adjustment
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- Green/Purple – (+) Reverse trigger
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
