iPark IPTSF400 Parking Assist System with 4 front sensors and Speaker

iPark IPTSF400 Parking Assist System with 4 front sensors and Speaker

iPark IPTSR400 Backup sensor with four sensors - Main

More Views

iPark
Ships Free!

Overall Rating 0 (Based on 0 reviews)

iPark IPTSF400 Product Highlights

  • Complete front bumper sensor system without display (Display optional)
  • System indicates distance to obstruction with audible beeps that vary in duration, from short beeps to a continuous tone when close to an obstruction
  • 4 front sensors provide complete front bumper protection
  • All Weather rated
  • Intelligent learning function, great for cars with tow-bar or other protrusion
  • Self-test function to prevent false alarms
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

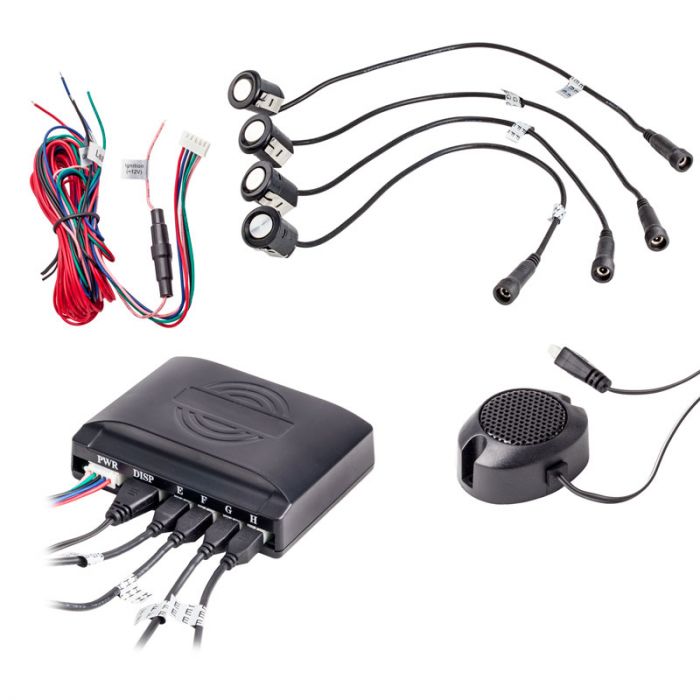

Unit includes: 4 Front bumper Sensors, ECU Control Box, Speaker, Wiring Harness, Hole Saw and Instruction Manual

iPark IPTSF400 Parking Assist System with 4 front sensors and Speaker
    Features:
  • Complete front bumper sensor system without display (Display optional)
  • System indicates distance to obstruction with audible beeps that vary in duration, from short beeps to a continuous tone when close to an obstruction
  • 4 front bumper sensors provide complete front bumper protection
  • Sensors have angled base for proper angle on nearly any bumper
  • Waterproof screw connectors to extension cables for years of use in inclimate weather
  • Intelligent learning function, great for cars with tow-bar, or other protrusion
  • Self-test function to prevent false alarms
  • Fits any vehicle with elegant OEM quality sensors that can be painted to match any vehicle
  • Designed for plastic bumpers (Can be specially ordered for metal bumpers requires 25 mm sensors)
    Distance indication:
  • 3-stage audible alert buzzer for distance indication
  • 6.5 feet to 4 feet: Slow BEEP - BEEP - BEEP
  • 4 feet to 2 feet: Faster BEEP BEEP
  • 2 feet to 0 feet: Constant BEEP
    Electrical connections:
  • Red wire: 12 volts + connection to reverse light (Used to indicate to system you are parking, triggers front sensors to work)
  • Black wire: ground connection
  • Green wire: Learning lead used during installation
  • Blue wire: Foot brake connection
  • Pink wire: 12 volt + accessory connection
    Operation limits
  • Voltage: 9-16V DC
  • Power consumption: 3.6 Watt
  • Temperature: -40°C ~ +70°C
  • Beep volume: 70 ~ 90dB
  • Range(Front): 1ft ~ 6.5ft
  • Detecting angle: Horizontal: 60° Vertical: 60°

Technical Specifications

Manufacturer iPark
Part Number IPTSF400
Sensor system type N/A
Parking Sensor system display N/A
Parking sensor display type N/A
Sensor type N/A
Sensor Size N/A
Paintable sensors N/A
Bumper material compatibility N/A
Built in Speakers Yes
Wireless Transmission No, wired connection
Operation Voltage 12 - 15 Volt DC
Color Black
Warranty 1 Year
UPC Code 656403960450
