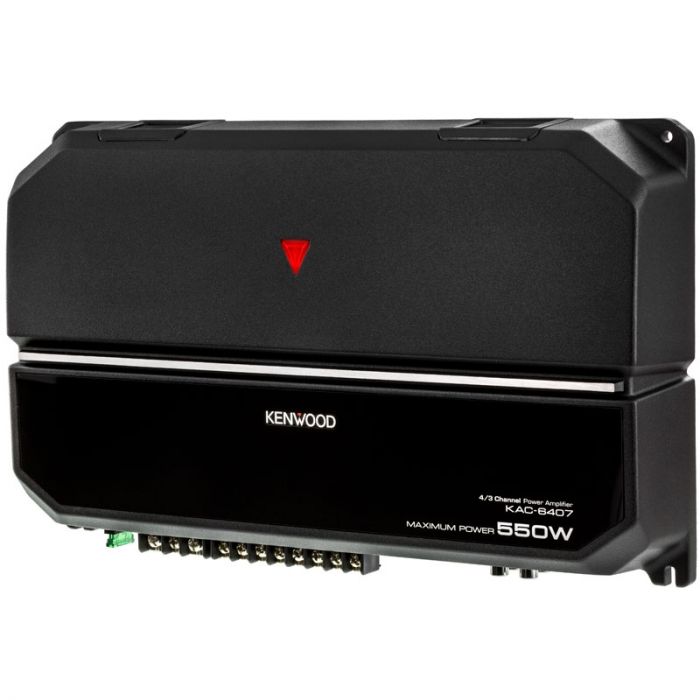

DISCONTINUED - Kenwood KAC-6407 Class-AB 4/3/2 Channel Power Amplifier
$192.99
Out of stock
SKU
KAC-6407
Expert Knowledge
Talk to a specialist
- 4 Channel class AB amplifier
- Can operate as a 4 / 3 / 2 Channel operation for ultimate system flexibility
- Speaker Level Input with signal sense turn-on for easy integration to factory audio systems
- Power MOS-FET Switching Power Supply
- Cast Aluminum Heat Sink Design
- 2 Ohms Load Capability
- CEA-2006 Compliant
Unit Includes: Power Amplifier, Mounting hardware, and Instruction manual
Kenwood KAC-6407 Class-AB 4/3/2 Channel Power Amplifier
Kenwood KAC-6407 Class-AB 4/3/2 Channel Power Amplifier
- Features
- Class AB amplifier for excellent fidelity and sound quality
- Can operate as a 4 / 3 / 2 Channel operation for ultimate system flexibility
- Power MOS-FET Switching Power Supply
- Speaker Level Input for easy integration to factory audio systems
- 2 Ohms Load Capability in Stereo mode
- Cast Aluminum Heat Sink Design
- Signal Sensing Turn-on for easy integration to factory audio systems
- Built in Variable Low-Pass Filter Channels 3 - 4 (50 Hz - 200 Hz, -24dB/oct)
- Built in Variable High-Pass Filter Channels 1 - 2 (80Hz, -12dB/oct)
- Frequency Response: 20Hz - 50kHz (+0dB, -3dB)
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable), Bridged connection 4Ω to 8Ω Allowable
- CEA-2006 Compliant
- Max Power Output
- 500 Watts
- RMS Power Output
- 40 Watts x 4 at 4 ohms
- 60 Watts x 4 at 2 ohms
- 130 Watts x 2 at 4 ohms
- Inputs and Outputs
- Battery & Ground: Screw Type Terminal Block (Ni) (M6)
- Speaker Output: Screw Type Terminal Block (Ni) (M4)
- Line-in: RCA (Ni)
- Speaker Level Input: JST Connector
- Dimensions
- 315mm x 56mm x 200mm
- 13-3/16" (W) x 2-3/16" (D) x 8-1/16" (H)
| Manufacturer | Kenwood |
|---|---|
| Part Number | KAC-6407 |
| Amplifier Topology Class | Class AB |
| Strappable Amplifier | No |
| Cooling Fan | No |
| CEA2006 Compliant | No |
| UPC Code | 019048218964 |
| Return period | 30 days |
| Exchange period | 30 days |
