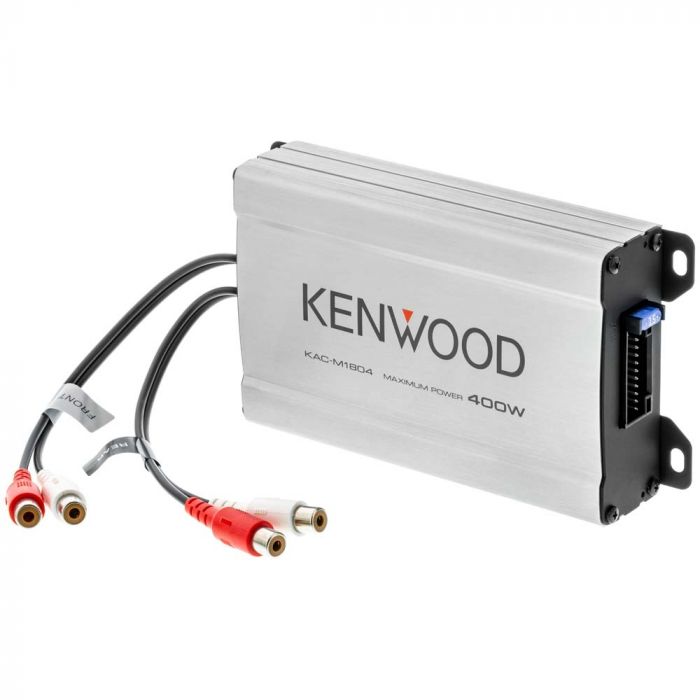

Kenwood KAC-M1804 Class-D Compact 4 Channel Class-D Marine Power Amplifier

Kenwood KAC-M1804 Class-D Compact 4 Channel Class-D Marine Power Amplifier

Kenwood KAC-M1804 4 Channel Marine Amplifier

More Views

Kenwood
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Kenwood KAC-M1804 Product Highlights

  • Class D 4-channel marine amplifier for compact size excellent efficiency
  • Conformal coated circuit board suitable for marine applications
  • Speaker Level Input with signal sense turn-on for easy integration to factory audio systems
  • Cast Aluminum Heat Sink Design
  • 4 Ohms Load Capability
  • CEA-2006 Compliant
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit Includes: Power Amplifier, Mounting hardware, and Instruction manual

Kenwood KAC-M1804 Class-D Compact 4 Channel Class-D Marine Power Amplifier

    Features
  • Class D marine amplifier for compact size excellent efficiency
  • Conformal coated circuit board suitable for marine or ATV applications
  • Amplifier is ideal for motorcycles and other vehicles where conventional amplifiers will not fit
  • Extruded aluminum heat sink design
  • Speaker Level Input for easy integration to factory audio systems
  • Signal Sensing Turn-on for easy integration to factory audio systems
  • Frequency Response: 20Hz - 20kHz (+0dB, -1dB)
  • Signal to Noise Ratio: 90dB (Reference: Rated Power into 4Ohms at 14.4V)
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (4Ω to 8Ω allowable)
  • CEA-2006 Compliant
    Max Power Output
  • 400 Watts
    RMS Power Output
  • 45 Watts x 4 at 4 ohms
    Inputs and Outputs
  • 1 - Battery & Ground
  • 4 - Speaker level inputs
  • 4 - Speaker Outputs
    Dimensions
  • 140mm x 34mm x 90mm
  • 5-1/2" (W) x 1-5/16" (D) x 3-9/16" (H)

Technical Specifications

Manufacturer Kenwood
Part Number KAC-M1804
Amplifier Topology Class Class D
Number of Channels 4 Channel
Total Peak Power Output 600 watts
Total RMS Power Output 200 watts
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode No
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs No
Preamp voltage No
Speaker level inputs Yes
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover None
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Gauge N/A
UPC Code 019048207777
