Kenwood KAC-5206 Class-AB Stereo/Bridgeable Power Amplifier

Kenwood KAC-5206 Class-AB Stereo/Bridgeable Power Amplifier

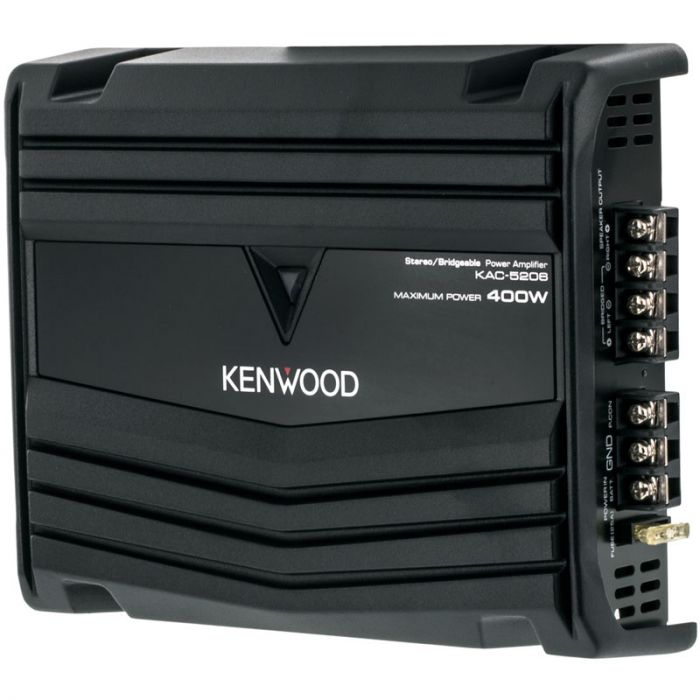

Kenwood KAC5206 Class-AB Stereo/Bridgeable Power Amplifier - Main

More Views

Item sku:KAC5206

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Kenwood KAC-5206 Product Highlights

  • Class AB Stereo/Bridgeable amplifier
  • 2 or mono channel operation
  • Power MOS-FET Switching Power Supply
  • Signal Sensing Turn-on
  • 2 Ohms Load Capability
  • Cast Aluminum Heat Sink Design
  • CEA-2006 Compliant

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!


Unit Includes: Class-AB Stereo/Bridgeable Power Amplifier

Kenwood KAC-5206 Class-AB Stereo/Bridgeable Power Amplifier

  • Class AB amplifier
  • 2 or Mono channel operation
  • 2 Ohms Load Capability
  • Power MOS-FET Switching Power Supply
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Cast Aluminum Heat Sink Design
  • Built in Low-Pass Filter (80Hz, -18dB/oct)
  • Signal to Noise Ratio: 95dB (Reference: Rated Power into 4Ohms at 14.4V)
  • Frequency Response: 5Hz-50kHz (+0dB, -3dB) Class-AB
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable), Bridged connection 4Ω to 8Ω Allowable
  • Weight (kg): 1.3 (kg)/2.8 (lbs.)
  • CEA-2006 Compliant

Max Power Output
  • 400 Watts

RMS Power Output
  • 60 Watts x 2

Inputs and Outputs
  • Battery and Ground: Screw Type Terminal Block (Ni) (M6)
  • Speaker Output: Screw Type Terminal Block (Ni) (M4)
  • Line-in: RCA (Ni)
  • Speaker Input: JST Connector

  • 225mm x 55mm x 180mm

Technical Specifications

Manufacturer Kenwood
Part Number KAC-5206
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total Peak Power Output 400 watts
Total RMS Power Output 400 watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 1 Pair
Preamp output voltage 6 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Guage N/A
UPC Code 019048206183

Customer Reviews

Really nice amp with excellent sound
Review by
Install (5 star for easy)
Really nice product. Easy to install and at a great price. I am using it to power my 3-way 6x9's and the sound quality is excellent. (Posted on 1/9/2016)

Write Your Own Review

You're reviewing: Kenwood KAC-5206 Class-AB Stereo/Bridgeable Power Amplifier

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by, Saturday, January 9, 2016


I want to add this amp to a factory audio system but I cannot find remote turn on will the auto sense feature work for auto turn on?


  • Posted by Store Owner on Saturday, January 9, 2016
    A: Yes, the auto turn on will sense an incoming audio signal either through the speaker level or RCA inputs. Once the signal is sensed it will turn the amplifier on.
