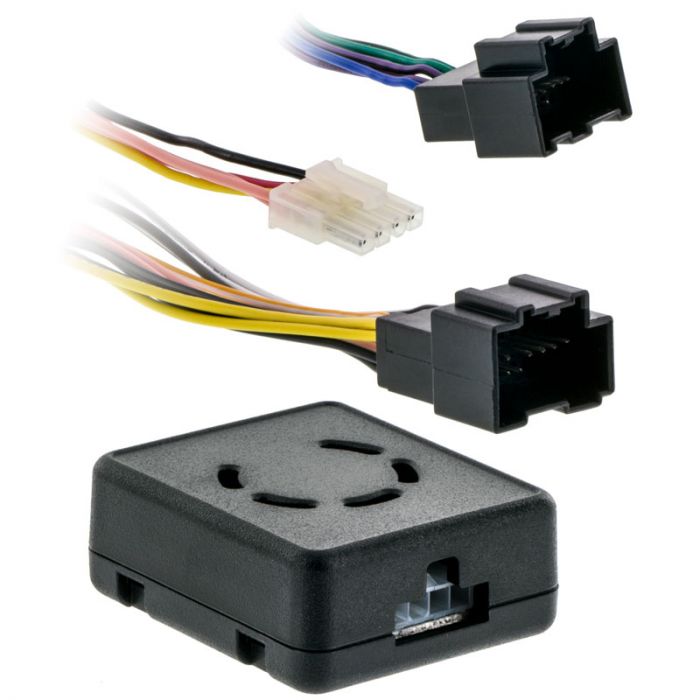

Metra LC-GMRC-LAN-03 Economy Data Bus interface with Chime Retention Speaker
$54.99
In stock
SKU
LC-GMRC-LAN-03
- Provides accessory output for databus signals (12-volt 3-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
- Retains all factory warning chimes with built in speaker
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- For select Chevrolet, Pontiac, and Saturn vehicles
Unit includes: A) LC-GMRC-LAN-03, B) 10-pin to 30 pin harness, and Instruction manual
Metra LC-GMRC-LAN-03 Economy Data Bus interface with Chime Retention Speaker
Interface Features:
Connections:
Kit Components:
Tools Required:
Optional parts:
Metra LC-GMRC-LAN-03 Economy Data Bus interface with Chime Retention Speaker
Interface Features:
- Provides accessory output for databus signals (12-volt 3-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
- Retains all factory warning chimes with built in speaker
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable
- Retains balance and fader
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange with White Stripe – Not used
- Blue – Antenna turn on
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Kit Components:
- A) LC-GMRC-LAN-03
- B) 10-pin to 30 pin harness
- C) Instruction manual
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 40-GM10 GM Antenna adapter
- 2007 - 2010 Cobalt
- 2006 - 2010 HHR
- 2008 - 2011 Malibu
- 2007 - 2008 G5
- 2006 - 2006 G6
- 2006 - 2009 Solstice
- 2006 - 2009 Aura
- 2006 - 2009 Sky
Vehicle Applications:
Chevrolet:
Pontiac:
Saturn:
Manufacturer | Metra |
---|---|
Part Number | LC-GMRC-LAN-03 |
Wiring harness function | Replace Factory Radio |
Warranty | 1 Year |
UPC Code | 086429230709 |
Return period | 30 days |
Exchange period | 30 days |
Write Your Own Review
Customer Questions
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
