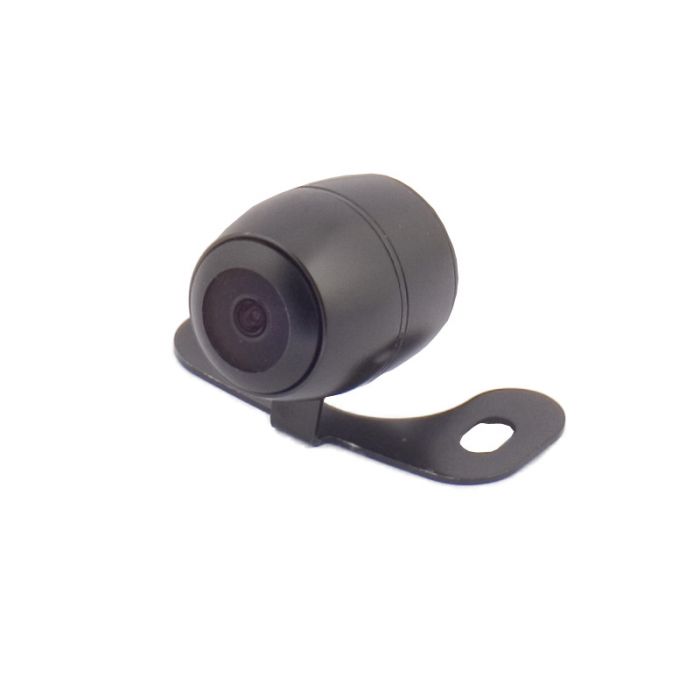

Gryphon Mobile MV-CAMERA7 Bullet Back Up Reverse Camera and Surface Mount

Gryphon Mobile MV-CAMERA7 Bullet Back Up Reverse Camera and Surface Mount

Gryphon Mobile MV-CAMERA7 Bullet Back Up Reverse Camera and Surface Mount

More Views

Item sku:39517
Gryphon

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Gryphon MV-CAMERA7 Product Highlights

  • Surface Mount
  • Small and Discrete
  • Low Light Sensitive
  • 170 degree Wide Angle

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Cables

Gryphon Mobile MV-CAMERA7 Bullet Back Up Reverse Camera and Surface Mount
  • Image Sensor: Color CMOS CCD
  • TV System: PAL/NTSC optional
  • Effective Pixels: PAL - 628 x 586 pixels
  • Effective Pixels: NTSC - 510 x 496 pixels
  • Horizontal Resolution: 480,2011, TVL
  • Sensing Area: 1/3 - 4.9mm x 3.7mm (0.19" x 0.14")
  • Sensing Area: 1/4 - 3.6mm x 2.7mm (0.14" x 0.11")
  • Shutter Speed: PAL- 1/50
  • Shutter Speed: NTSC - 1/60
  • Shutter Speed: 1/10,000 seconds
  • Minimum Illumination: 0.1 Lux/F = 1.2 (0 Lux with IR on)
  • Video Output: RCA Connector, 1.0vP-P, 75 Ohms
  • Power Consumption: 110mA; max 300mA with IR on
  • Power Supply: 12v/ 24v
  • Operating Temperature: -20 Degrees Celsius ~ 90 Degrees Celsius (-4 F ~ 194 F); RH 95% Max
  • Storage Temperature: -30 Degrees Celsius ~ 80,2011, Degrees Celsius (-22 F ~ 176 F); RH 95% Max
  • Lens Angle: 135 Degrees/ 170 Degrees
  • Waterproof: IP67/ IP68

Technical Specifications

Manufacturer Gryphon
Part Number MV-CAMERA7
Auto Dimming No
Camera Sensor type CMOS
Back up camera type Bullet Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 170 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC and PAL
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
