Boss Audio P106DVC Phantom Series 10 Inch 1050 Watt Subwoofer with Dual 4 ohm Voice Coils

Boss Audio P106DVC Phantom Series 10 Inch 1050 Watt Subwoofer with Dual 4 ohm Voice Coils

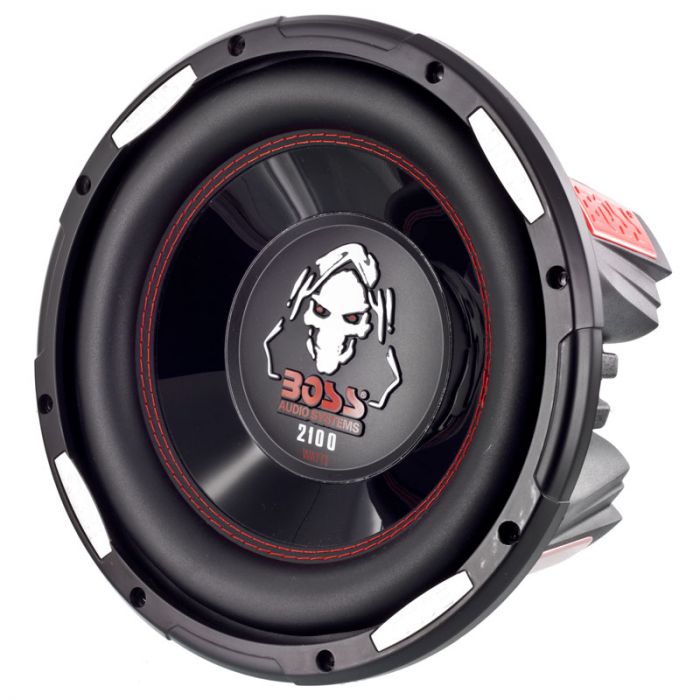

Boss Audio P106DVC 10 Inch Car Subwoofer - Front right

More Views

Item sku:P106DVC
Boss Audio

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boss Audio P106DVC Product Highlights

  • 10" Subwoofer with dual 4 ohm voicecoil
  • Large magnet construction with decorative and protective cover
  • Stamped steel basket
  • 2-1/2 inch high temperature Kapton voice coil for high power handling

  • 10" Black metallic injection molded polypropylene cone

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Dual voice coil subwoofer and Instruction manual

Boss Audio P106DVC Phantom Series 10 Inch 1050 Watt Subwoofer with Dual 4 ohm Voice Coils
    Features:
  • 10" Subwoofer with dual 4 ohm voicecoil
  • Large magnet construction with decorative and protective cover
  • Stamped steel basket
  • Silver spring compression terminals for easy wire connections
  • 2-1/2 inch high temperature Kapton voice coil for high power handling
  • 10" Black metallic injection molded polypropylene cone
  • Butyl rubber surround

  • Power Handling Max:
  • 2100 Watt maximum power handling

  • Power Handling RMS:
  • 1050 Watt nominal continuous power handling RMS

  • Quick Specs:
  • Impedance: Dual 4 ohm
  • Frequency response: 35 Hz – 2,200 Hz
  • Sensitivity: 96 dB @ 1Watt / 1meter

  • Dimensions:
  • Mounting depth: 6-1/2"
  • Cutout diameter: 9-1/4"
  • Overall diameter: 10-1/2"


Recommended enclosures:
  • Sealed enclosure: .6 Cubic feet with an F3=51 Hz
  • Porteded enclosure: 1.0 Cubic feet with an F3 = 38 Hz, Port frequency = 38 Hz, Port diameter = 3 inches, Port length=8 inches

Technical Specifications

Manufacturer Boss Audio
Part Number P106DVC
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 4 ohm
FS 34
QES .552
QMS 4.427
QTS .491
RE 3.6
VAS 1.283
Xmax (millimeters) .246
Sensitivity 96 dB
Frequency Response 35 Hz - 2,200 Hz
Sub enclosure type Ported / Vented, Sealed
Power Handling RMS 751 - 1000 Watts
Power Handling Peak 2100 Watts
Shallow Mount Subwoofer No
Mounting Depth $6.50
Cutout Dimensions $9.75
Sealed Enclosure Recommended Size 1.0 ft ^3
Ported Enclosure Recommended Size .6 ft ^3
Color Black
Warranty 1 Year
UPC Code No
