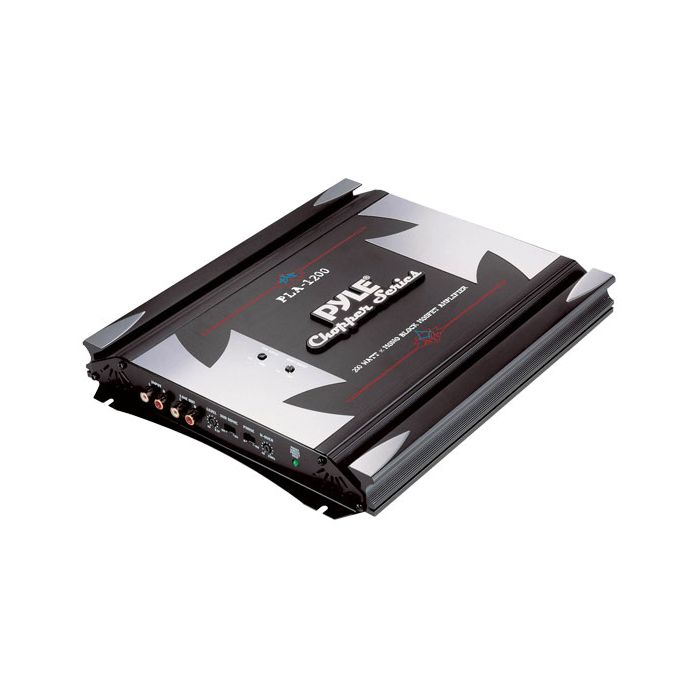

Discontinued - Pyle PLA-1200 Chopper Series 1900 Watts Mono Block Mosfet Power Amplifier

Discontinued - Pyle PLA-1200 Chopper Series 1900 Watts Mono Block Mosfet Power Amplifier

Discontinued - Pyle PLA-1200 Chopper Series 1900 Watts Mono Block Mosfet Power Amplifier

More Views

Pyle
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pyle PLA-1200 Product Highlights

Pyle PLA-1200 Chopper Series 1900 Watts Mono Block Mosfet Power Amplifier
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Amp

Pyle PLA-1200 Chopper Series 1900 Watts Mono Block Mosfet Power Amplifier
  • Overview
  • 1900W Mono Block MOSFET Amplifier
  • Mono Block Subwoofer Amplifier
  • 1 Ohm Stable
  • MOSFET Power Supply
  • PWM (Pulse-Width-Modulation) System
  • Glass Epoxy PCB
  • Gold Plated RCA Inputs for Line Input & Bypass Output.
  • Gold Plated Terminals for Speaker Output and Power Input.
  • Thermal, Overload and Short Protection
  • Variable Bass Boost
  • Variable Sub-sonic Filter (15Hz~40Hz, 24dB/Octave)
  • Variable Low-pass Filter (20Hz~250Hz, 24dB/Octave)
  • Phase Control 0-180 degree
  • Remote Bass Control
  • Input Impedance : 10K Ohms
  • Soft Turn On/Off
  • Advanced Protection Circuitry
  • S/N Ratio:>90dB
  • Heavy Duty Power Coated Heatsink

  • Features
  • Power supplies: Stiffly regulated PWM power supplies. MOSFET switches maintain rated power over a wide range of battery voltages.
  • Sub sonic control: When the sub sonic selector switch is in "ON" mode, this filter control permits continuously variable adjustment from 10 to 100Hz.
  • Bass boost level control: This control permits adjustment of the bass level up to an increase of approximately up to 18dB.
  • Crossover low pass filter: Adjustable from 20Hz to 250Hz with a slope of 24dB per octave.This allows for the adjustment of the upper point of the frequency bandwidth and the respective subwoofer.
  • High pass subsonic filter: Adjustable from 15Hz to 40Hz with a slope of 24dB per octave.This allows for the attenuation of frequencies that are mostly inaudible and cause unnecessary strain on the amplifier.
  • Protection circuitry: Protection against thermal, overload and short circuit conditions.
  • Remote dash-mount gain control: This amplifier come complete with a compact remote GAIN CONTROLLER which can be conveniently mounted on or under the dashboard of your car.

  • Specifications
  • RMS Power @ 4 Ohms: 200 W
  • RMS Power @ 2 Ohms: 350 W
  • RMS Power @ 1.3 Ohms: 600 W
  • Maximum Power Output 1900W Mono
  • Variable Low Electronic Crossover Network
  • Variable Input Level (Gain) Control
  • Variable Bass Boost
  • 2 Ohm Stable
  • Sub Sonic Filter
  • Thermal / Overload / Short Circuit Protection
  • MOSFET PWM Power Supply
  • Power And Protection LED Indicators
  • Phase Control 0-180 degree
  • Low Level Inputs
  • RCA Inputs And Outputs
  • Slim Size Amplifier Design For Easy Installation
  • 2x20 Amp Maxi Type Fuse
  • Dimensions: 10.63"W x 1.42"H x 12"L

  • Instruction Manual

Technical Specifications

Manufacturer Pyle
Part Number PLA-1200
Amplifier Topology Class No
Number of Channels 1 Channel
Total Peak Power Output 1501 - 2000 watts
Total RMS Power Output 251 - 500 Watts
Amplifier Bridging No
Minimum Impedance in Bridged Mode N/A
Minimum Impedance in Un-Bridged Mode N/A
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs No
Preamp voltage No
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan N/A
Color No
Warranty 1 Year
Recommended Power Wire Gauge N/A
UPC Code 68888880312
