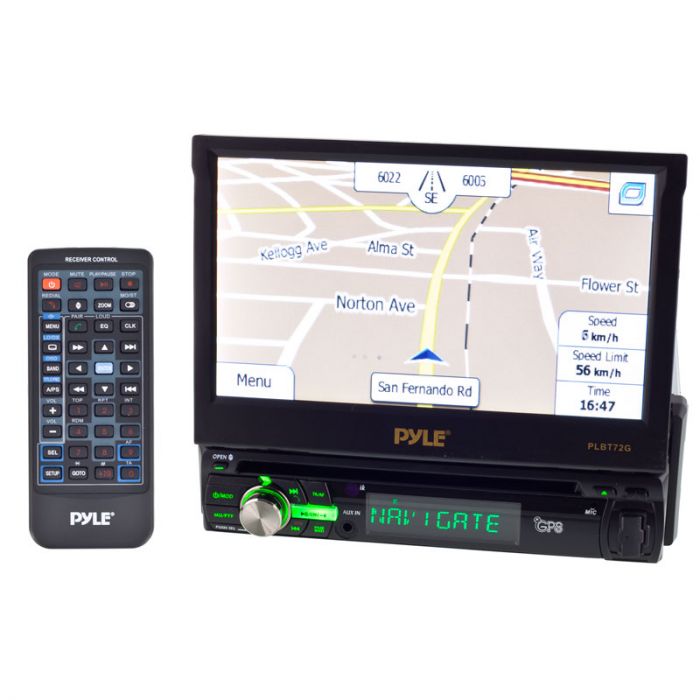

Discontinued - Pyle PLBT72G Single DIN 7 Inch Wide IN-Dash TFT and LCD Touch Screen Monitor with Bluetooth and GPS for Vehicles

Discontinued - Pyle PLBT72G Single DIN 7 Inch Wide IN-Dash TFT and LCD Touch Screen Monitor with Bluetooth and GPS for Vehicles

Discontinued - Pyle PLBT72G Single DIN 7 Inch Wide IN-Dash TFT and LCD Touch Screen Monitor with Bluetooth and GPS for Vehicles

More Views

Item sku:PLBT72G
Pyle

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Pyle PLBT72G Product Highlights

Discontinued - Pyle PLBT72G Single DIN 7 Inch Wide IN-Dash TFT and LCD Touch Screen Monitor with Bluetooth and GPS for Vehicles

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: PLBT72G Receiver, Owner's Manual, iPod & MP3 Connection Cable, GPS active antenna, SD card wireless remote, travel case, power & speaker wiring interface harness, and RCA Interface inputs & outputs cable.

Pyle PLBT72G Single DIN 7 Inch Wide IN-Dash TFT & LCD Touch Screen Monitor with Bluetooth & GPS for Vehicles features:

Features:
  • 7 inch wide Single DIN In-Dash TFT and LCD Touch screen monitor with GPS navigation
  • Built in Bluetooth with A2DP for wireless audio streaming
  • LCD screen Resolution: 1440 x 234 Pixels
  • Red, Blue, Green, Pink, Yellow button illumination colors
  • Selectable backgrounds
  • Set the screen as desired with its automatic up and down, with monitor angle adjustment
  • Detachable face plate with storage case
  • Power Output: Peak-4 channels x 52 watts and RMS- 4 channels x 17 watts
  • 12 hours or 24 hours clock display
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Easily accessible with wireless remote and graphic touch screen
  • Jpeg picture viewer
  • Built in calculator
  • Built in calendar
  • Built in games: Mine, Link, Five chess, BW Chess, Mole


Audio features:
  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4 WMA, DivX
  • Region free DVD player
  • Electronic shock protection with built in buffer
  • Includes PLL synthesized AM & FM tuner with 30 preset stations memory
  • Selectable USA and European radio frequencies sets
  • Controls: Volume, Fader, Bass, Treble, Balance
  • 2-band parametric equalizer with preset and custom options
  • Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160
  • Selectable sound fields: Jazz, Classic, Pop, Rock, User
  • CD text information, display artist and song information
  • MP3 ID3 tag information, display artist and song information


Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Internal microphone on the front of unit
  • Bluetooth 2.0+ certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above


Inputs and outputs:
  • 3 Sets of 2V preamp outputs (front, rear and mono subwoofer)
  • Rear Input for Rear Camera
  • Rear video output to connect to an external monitor
  • Front 3.5mm audio video input
  • Front USB connection accepts up to a 32Gb
  • SD memory card reader behind faceplate accepts up to a 32Gb memory card


Navigation features:
  • Comes equipped with GPS navigation
  • iPrimo navigation software with downloadable map updates
  • SD card with USA, Mexico, and Canada maps
  • Hands-free voice guidance with text to speech prompts, so one can keep his eye on road while driving
  • Includes external GPS antenna for optimal satellite signal reception


Dimensions:
  • Single DIN chassis
  • Dimensions: 7-1/8"W x 6-1/2"D x 2"H

Technical Specifications

Manufacturer Pyle
Part Number PLBT72G
Chassis Size Single DIN
Faceplate features Detachable face plate
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
LCD Screen Size 7 inch - 8 inch
Illumination color Full Color
LCD Screen Brightness 350 Nit
Swivel Screen Yes
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 1440 x 234
Front camera input N/A
Back up camera input Yes
Audio Video inputs No
Front mounted auxiliary input 3.5 mm audio/video input
Audio Video Outputs 1 Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control No
iPod Audio Connection Yes, Built in
iPod Video Connection Yes, Built in
SD Card input Yes, SD Card
USB input Yes
HDMI input No
HDMI output No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
NTSC/PAL NTSC and PAL
Audio Formats Mpeg-3, WAV, WMA
Video Formats Divx, H.264, JPEG, MPEG-2, MPEG-4, WMV
MP3 Playback Yes
Built in Bluetooth Yes, Built in Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Navigation Built in
GPS Maps USA, Canada, and Mexico
Text to Speech Yes
Traffic Tuner No Traffic
Points of Interest Up to 2 Million
Integration Module N/A
Steering Wheel Control Input No
Wireless Remote Control Yes
TV Tuner No
VGA input No
Operation Voltage 12 - 15 volt
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 068888733748
