Pyle PLCM18BC Black Zinc Metal Bar type License Plate Backup Camera

Pyle PLCM18BC Black Zinc Metal Bar type License Plate Backup Camera

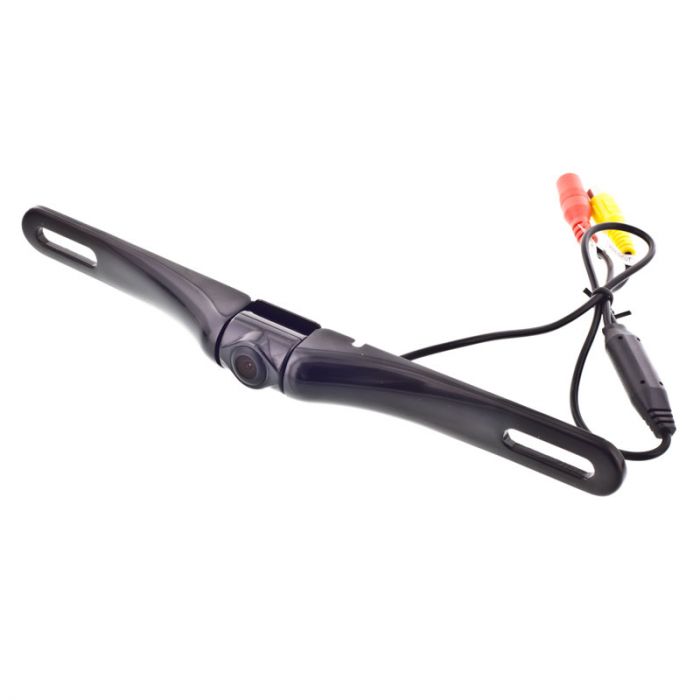

Pyle PLCM18BC License Plate Backup Camera - Camera

More Views

Item sku:PLCM18BC
Pyle

Overall Rating 4.7 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Pyle PLCM18BC Product Highlights

  • Beautiful design & anti-scratch coating
  • Black finish
  • 170 Degrees Wide Angle View
  • CMOS imaging device
  • Excellent low light performance

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: License plate camera, Power lead, 17 foot RCA Connector and Instruction manual

Pyle PLCM18BC Black Zinc Metal Bar type License Plate Backup Camera
    Features:
  • High sensitive 1/4" CMOS
  • 420 TVL Horizontal Resolution
  • Camera has swivel for adjusting the vertical point of view
  • Remarkable low Lux performance of 0.1 Lux at F1.2 - License plate light provide plenty of light when vehicle is placed in reverse
  • Excellent Auto White Balance
  • Waterproof (IP68)
  • Parking grid lines - visual reference to objects
  • Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
  • Beautiful design & anti-scratch coating
  • Current Consumption: 60mA, Max 300mA
  • Power source: DC12V +/- 10%
  • Video output: RCA connector, 1.0Vp-p, 75ohm
  • Viewing Angle: 170 Degrees wide angle view
  • Operating Temp: -4 degrees F ~ 140 degrees F ( -40 degrees C ~ + 60 degrees C )
  • Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80 degrees C )

Technical Specifications

Manufacturer Pyle
Part Number PLCM18BC
Auto Dimming No
Camera Sensor type CMOS
Back up camera type License Plate Camera
License Plate Camera Type Bar style
Camera diameter 2.96 mm
Viewing Angle 170 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 068889023718

Customer Reviews

Great value, works very well.
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Unit is well made, installed it to my Eclipse AVN-4430 by using the auxiliary video input (VTR), so I can even use it as a rear view monitor while driving. The visibility out the back of my '13 Impreza is poor, but with this camera I can see everything as it is wide angle. Mounted it above the upper screw holes on my license plate using cable ties so the name of my state (NY) is not covered up as per DMV rules. With black license frame it is barely noticeable. I highly recommend this unit. (Posted on 6/11/2014)
For the price can't be beat
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
It's a very good camera for this price. I like the adjustable head so that I'm able to see even my bumper for a clean parking. Works well with the Pyle 3.5 monitor. (Posted on 5/16/2014)
