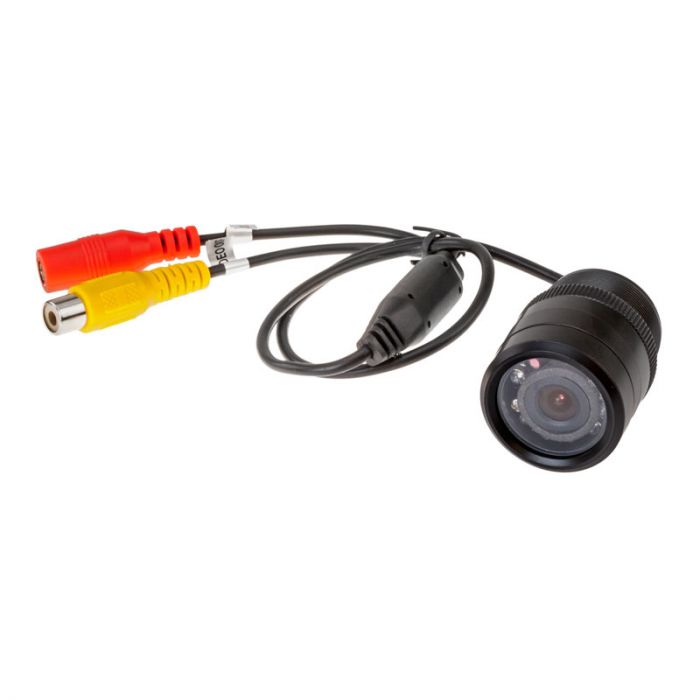

Pyle PLCM22IR Flush Mount Bullet Rear View Camera

Pyle PLCM22IR Flush Mount Bullet Rear View Camera

Pyle PLCM22IR Flush Mount Bullet Rear View Camera - Camera

More Views

Item sku:PLCM22IR
Pyle

Overall Rating 5 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Pyle PLCM22IR Product Highlights

  • 1/4" CMOS image sensor for excellent picture quality and low light capability
  • Flush Mount Camera
  • Can be flush mounted into a bumper or other surface
  • 10 IR LED lights for incredible night vision even with no visible light
  • Includes drill cutout tool

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: Back up camera, Drill bit, Wiring harness, and Instruction manual

Pyle PLCM22IR Flush Mount Rear View Camera features:
    Features:
  • Universal back up camera that can be flush mounted into a bumper or other surface
  • 1/4" CMOS image sensor for excellent picture quality and low light capability
  • 17-ft male to male RCA video cable
  • 10 IR LED lights for incredible night vision even with no visible light
  • Includes drill cutout tool
    Quick specs
  • Total pixels: 510 x 492
  • Resolution: 420 TV lines
  • Min illumination: 0.5 LUX
  • Auto image adjustment
  • Video output: 1.0Vpp-75Ω
  • Power supply: DC 12V 200 mA
    Dimensions
  • 1-3/4" (Depth) x 1-1/4" (Diameter)

Technical Specifications

Manufacturer Pyle
Part Number PLCM22IR
Auto Dimming No
Camera Sensor type CMOS
Back up camera type Flush Mount Key hole camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection Waterproof
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 068888883573

Customer Reviews

EXCELLENT DTV RECEIVER
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I bought the Pyle radio and needed the back up camera I could not find it anywere but when I checked out Quality Auto they had exactly what I needed at a great price they shipped it [...] with all instructions needed to install it with no problems they are the best!!!! (Posted on 12/12/2010)

Write Your Own Review

You're reviewing: Pyle PLCM22IR Flush Mount Bullet Rear View Camera

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by David Singer, Thursday, May 30, 2013

Question:

I have the Pyle PLCM22IR Flush Mount Bullet Rear View Camera and am wondering what is the tested depth of the camera and time under water the camera is capable?

Answers:

  • Posted by Salvador Diaz on Thursday, May 30, 2013
    A:

    This camera can not be submerged under water, it is water resistant but not fully water proof.
