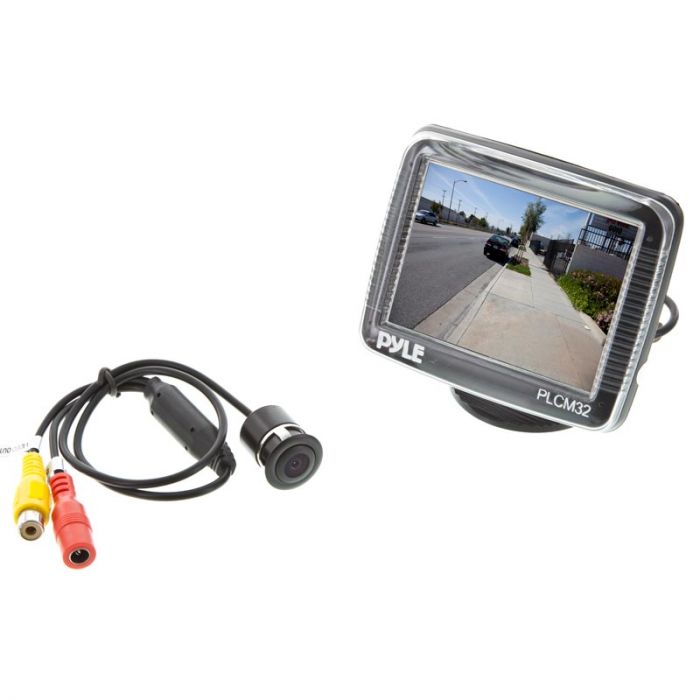

Pyle PLCM32 3.5" TFT LCD Monitor with surface / flush mount camera

Pyle PLCM32 3.5" TFT LCD Monitor with surface / flush mount camera

Pyle PLCM32 3.5" TFT LCD Monitor with surface / flush mount camera system

More Views

Free Shipping on orders $99+

Overall Rating 5 (Based on 1 reviews)

Pyle PLCM32 Product Highlights

  • 3.5'' TFT LCD stand monitor
  • Automatically switch when reversing
  • 2 video inputs
  • Camera includes flush and surface mount attachments
  • Drill bit included
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!


Unit includes: 3.5" LCD monitor, Flush / surface mount camera, Drill bit, 15 foot RCA cable, Wiring harness, and Instruction manual

Pyle PLCM32 3.5" TFT LCD Monitor with surface / flush mount camera features:
  • 3.5'' TFT LCD stand monitor
  • Automatically switch when reversing
  • 2 video inputs
  • NTSC system
  • Brightness: 250 cd/m
  • Contrast: 200:1
  • Screen dim: 3-3/4" (W) x 3-5/8" (H) x 1-5/8" (L)
  • 17-ft male to male RCA video cable
  • Drill bit included
  • CMD image sensor
  • Total pixels: 628 x 586
  • Resolution: 420 TV Lines
  • Camera includes flush and surface mount attachments
  • Min. illumination: 0.1 LUX
  • Auto image adjustment
  • Video output: 1.0 Vpp-75Ω
  • Power Supply: DC 12V 200 mA
  • Camera dim: 3/4" (D) x 1" (L)

Technical Specifications

Manufacturer Pyle
Part Number PLCM32
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 4:3 Normal Aspect Ratio
LCD Screen Brightness 250 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Auto video sense trigger
Slide track on back No
Image Flip Function No
Built in Speakers No
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 1 Video Input
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Flush Mount Key hole camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CMD
Camera diameter 3/4" inch
Viewing Angle 110 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Battery Powered No
Case included No
Connector Type RCA Cable
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 068888892506

Customer Reviews

Camera system for my Dodge
Review by
Install (5 star for easy)
I just finished installing the Pyle 3.5" TFT LCD Monitor with Universal Mount Rear View Camera on my new 2012 Dodge. I was disappointed that my vehicle did not come with a rear view camera built in and I was concerned because my teenager is learning to drive this summer and I want to prevent any possible mishaps.

The cost and the short time it took to install on my own is definitely worth every penny for my family's safety. The instructions don't help explain much more than what the wires do, while the rest was a trial and error type afternoon. Once I figured it out and hooked it into the 12v power, all is gravy. It does exactly what I need it to. I probably should have called technical support and they could have set me straight before I tried my method. I didn't really mind trying to figure it out.

The screen is 3.5" and gives the wide angle lens justice without cramping up my front console. I might next time opt for a slightly larger screen, maybe a 4 inch or 4.3 inch.

The scale lines and the night vision setting are very nice and give some visual reference to how far away an object is. The night-vision makes seeing at night very easy.

I would recommend this to any parent with kids itching to get behind the wheel and learn the basic understanding of safety on the road...As well as mall parking lots.
(Posted on 6/26/2013)
