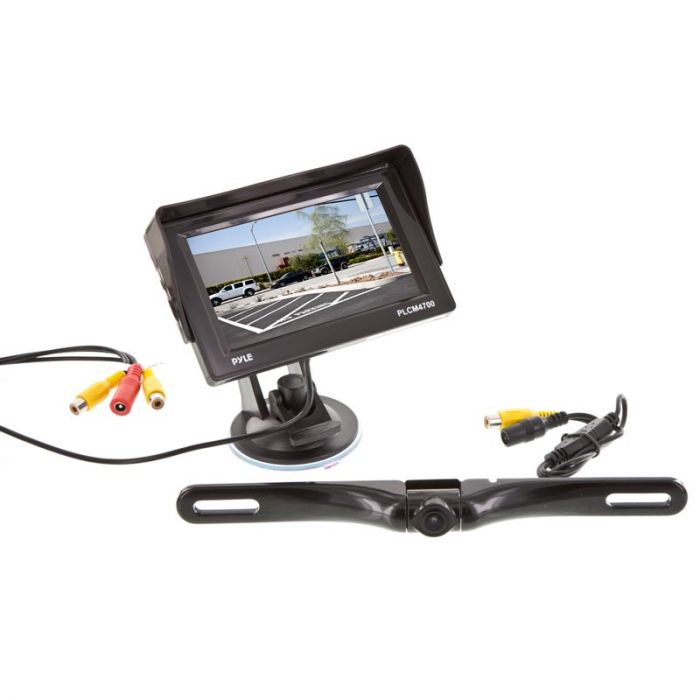

Pyle PLCM4700 4.7" TFT LCD Suction Cup Monitor with license plate mount camera

Pyle PLCM4700 4.7" TFT LCD Suction Cup Monitor with license plate mount camera

Pyle PLCM4700 Back up camera system - LCD monitor and Camera

More Views

Item sku:PLCM4700

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Pyle PLCM4700 Product Highlights

  • 4.7'' TFT LCD stand monitor
  • Automatically switch when reversing
  • 2 video inputs
  • License plate camera
  • Suction cup mount

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!


Unit includes: 4.7" LCD monitor, License plate mount camera, Mounting hardware, 15 foot RCA cable, Wiring harness, Suction cup mount, Cigarette lighter cord, and Instruction manual

Pyle PLCM4700 4.7" TFT LCD Suction Cup Monitor with license plate mount camera features:
  • 4.7'' TFT LCD stand monitor
  • Suction cup mount for top of dash or windshield mounting
  • Automatically switch when reversing
  • 2 video inputs
  • NTSC / PAL system
  • Brightness: 300 cd/m
  • Contrast: 200:1
  • Screen dimensions with visor: 5-5/8" (W) x 3-3/8" (H) x 1-3/8" (D)
  • 17-ft male to male RCA video cable with pass through lead
  • License plate mount camera
  • Black zinc finish on metal camera housing
  • Parking grid lines
  • CMOS image sensor
  • Total pixels: 656 x 492
  • Resolution: 420 TV Lines
  • 170 degree viewing angle
  • Min. illumination: 0.2 LUX
  • IP67 weatther rating
  • Auto image adjustment
  • Video output: 1.0 Vpp-75Ω
  • Power Supply: DC 12V 200 mA
  • Camera dim: 10" (W) x 1-3/8" (H) x 1-1/4" (D)

Technical Specifications

Manufacturer Pyle
Part Number PLCM4700
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Auto video sense trigger
Slide track on back No
Image Flip Function Image rotate
Built in Speakers No
Stand Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included Yes
Audio Video inputs 1 Video Input
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type License Plate Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CMOS
Camera diameter 3/4" inch
Viewing Angle 170 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Case included No
Connector Type RCA Cable
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 15 volt
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 068888742504
