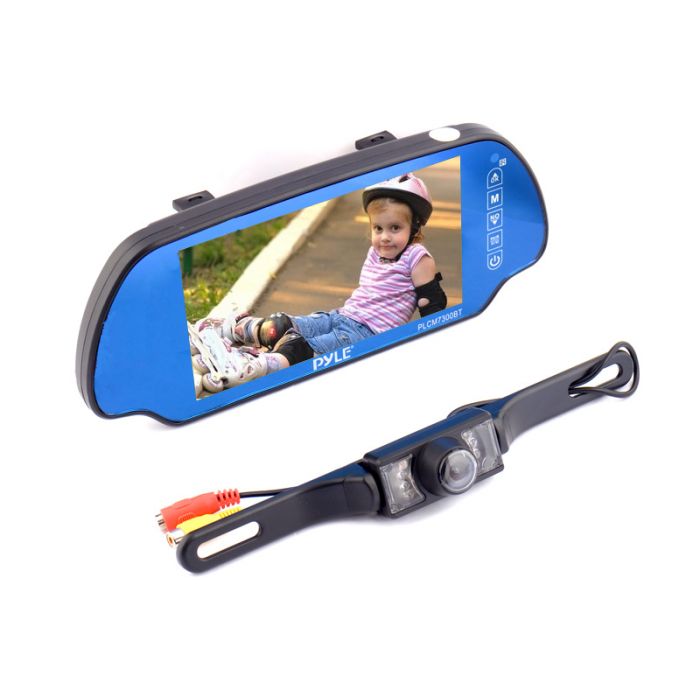

Pyle PLCM7300BT 7 Inch Widescreen TFT Rear View Mirror Monitor with Back Up Night Vision Camera and Built In Bluetooth

Pyle PLCM7300BT 7 Inch Widescreen TFT Rear View Mirror Monitor with Back Up Night Vision Camera and Built In Bluetooth

Pyle PLCM7300BT 7 Inch Widescreen TFT Rear View Mirror Monitor with Back Up Night Vision Camera and Built In Bluetooth

More Views

Item sku:32530
Pyle

Overall Rating 4 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Pyle PLCM7300BT Product Highlights

  • 7" TFT (16:9) Wide Screen
  • Universal Clip On Existing Mirrors
  • Includes Rearview Night Vision Camera
  • Built in Bluetooth
  • Anti Glare Mirror
  • Dual Video Input
  • Touch Screen Buttons
  • In Coming Calls Display

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Remote Control

Pyle PLCM7300BT 7 Inch Widescreen TFT Rear View Mirror Monitor with Back Up Night Vision Camera and Built In Bluetooth
  • 7" TFT (16:9) Wide Screen
  • Universal Clip On Existing Mirrors
  • Wireless Remote Control
  • Resolution: 480 X RGB X 234
  • Contrast Ratio:400 CD/M2
  • Viewing Angle: Up/Down 90 Degrees and Left/Right 120 Degrees
  • Power Comsumption: 6W
  • Auto Switch PAL/NTSC
  • Dual Video Input(DVD/CAMERA/GAME)
  • Rearview Night Vision Camera
  • Built-In Bluetooth System
  • Display In-coming Calls
  • License Plate Mount
  • Anti Glare Mirror
  • Screen Dimensions: 10.19" W X 4.25" H X 1.81" D
  • Camera Dimensions: 8.46" W X 1.29" H X 1.37" D

Technical Specifications

Manufacturer Pyle
Part Number PLCM7300BT
LCD Screen Size 7 inch - 8 inch
Widescreen Display 16:9 Widescreen Display
Touchscreen No
Native Screen Resolution 1440 x 234
LCD Screen Brightness 400 Nit
LCD back light type CCFL
Auto Dimming No - Auto Dimming
Monitor Color Black
Swivel Screen No
Audio Video inputs 2 Audio Video Inputs
Built in Speakers Yes
Auto on/off Yes
Trigger wire Yes
Built in FM Modulator No
VGA input No
Built-in DVD Player No
Built in Bluetooth Yes, Built in Bluetooth
Headphone Transmitter No
Homelink No
Image Flip Function No
Headphone Jack No
Mirror Mount Type Clip On
Back up camera type License Plate Camera
Monitor Type Rearview mirror monitor
Parking grid lines No
Built in Game System No
USB input No
SD Card input No
NTSC/PAL NTSC and PAL
Wireless Remote Control Yes
Anti-Shock No
Audio Video Outputs No
Vehicle Brand N/A
Warranty 1 Year
UPC Code 068888893718

Customer Reviews

Great Product - Poor support - Horrible instructions
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
This product is great (now that it is installed). The video is clear and resolution is better than I had expected. There are issues installing the device if you are not an experienced auto A/V installer. The bluetooth function is a nice speaker phone add on feature with some minor issues.

Lets get to the chase, the reason I only give three stars, the owners manual (if you can call it that) sucks! It is a single page of paper divided in to four sections. One part covering the remote control, one part covering the function keys on the panel, one part covering bluetooth functionality, and one part with an incomplete wiring diagram. I say the wiring diagram is incomplete because there is an entire set of wires (used to power the camera) not shown.

The entire written instructions for installation are:
1. Disconnect the negative lead of the battery before making power connections
2. When creating passage holes for the power wires, use grommets to eliminate any sharp edges created during drilling.
3. When connecting the ground lead, fasten the ground lead securely to a clean metal plate on the vehicle.

I thought surely I was missing something. I went to the Pyle website only to find the manual listed as "comming soon". I sent an email to their support department and received a reply with no text, only an attachment of the same single page of useless paper. If you are not experienced with installing these devices you should seek professional installation.

During the installation you will need likely need a cable to extend the video/power feed to the screen. The cable provided was not remotely long enough for me to route in a concealed manner. Fortunately you only need a simple mouse extension cable for this. Aside from the mouse extension cable the only other item needed was a short piece (2 feet depending on your vehicle)of small gauge wire to connect the two inches of provided reverse wire to your vehicle's back up circuit.

Pairing the bluetooth is easy, probably the only thing clearly written in the "manual". The microphone is on the back of the screen picking up voices reflected off the windshield. Callers report a far away sound, but clearly audible. I found hearing the other party quite easy. The biggest drawback is a lack of ability to connect to the phone without using the phone. When I climb in the car I must pull my phone out of my pocket and go into the menu to search for the devise in order to connect. While driving, when receiving a call, there is no way to answer the phone from the screen. You must answer the phone at the phone, making this not truly hands free. Still it beats wearing a stupid earpiece when I am not on the phone.

Overall good performance from a product designed for first time DYI.
(Posted on 6/26/2013)
Nearly Gentex quality for 1/2 the price
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I purchased this unit the PYLE PLCM7300BT 7-Inch TFT Mirror Monitor with Rear-View Night Vision Camera and built-In Bluetooth, over 6 months ago for my Honda. Overall, I pleased with the unit. The rear camera that came with this unit could be a little better. In my opinion, the night vision is sub-par and can easily be replaced with a better camera. Install is straight forward. Wireless really wasn't an option with the interference problems. The display is great. It has dual input so I was able to connect it with my overhead DVD. The bluetooth feature is what I like the most. It's incorporated into the unit. One thing that the instructions does not include is the default pairing code for bluetooth. After many attempts to contact pyle support, they finally responded with the code 8888. It works. So if you find yourself setting up one this unit and the univeral pairing code 0000 is not working for you, try 8888. Almost certain it will.
So far, I have enjoyed this unit. I may upgrade my rear camera, but overall, I'm more than satisfied with this unit for the price I purchased it for.
(Posted on 5/25/2011)

Write Your Own Review

You're reviewing: Pyle PLCM7300BT 7 Inch Widescreen TFT Rear View Mirror Monitor with Back Up Night Vision Camera and Built In Bluetooth

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Darrell D. Davis on Tuesday, July 2, 2013

Question:

Will the Pyle PLCM3700BT 7" wide screen TFT Rear View rear view mirror monitor with back up night vision and built in Bluetooth work on a 2010 Toyota Prius?

Answers:

  • Posted by Salvador Diaz on Tuesday, July 2, 2013

    Yes, this is a universal unit. It will work on that vehicle no problem.
