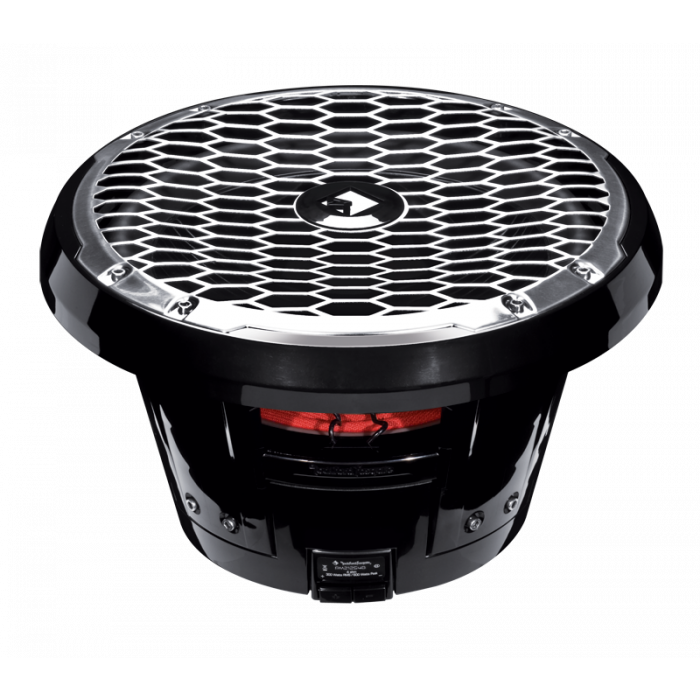

Rockford Fosgate PM212S4B 12" Marine Subwoofer - Black

Rockford Fosgate PM212S4B 12" Marine Subwoofer - Black

Rockford Fosgate PM212S4B 12" Marine Subwoofer - Black

More Views

Rockford Fosgate
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Rockford Fosgate PM212S4B Product Highlights

  • 12” Black marine subwoofer
  • Single 4-ohm voice coil
  • Linear, high excursion matched motor magnetics and suspension design
  • Designed for sealed, vented or infinite baffle installations
  • Injection molded mineral filled parabolic polypropylene cone body with UV inhibitors
  • Moisture, tear and fatigue resistant aramid fiber spider and, UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
  • VAST Surround technology that increases its effective radiating cone area up to 25%
  • High temperature Kapton former with polyimide insulated copper wire and fully insulated super-flexible lead wire
  • Magnetic shielded for reduced electromagnetic interference potential
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

The Unit Includes: Subwoofer driver, removable trim ring and Instruction manual

Rockford Fosgate PM212S4B 12" Marine Subwoofer:

Features:
  • True Marine Grade compliance
  • High temperature Kapton® former with polyimide insulated copper wire
  • UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
  • UV stable Centrex® injection molded plastic parts
  • Proprietary corrosion resistant gold plated bare-wire input push-type terminals
  • Injection molded mineral filled parabolic polypropylene cone body with UV inhibitors
  • Fully insulated ultra-flexible lead wire
  • Internal magnetic shielding for reduced electromagnetic interference potential
  • Linear, high excursion matched motor magnetics and suspension design
  • Moisture, tear and fatigue resistant aramid fiber spider
  • 18 gauge corrosion resistant removable Stainless Steel grille cover insert
  • Removable trim ring


Power Handling Max:
  • Maximum Power: 600 Watts


Power Handling RMS:
  • 300 Watts nominal continuous power handling RMS


Quick Specs:
  • Nominal Impedance: 4 -Ohm
  • Sensitivity: 87 dB @ 1Watt / 1meter


Dimensions:
  • Mounting depth: 6.125 inches. (15.56 cm)
  • Cutout diameter: 10.9 inches. (278 cm)

Technical Specifications

Manufacturer Rockford Fosgate
Part Number PM212S4B
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS 25.5
QES 0.55
QMS 9.00
QTS 0.52
RE 3.10
VAS 44.3
Xmax (millimeters) 12
Sensitivity 87
Frequency Response 30 -250 Hz
Sub enclosure type No
Power Handling RMS 300 Watts
Power Handling Peak 600
Shallow Mount Subwoofer No
Mounting Depth $6.60
Cutout Dimensions No
Sealed Enclosure Recommended Size 1.0 ft2
Ported Enclosure Recommended Size 1.5 ft2
Color Black
Warranty 1 Year
UPC Code 780687345471
