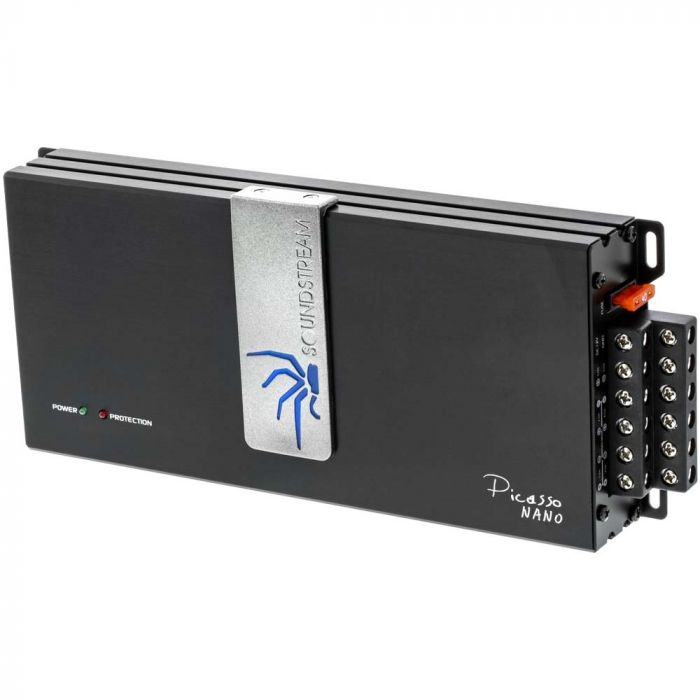

Soundstream Picasso Nano PN5.640D 5 Channel Class D Amplifier - 640 Watts

$179.99
In stock
SKU
PN5.640D

Key Features

  • Picasso Nano 640 watts full range amplifier
  • Class D digital amplifier
  • Full MOSFET PWM Power Supply
  • SMD Technology on Double Sided PCB
  • High and Low Level Signal Inputs

When you get your first look at Sound Stream PN5.640D you will realize that size really does not matter too much at all. That is, just the size of the equipment, however the size of the sound of the stream is what really matters with the Sound Stream PN5.640D. It is so amazing and quite unbelievable that such a small piece of music amplifying equipment is capable of such an amazing output. What’s more is in addition to fitting your bill ideally, it snugly fits into the biggest or smallest of cars, and the presence is known only when the music blasts non-stop, unless your neighbor or co-traveler is complaining about the high decibels bombarding his or her ears.

This little giant tips the scales at 3.97 pounds (1.8kg) and the unbelievable dimensions of 4.75 X 9 X 1.5 inches makes it a favorite with electronics whizz kid installers who would rather go for stealth installation which will make it rather difficult for an ordinary mortal to find out just where from the sound is emanating. You can install the amplifier under the front seat or the back seat and you’ll still have enough space between the seat and the amplifier for ventilation. What’s more is the amplifier does not get heated up after a half hour of continuous music playing at high volume. Thanks to the high pass crossovers the amplifier is equipped with, you sense no sound distortion even when the volume is turned up to the maximum. The music comes through clean and crisp, thanks to the punchy mid-bass that gives great harmonics from this tiny yet solid performer.

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual


Soundstream Picasso Nano PN5.640D 5 Channel Class D Amplifier - 640 Watts
    Features:
  • Picasso Nano PN5.640D
  • 640 Watts of maximum power
  • Picasso Nano 640 watts Class D 5 channel Amplifier
  • Class D Digital Full Range Amplifier
  • Full MOSFET PWM Power Supply
  • SMD Technology on Double Sided PCB
  • 8 gauge Power Terminals and 8 gauge Speaker Outputs
  • High and Low Level Signal Inputs
  • 2-Ohm Stereo, 4-Ohm Bridged Stable
  • Remote Mount Gain Control Included
  • Variable 35Hz~250Hz 12dB High/Low Pass Filter
  • Variable 0-12dB 45Hz Bass Boost
  • Total Harmonic Distortion: 0.5%
  • Frequency Response: 10Khz-35Khz
  • Signal-to-Noise Ratio: 70dB
  • Damping Factor: > 250
  • Stereo Channel Separation:
  • Input Sensitivity: 0.5mV-12V
    Max Power Output:
  • 60w x 4ch + 200w @ 4 ohms (RMS)
  • 80w x 4ch + 350w @ 2 ohms (RMS)
  • 160w x 2ch + 350w @ 4 ohms (Bridged RMS)
    Dimensions:
  • 4.75"W x 10.3"L x 1.5"H
    Warranty duration:
  • Basic warranty: 1 year
More Information
Manufacturer Soundstream
Part Number PN5.640D
Amplifier Topology Class Class D
Number of Channels 5 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Preamp voltage 4 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 709483044364
Return period 30 days
Exchange period 30 days
