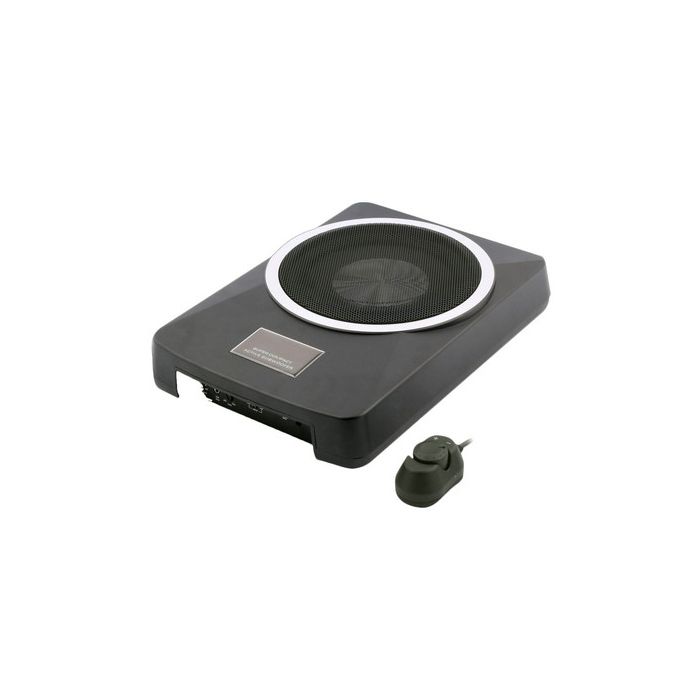

Gryphon Mobile DynaQuest PSW-182 8 inch Aluminum Low Profile Powered Subwoofer

Gryphon Mobile DynaQuest PSW-182 8 inch Aluminum Low Profile Powered Subwoofer

Gryphon Mobile DynaQuest PSW-182 8 inch Aluminum Low Profile Powered Subwoofer

More Views

Gryphon
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Gryphon PSW-182 Product Highlights

  • Completely self contained amplified subwoofer in ultra small enclosure
  • Cast aluminum sealed enclosure
  • 180 Watt internal amplifier
  • 8 inch subwoofer
  • Includes bass control
  • High-level speaker inputs
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Powered subwoofer, Bass level control, Wiring Harness, Mounting brackets, and Instruction manual

Gryphon Mobile PSW-182 8 inch Aluminum Low Profile Powered Subwoofer Specifications:

  • Speaker type Amplified Subwoofer Box
  • Body Design & Material Sealed Cast Aluminum Alloy
  • Maximum Output Power 180 Watt
  • Rated Power 90 Watt
  • Impedance 4 Ohm
  • Frequency 50 Hz ~ 100 Hz
  • Phase 0°, 180°
  • S/N Ratio 92 dB
  • Max. Current Consumption 10 A
  • Sensitivity (1% Distortion) 100mV at RCA, 1.8V at Speaker Level
  • Operating Voltage 14.4V (10.5V ~ 16V)
  • Dimension (WXDXH) 13.75 X 9.25 X 2.75 inches

Gryphon Mobile 8 inch Aluminium Low Profile Powered Subwoofer Features:
  • Powered Subwoofer Box
  • Built-in Amplifier for 12V Car Application
  • One of a kind Sealed Box Design
  • Sealed Cast Aluminum Alloy
  • Super Compact Sealed Box Design
  • Only 0.20 cubic feet of with less than 2.75” high
  • 180 Watt of Power
  • Delivering Solid Bass Performance
  • Remote Bass Level Control
  • Providing Optimum Bass Level Adjustment
  • Simple and Flexible Hookup
  • High Level Connection to Existing Speakers, or RCA Connection direct to the Head unit
  • Perfect Solutions for Tight Space Application
  • Underseat Installations for small cars, hatchbacks
  • Backseat Wall Installations for pickups and trucks
  • Weight (Net) 9 lbs

Technical Specifications

Manufacturer Gryphon
Part Number PSW-182
Driver Size 8 inch
Subwoofer Shape N/A
Sub enclosure type Sealed
Power Handling RMS Up to 300 watts
Number of Channels 1 Channel
Total Peak Power Output Up to 500 watts
Total RMS Power Output 200 watts
Bass Knob / Remote Gain Yes
Number of speakers / subs 1
Sub enclosure shape Hatchback / Angled Back Box
Firing Direction N/A
Amplifier Topology Class Class D
Color Dark Grey
Subwoofer Enclosure Finish N/A
Warranty 1 Year
UPC Code No
