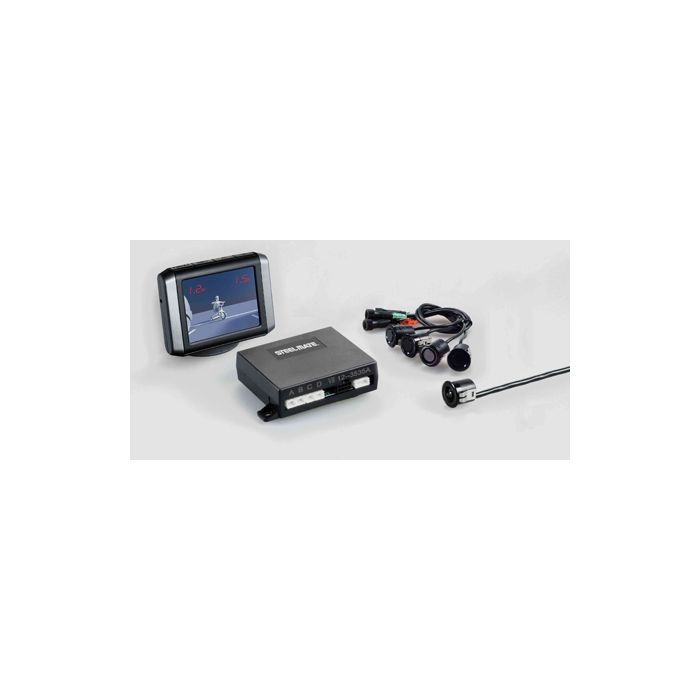

Steelmate PTSV402 Parking Assist Systems (PTS) with 4 Sensors, Wide Angle Low Light Camera and TFT Monitor Rear View Back Up Set

Steelmate PTSV402 Parking Assist Systems (PTS) with 4 Sensors, Wide Angle Low Light Camera and TFT Monitor Rear View Back Up Set

Steelmate PTSV402 Parking Assist Systems (PTS) with 4 Sensors, Wide Angle Low Light Camera and TFT Monitor Rear View Back Up Set

More Views

Item sku:31776
Steelmate

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Steelmate PTSV402 Product Highlights

  • Great Everyday Use Camera System
  • Built-in Camera in Kit
  • Ultra Sonic Sensors Included
  • Distance Indicator Built In

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Sensors

Steelmate PTSV402 Parking Assist Systems (PTS) with 4 Sensors, Wide Angle Low Light Camera and TFT Monitor Rear View Back Up Set
  • Features
  • 4 rear sensor system with camera and TFT monitor
  • Self-test function
  • Built-in camera or Micro-Tab camera available
  • Low light camera with wide angle
  • Voice/beep alert selectable
  • PAL/NTSC modes available
  • Volume adjustable
  • Accurate digital distance and clear rearview shown on the TFT monitor
  • Shock, vibration and water resistant camera
  • Detachable sensor with waterproof wire connector
  • More compatible cameras available

  • For Parking Assist System
  • Voltage: 12V±3V
  • Static curren: <85mA
  • Working current: <630mA
  • Beep volume: 70 ~ 90dB
  • Operating temperature: -40 Degrees Celsius ~ +85 Degrees Celsius
  • Detection range (rear): 0.1 ~ 2.59m
  • Display range (rear): 0.3 ~ 2.5m

  • For Rear View Camera
  • Video standard: NTSC/PAL
  • Voltage: DC 12V
  • Power consumption: 0.8W (Max.)
  • Graphic sensor: 1/3" color sensor
  • View angel: Wide angel
  • Minimum illumination: 1.5 Luxv
  • Operating temperature: Camera (-30 Degrees Celsius ~ +80 Degrees Celsius)

Technical Specifications

Manufacturer Steelmate
Part Number PTSV402
LCD Screen Size No
Native Screen Resolution No
Widescreen Display No
LCD Screen Brightness No
LCD back light type No
Auto Dimming N/A
Trigger wire No
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers No
Stand Mount included No
Auto on/off No
Cigarette Lighter Cord Included No
Audio Video inputs No
Wireless Remote Control No
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type No
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image Yes - Reverse Image
Camera Sensor type CMOS
Camera diameter No
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection No
Battery Powered No
Case included No
Connector Type No
Wireless Transmission No
Color Black
Operation Voltage No
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 656403984029
