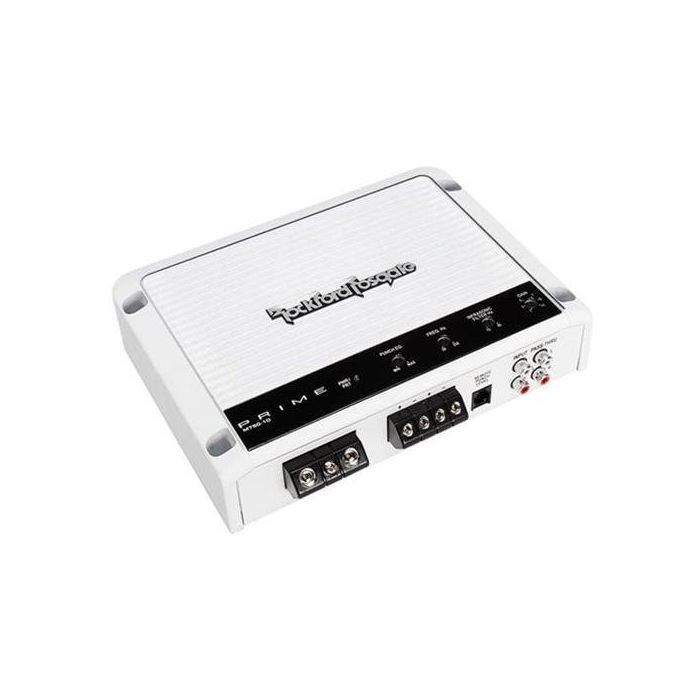

Rockford Fosgate M750-1D 750 Watt Marine Class-D Mono Amplifier

Rockford Fosgate M750-1D 750 Watt Marine Class-D Mono Amplifier

Rockford Fosgate M750-1D 750 Watt Class-D Mono Amplifier

More Views

Rockford Fosgate
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Rockford Fosgate M750-1D Product Highlights

  • It has a 12 db/octave Butturworth crossover.
  • It features a cast aluminum heatsink for efficient heat dissipation.
  • It comes with top mounted controls.
  • It includes a tri-stage protection that covers thermal, over-circuit and short circuits.
  • It has infrasonic filter and a remote punch level control.
  • It offers one-year warranty.
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Rockford Fosgate M750-1D 750 Watt Class-D Mono Amplifier:

Features:
  • 12dB/octave Butterworth crossover
  • 4 Gauge power/ground connectors
  • Cast aluminum heatsink
  • Top mounted controls
  • Marine grade 2-part epoxy coated PCB
  • On-board Punch EQ with +18dB boost @ 45Hz.
  • Tri-stage protection covers thermal, over-current and short circuits.
  • Infrasonic filter
  • Remote PLC (Punch Level Control)
  • 1 Year Standard Warranty


Inputs and Outputs:
  • 1 RCA pair low level input
  • 1 RCA pair low level output
  • Block 4AWG speaker input connections
  • Block 12 AWG speaker output connections


RMS Power Output:
  • 4-Ohm: 250 Watts x 1
  • 2-Ohm: 500 Watts x 1
  • 1-Ohm: 750 Watts x 1


Built in Crossover:
  • Variable 50Hz - 250Hz @ 12dB/octave


Dimensions:
  • Overall Dimensions: 1.97” (H) x 6.77” (D) x 9.10” (W)

Technical Specifications

Manufacturer Rockford Fosgate
Part Number M750-1D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total Peak Power Output 800 watts
Total RMS Power Output 501 - 750 Watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 4 volts
Speaker level inputs No
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color White
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
UPC Code 780687340827
