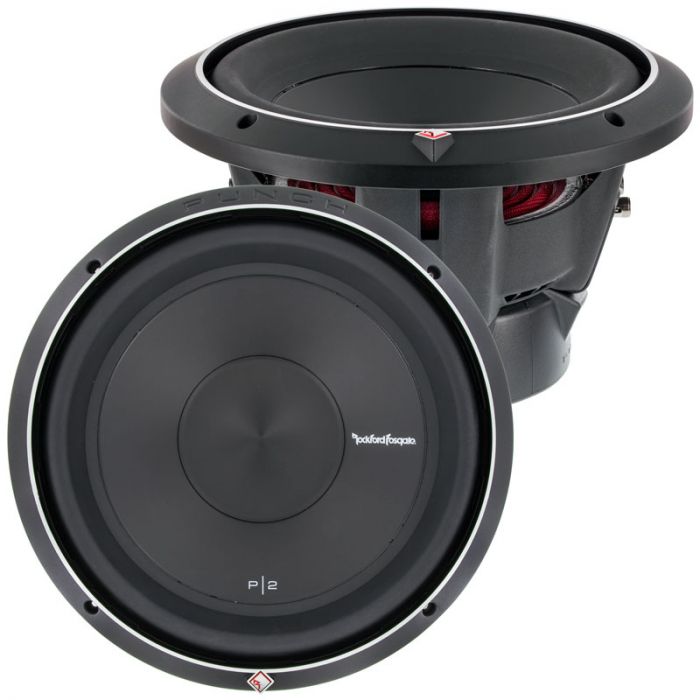

Rockford Fosgate P2D2-10 10" Punch P2 2-Ohm DVC Subwoofer

$149.99
Out of stock
SKU
P2D2-10

Key Features

  • 10" subwoofer featuring Dual 2-Ohm voice coils and 300 Watts RMS of power handling
  • Kevlar fiber reinforced paper cone for more impactful bass
  • 10-AWG nickel plated push terminals
  • Protective PVC textured magnet cover for optimal performance
  • StampCast basket for minimal resonance
  • Dual linear spider with embedded 16 AWG tinsel leads for more reliable performance
  • VAST technology that increases the subwoofer’s effective radiating cone area up to 25%
Unit Includes: Car subwoofer driver, cast aluminum trim ring, optional grill insert and instruction manual

Rockford Fosgate Punch Stage 2

Rockford Fosgate has taken their subwoofers to the next level. The Stage 2 subwoofers offer deep bass and unparallelled quality with high-end features. These subwoofers accept up to 300 watts of power, the reinforced Kevlar 10" cone provides excellent sound quality with minimal distortion. The new dual linear spider keeps the cone in perfect alignment and allows for high excursion levels. Checkout all of the features of the P2D2-10 10" subwoofer.

Anodized Aluminum Voice Coil Former

Heat is the #1 concern with subwoofers, dissipating the heat is the challenge. Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Aluminum is an excellent heat-sink and allows the Rockford P2D2-10 subwoofer to stay cool during high volume conditions.

CEA-2031 Compliant

The Rockford Fosgate P2D2-10 conforms to CEA-2031 industry standards. This means your 10" subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.

VAST Surround

V.A.S.T. Stands for Vertical Attach Surround Technique, this technology significantly increases a subwoofer's effective radiating cone area up to 25%. This design allows for more output from an equivalent speaker size without increasing installation challenges. This is done by eliminating the large flat glue surface area (the landing), which allows the surround to be shifted for increased cone area. This improves efficiency and output dramatically.

Stitched Tinsel Leads

To reduce fatigue and prevent catastrophic damage from shorts the P2D2-10 10" subwoofer uses stitched tinsel leads. By using this technology fatigue on the leads is dissipated over a greater area which improves the life of the subwoofer and contributes to a robust design.

Rockford Fosgate P2D2-10 10" Punch P2 2-Ohm DVC Subwoofer:

Features:
  • Kevlar fiber reinforced paper cone
  • Custom 10-AWG nickel plated push terminals
  • StampCast basket with integrated spider venting
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Protective PVC textured magnet cover
  • High-temp voice coil with spun-laced Nomex® reinforcement collar
  • Extended pole piece and bumped vented backplate
  • Diamond cut cast aluminum trim ring with optional grille


Power Handling Max:
  • Maximum Power: 600 Watts


Power Handling RMS:
  • 300 Watts nominal continuous power handling RMS


Quick Specs:
  • Nominal Impedance: Dual 2 -Ohm
  • Sensitivity: 84 dB @ 1Watt / 1meter


Dimensions:
  • Mounting depth: 5.92 in. (150.4 mm)
  • Cutout diameter: 9.13 in. (232 mm)
More Information
Manufacturer Rockford Fosgate
Part Number P2D2-10
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 2 ohm
FS 29.00 Hz
QES 0.54
QMS 7.00
QTS 0.50
RE 3.20 ohms
VAS 35.4 L
Xmax (millimeters) 8.5 mm
Sensitivity 84 dB
Frequency Response 29 - 250 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 300 Watts
Power Handling Peak 600 watts
Shallow Mount Subwoofer No
Mounting Depth 6.00 Inches
Cutout Dimensions 9.00 Inches
Color Black
Warranty 1 Year
UPC Code 780687332679
Return period 30 days
Exchange period 30 days
