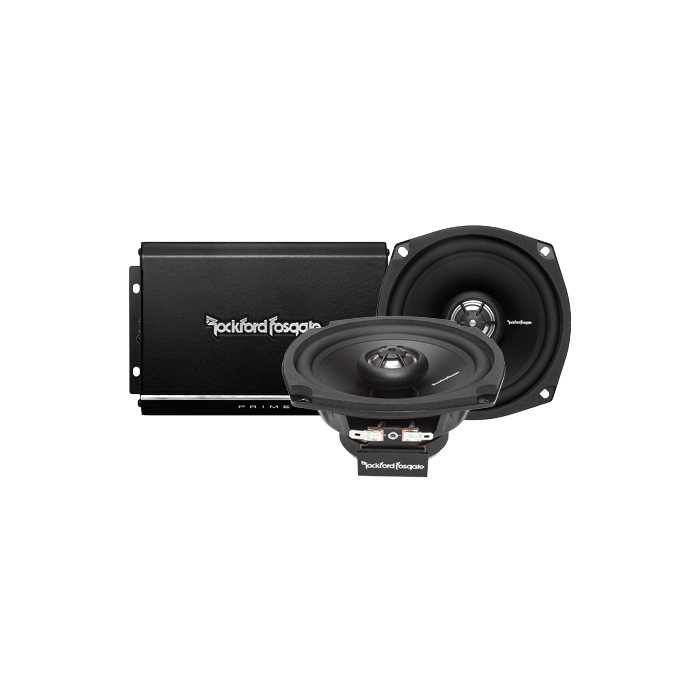

System Includes: 2-ch. Class-D Amp, Two 5.25" Speakers, Amp Mounting Bracket Power Harness, Input Harness, Output Harness, Screws, Zip Ties, Velcro Pad, Batwing Grille Badge Rockford Fosgate R1-HD2-9813 Prime 140 Watt 2-Channel Motorcycle System: Features:
4-channel 140 Watt speaker system
Fits 1998-2013 Harley-Davidson™ factory 2-speaker systems
Optimized EQ, crossover and gain
Three position output level control
Pass-Thru output for future system expansion
Extruded aluminium heat sink
Short circuit protection
Multiple mounting options
Includes all harnesses and hardware for full installation
Power Handling Max:
Power Handling RMS:
Signal Input: High Level: 4-pin harness
Signal Output: Pass -Thru: 4-pin harness
Power Input connector: 3-pin harness
Output Level Control: Selectable -3dB, 0db, +3dB
Frequency Response: 95Hz - 20 kHz +/-1dB
Nominal Impedance: 2-Ohm
Heat Sink Type: Extruded Aluminium
Circuit topology Class: Class D
Operating Voltage: 9-16 VDC
Average Current Draw: 7.5A
Speaker Diameter: 5.25" (133 mm)
Speaker Depth: 2.10” (53.3 mm)
