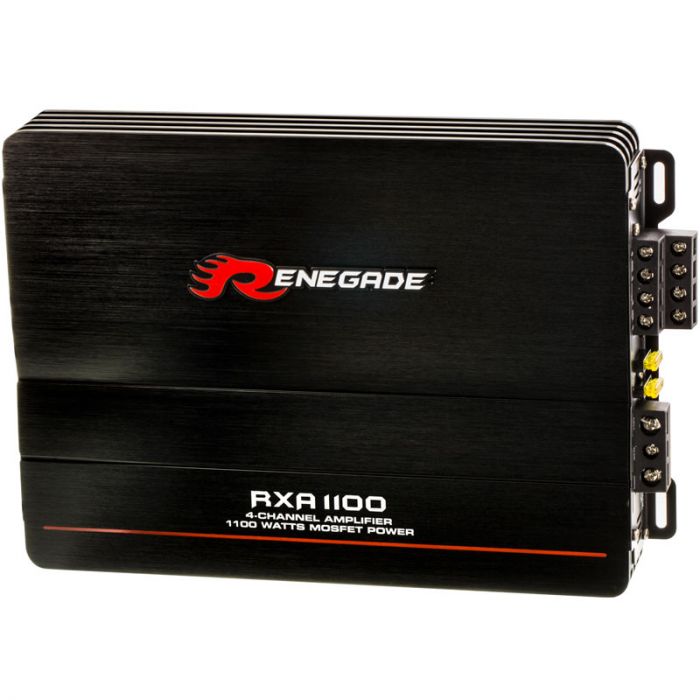

DISCONTINUED - Renegade RXA1100 4 Channel Amplifier - 1100 Watt Max
$100.99
Out of stock
SKU
RXA1100
Expert Knowledge
Talk to a specialist
- Renegade RXA1100 4 Channel Amplifier with 1100 Watt Maximum output
- 4 or 3 channel operation
- 4 Channel Stereo Operation @ 2 ohms delivering 135 watts to 4 Channel
- 3 Channel Bridged Operation @ 4 ohms delivering 275 watts to 1 Channel and 75 watts to 2 Channels
- 4 - Channel Low level RCA inputs
- 4 - Channel High level speaker inputs
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual
Renegade RXA1100 1100 Watt Max 4 Channel Amplifier
- Features:
- Renegade RXA1100 4 Channel Amplifier with 1100 Watt Maximum output
- 4 or 3 channel operation
- 4 Channel Stereo Operation @ 2 ohms delivering 135 watts to 4 Channel
- Mono bridgeable on channels 3 and 4 only
- 3 Channel Bridged Operation @ 4 ohms delivering 275 watts to 1 Channel and 75 watts to 2 Channels
- Full MOSFET power supply to ensure clean output and maximum power output
- 2 Ohm stable in 4 channel mode
- Frequency Response of 5 Hz - 40KHz, ± 3dB
- Total harmonic distortion: less than 0.5%
- Signal to noise ratio: > 90dB
- Input impedance: 10 kOhm
- Low Pass filter (Channel 3 and 4): Variable 50 - 200 Hz 12dB/octave
- High Pass filter (Channel 1/2 and 3/4): Variable 80 - 2 KHz 12dB/octave
- Variable Bass Boost: 40Hz - 0dB/+6dB/+12dB
- 4 - Channel Low level RCA inputs
- 4 - Channel High level speaker inputs
- Loop through RCA outputs
- Fuse rating: 2 x 20 amp
- RMS Power Output:
- 75 watts x 4 Channel (4 ohms)
- 135 watts x 4 Channel (2 ohms)
- 275 watts x 1 and 75 watts x 2 (4 ohms bridged)
- Max Power Output:
- 150 watts x 4 Channel (4 ohms)
- 275 watts x 4 Channel (2 ohms)
- Inputs and Outputs:
- High Level Input @ 250mV-10V
- Low Level Input @ 125mV-7V
- Dimensions:
- 1-7/8” H x 8-5/8” W x 13” L
- Warranty Duration:
- Basic Warranty: 1 year
| Manufacturer | Renegade by Rockford Fosgate |
|---|---|
| Part Number | RXA1100 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 100 mV - 8 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 8 Gauge |
| CEA2006 Compliant | No |
| Return period | 30 days |
| Exchange period | 30 days |
