Safesight SC0103 CCD Back Up Camera with 120 degrees Wide Angle and Night Vision

Safesight SC0103 CCD Back Up Camera with 120 degrees Wide Angle and Night Vision

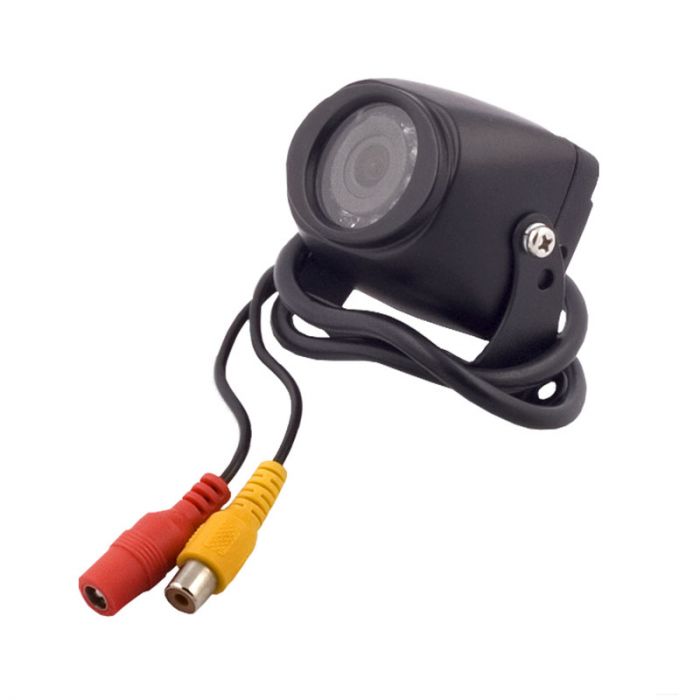

Safesight SC0103 Back-up camera - Main

More Views

Item sku:SC0103
Safesight

Overall Rating 4.3 (Based on 3 reviews)

Would you recommend this to a friend?

Write a review

Safesight SC0103 Product Highlights

  • Universal back-up camera designed for commercial and consumer vehicles
  • CCD image sensor
  • 120 degree wide angle
  • IR for NIght-vision
  • Adjustable Mounting Bracket

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: CCD back up camera and Instruction manual

Safesight SC0103 Commercial Grade CCD Back-up Camera
    Camera features:
  • 1/3" Sharp Color CCD image sensor for excellent color rendition, contrast, and resolution
  • 120 degrees wide angle camera
  • 12 - IR Infrared LED's for night vision that is capable of seeing in complete darkness
  • Weatherproof, Shockproof and High Temperature Resistance
  • Recommended for Light Duty Trucks, RVs and Delivery or Commercial Vans
  • Includes 60ft camera cable that carries power and video
    Camera inputs and Outputs
  • 1 - RCA video outputs
  • 1 - DC power input
    Camera Dimensions:
  • 2-1/2" (W) x 1-13/16" (H) x 1-13/16" (D)

Technical Specifications

Manufacturer Safesight
Part Number SC0103
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 2.96 mm
Viewing Angle 120 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC and PAL
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No

Customer Reviews

Great camera at a great price
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Excellent night vision camera and it's CCD at a great price. Love it thank you! (Posted on 5/16/2012)
Nice Product
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I installed this as a backup camera on my RV and it works nicely. The field of view is good. The picture is clear. It powers up quickly.

The video cable that connects to the monitor is about twice as long as I needed. In addition to the RCA style connection, there is a power-supply pigtale for connecting camera power at the same point (near the front of the vehicle) as the monitor. This would have been very practical, but the resistence in the long cable caused the power to drop below the point that would run the camera. Fortunately, I tested this at the outset of my installation process. A second power-supply pigtale is provided, and I used it to connect to the reversing light in one of the tail light assemblies. This configuration was sucessful, but it means that the camera operates only while backing up. It would have been nice to have a choice of using it as a rear-view mirror while driving.
(Posted on 11/12/2011)
A Great Rear View Camera
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
When installed camera did not have a mirror image. Because of time constraints I couldn't send it back so I went inside the monitor and rewired that for a mirror image. (Posted on 5/8/2011)

Write Your Own Review

You're reviewing: Safesight SC0103 CCD Back Up Camera with 120 degrees Wide Angle and Night Vision

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by William Allen, Tuesday, August 26, 2014

Question:

Does this camera have the grid lines for parking?

Answers:

  • Posted by Salvador Diaz on Tuesday, August 26, 2014
    A:

    No, this camera does not have the grid lines. Please give us a call at 800-363-0096 for further assitance.

    Thanks
